Accessories (overview)
Filters
Mains filters for regenerative power supply modules
8
566
EDS94SPP101 EN 10.2
Filters Mains filters for regenerative power supply modules
8.10.5 RFI filters for single−axis controllers E94AZRSxxxx (4 ... 29 A)
Assignment of filters to standard devices
RFI filter type Single−axis controller type Device size
E94AZRS0044
E94ASxE002x
1
E94ASxE003x
E94AZRS0104
E94ASxE004x
2
E94ASxE007x
E94AZRS0294
E94ASxE013x
3
E94ASxE017x
E94ASxE024x

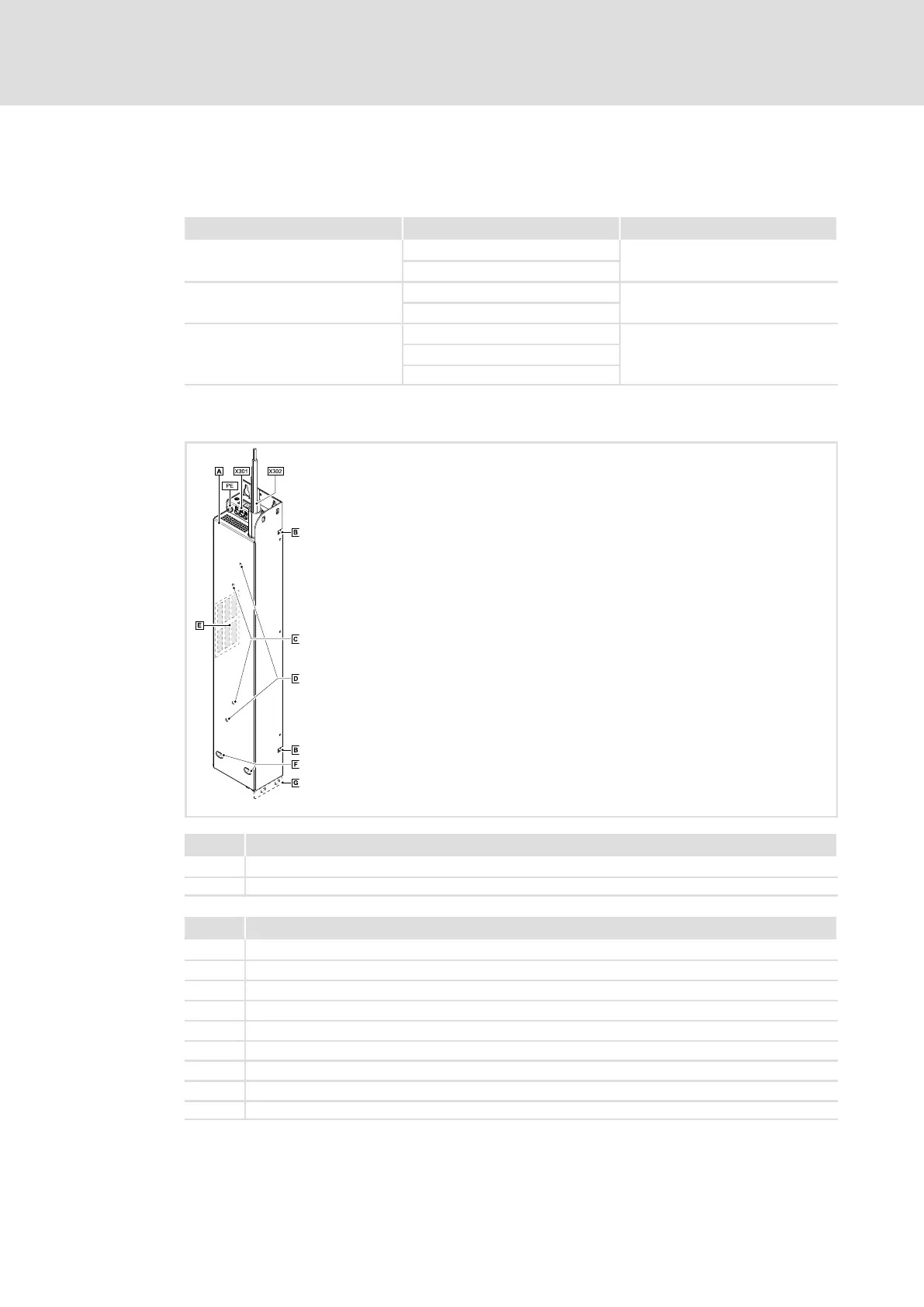

Elements on the filter
SSP94NF206
Pos. Description
RFI filter E94AZRSxxxx
Mounting Instructions
Pos. Description
PE PE connection (for M5 ring or fork−type cable lug)
X301 Mains terminal L1 ... L3
X302 Connection cable to controller, 4−core
Mounting aid for mounting base
Guide pins for mounting base
Mounting thread for mounting base
Nameplate
Fastening at the bottom
Angle bracket for "side−by−side" mounting variant, device sizes 2 and 3
