Power supply modules
Wiring
Devices in the range 100 ... 245 A (48 ... 119 kW)
5
276
EDS94SPP101 EN 10.2
5.6.5 Devices in the range 100 ... 245 A (48 ... 119 kW)
Example circuit
3
L3
N
PE
L1
L2
F1...F3
R
B
E94AxxExxxx
E94AZPxxxxx
X109
X110
Z1
E94APNExxx4
24E GE
X11
X109
X110
L1
L2
L3
X111
+UG -UG
L1
L2
L3
X112
Rb1 Rb2
K1
F4
K1
K1
O
I
R
B
J
+
-
-UG+UG
E94AZEX100
ð
F5...F6
S94PN100P21

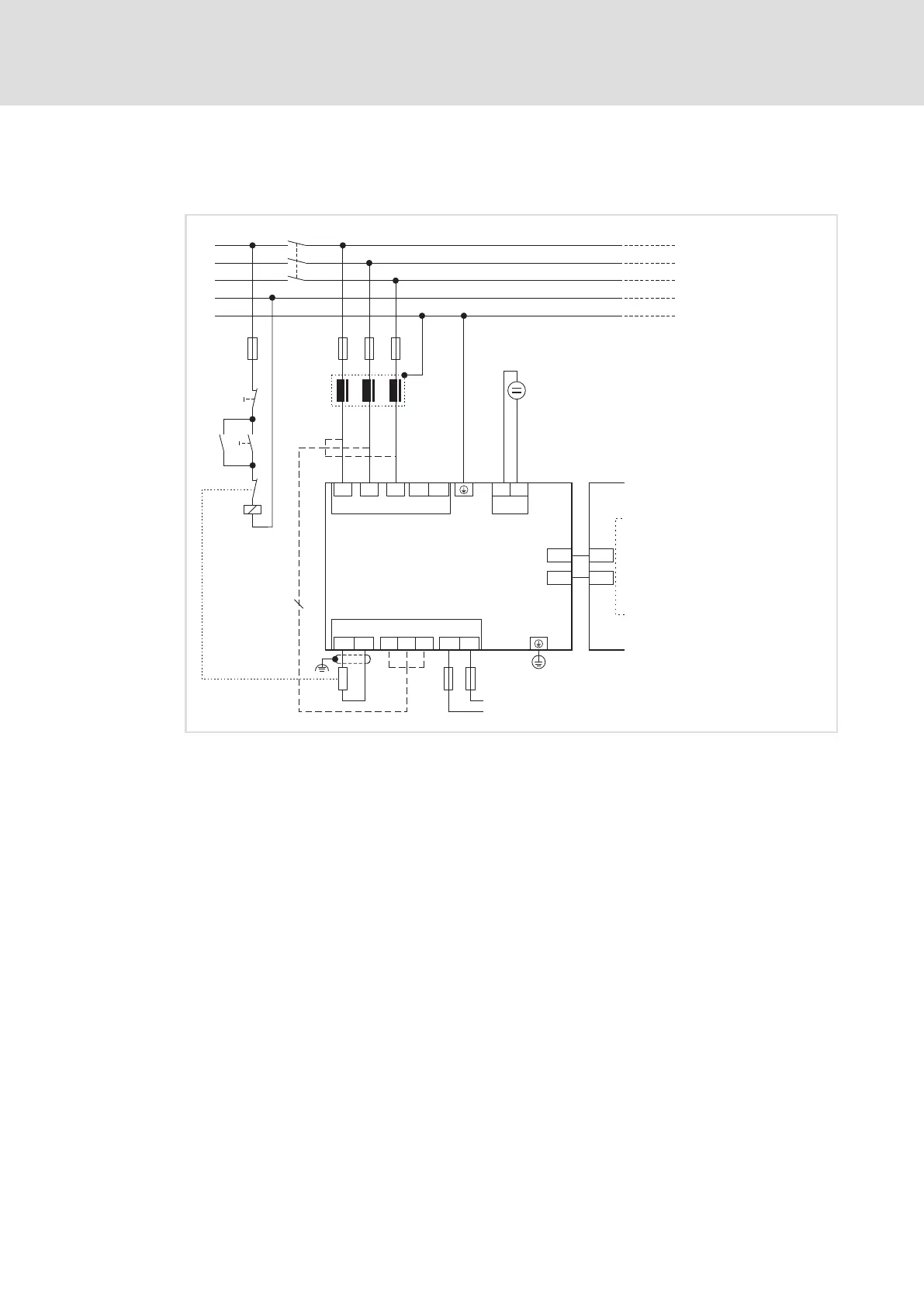

Fig. 5−7 Connection concept
E94APNExxx4 9400 DC power supply module
E94AZPxxxxx Installation backplane
E94AxxExxxx 9400 axis module
E94AZEX100 DC input module
F1 ... Fx Fuses
Z1 Mains filter/RFI filter (optional)
K1 Mains contactor
RB Brake resistor
Alternative: mains connection at the bottom
24 V supply voltage for control electronics according to IEC 61131−2
