Accessories (overview)
Filters
Mains filters for power supply modules
8
551
EDS94SPP101 EN 10.2
Filters Mains filters for power supply modules
8.10.3 Mains filters for power supply modules E94AZMPxxxx (82 ... 200 A)
Assignment of filters to standard devices
Mains filter DC power supply module
Type Device size Type Device size
E94AZMP0824 4 E94APNE1004 4
E94AZMP2004 5 E94APNE2454 5
E94AZMP0824 4 E70ACPSx0604x 2

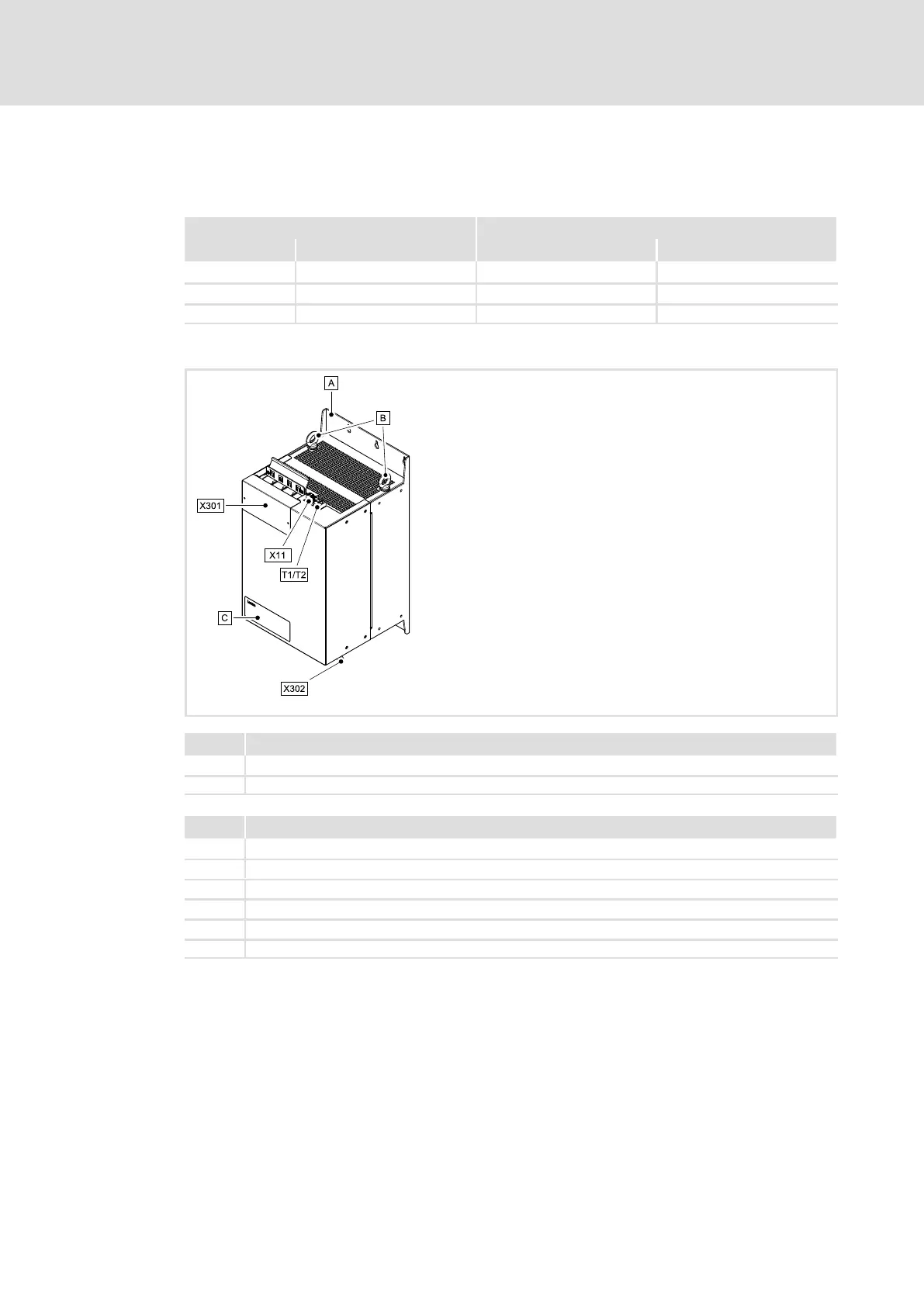

Elements on the filter
SSP94NF301
Pos. Description
Mains filter E94AZMPxxxx
Mounting Instructions
Pos. Description
X301 Mains connection for L1 ... L3 and PE
X302 Connection cables to DC power supply module L1’ ... L3’ and PE
X11 Voltage supply for internal fan (24 V DC)
T1/T2 Thermal contact terminals T1, T2
Ring bolts
Nameplate
