Accessories (overview)
Filters
Mains filters for power supply modules
8
559
EDS94SPP101 EN 10.2
Filters Mains filters for power supply modules
8.10.4 Mains filters for regenerative power supply modules E94AZMRxxxx (26 ... 47 A)
Assignment of filters to standard devices
Mains filter
Regenerative power supply module
Device size
Standard device Installation
backplane
E94AZMR0264SDB
E94AZMR0264LDB
E94ARNE0134
E94AZPP0364 GG3
E94AZMR0474SDB
E94AZMR0474LDB
E94ARNE0244

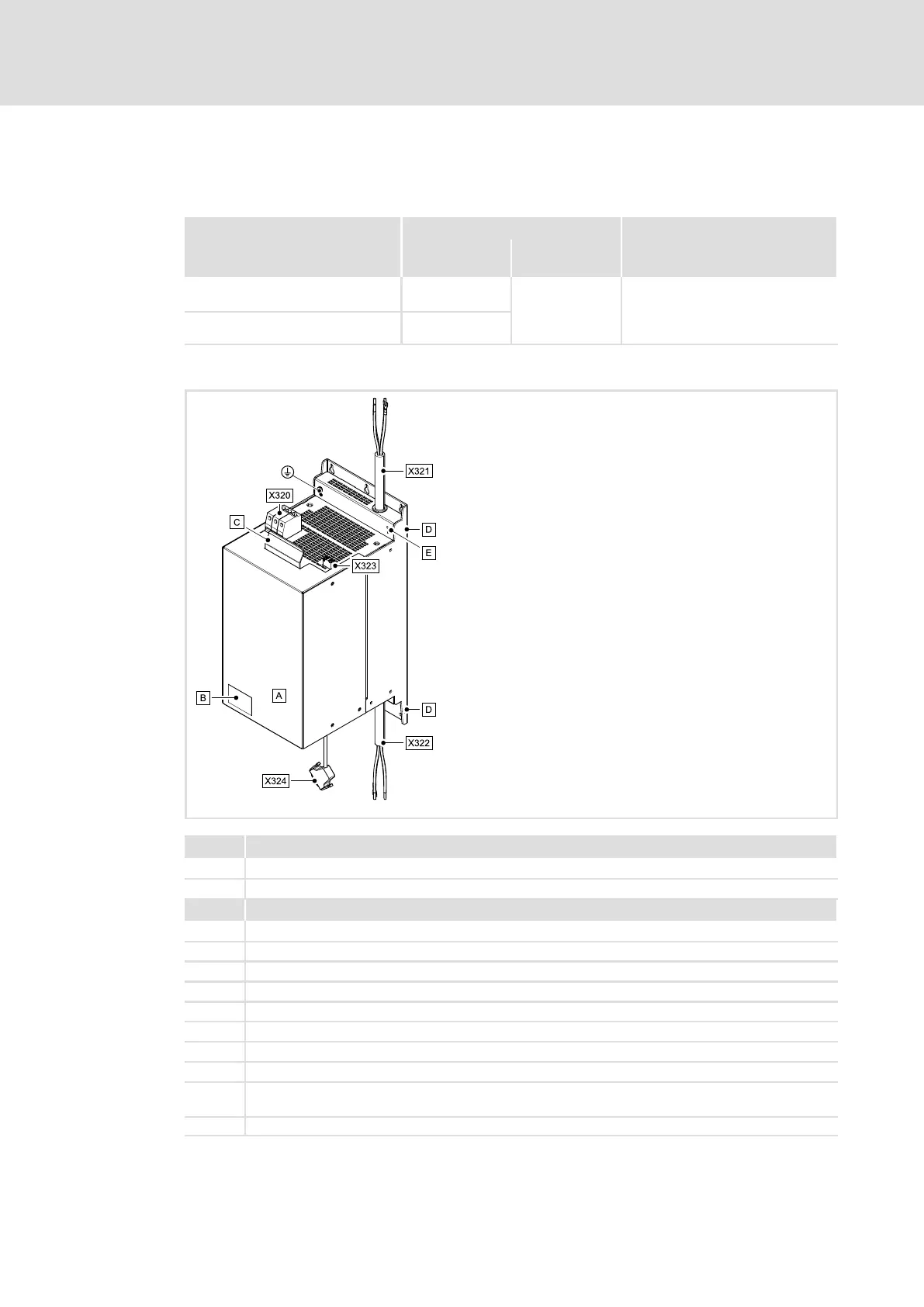

Elements on the filter
E94AZMR001
Pos. Description
Mains filter
Mounting Instructions
Pos. Description
Nameplate
Lifting aid
Mounting aid for mounting base
Parking position of the IT screw
PE terminal
X320 Terminal L1 ... L3
X321 Connecting cable L1.1 ... L3.1
X322 Connecting cable L1.2 ... L3.2
X323 Terminal for 24−V supply voltage (use safely separated power supply unit (SELV/PELV), in accordance
with IEC 61131−2)
X324 Mains filter control signal
