OPERATING CONTROLS AND INDICATORS TMS9000-2 OPERATOR MANUAL
3-98 Published 02-21-2019, Control # 611-05
Right control lever
Hoist high-speed mode on/off
Hoist Speed Range Selection
For dual axis joysticks use the following:
• Press and hold the thumb toggle switch to the side
towards the seat. High speed is on when pressed, turns
off when released.
• Press and release the thumb toggle switch away from
the seat. High speed status is toggled each time it is
pressed (on with 1st press, off with 2nd)
• Do a long press (about 2 seconds) when enabling hoist
with the armrest switches. High speed will be enabled.
Disabling hoist with the armrest switch disables high
speed.
• Do a double press when enabling hoist with the armrest
switches (within about 1 second). High speed will be
enabled. Disabling hoist with the armrest switch disables
high speed.
For single axis joysticks the last two procedures in the above
apply.
Hoist rotation indicator
The Hoist Rotation Indicators for the auxiliary and main hoist
are located on top of each hoist control lever (10, Figure 3-11
and Figure 3-12). Each indicator is electronically driven by
an input signal from a sensor attached to its related hoist and
an output signal from a control module. Each hoist control
lever (6) pulses when its hoist is running so the operator’s
thumb can sense it.
An indicator (Figure 3-128) on the CCS screen shows which
direction the hoist is operating.
CCS display
Main Hoist Enable
High speed mode for the hoist

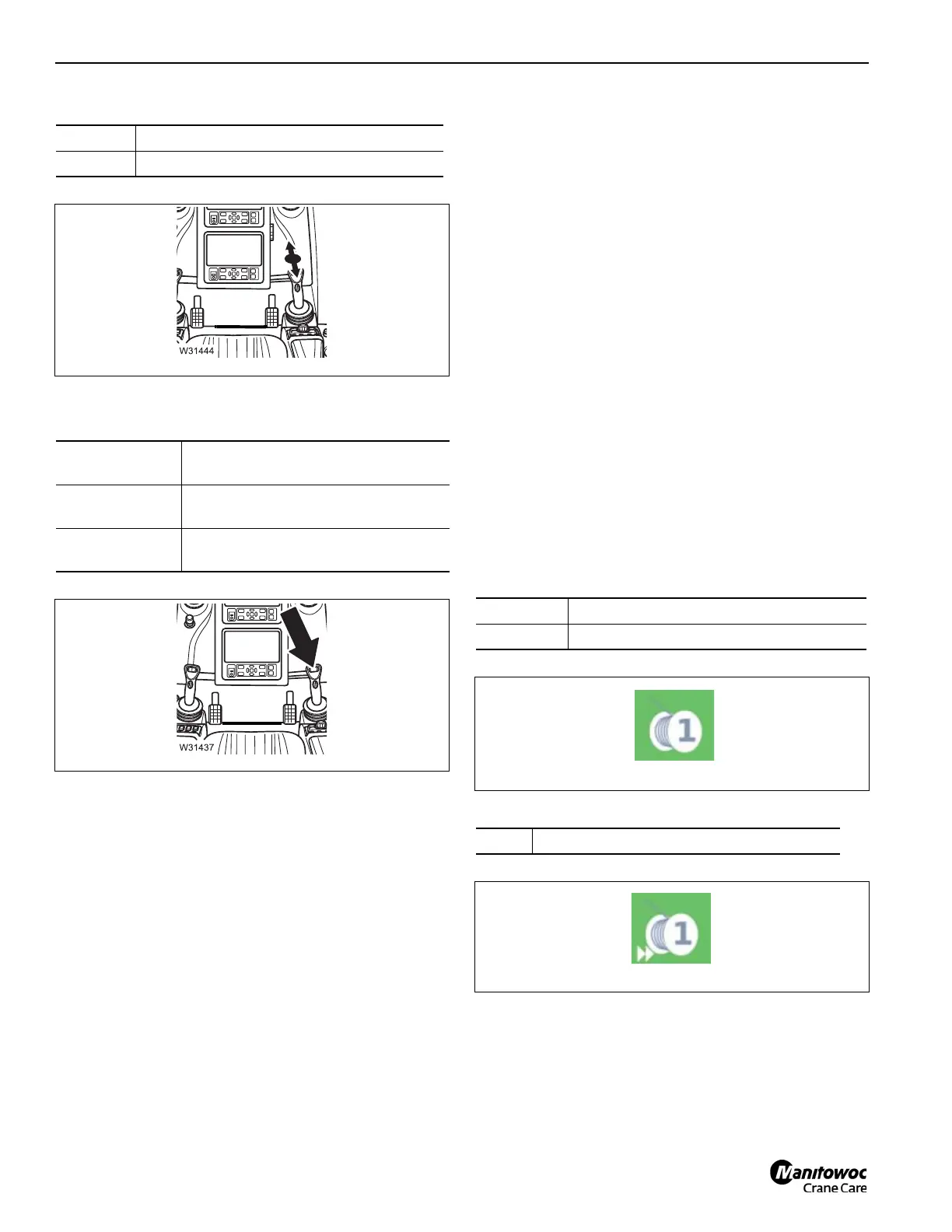

Back: Main hoist raise (Figure 3-124)
Forward: Main hoist lower
Left:
High-speed mode on, off when
released (Figure 3-125)
Once to the
right:
High-speed mode on – continuous
operation
Once to right or
once to left:
High-speed mode off
Green: Main hoist on (Figure 3-126)
Red: Main hoist off
On: High-speed mode on (Figure 3-127)
