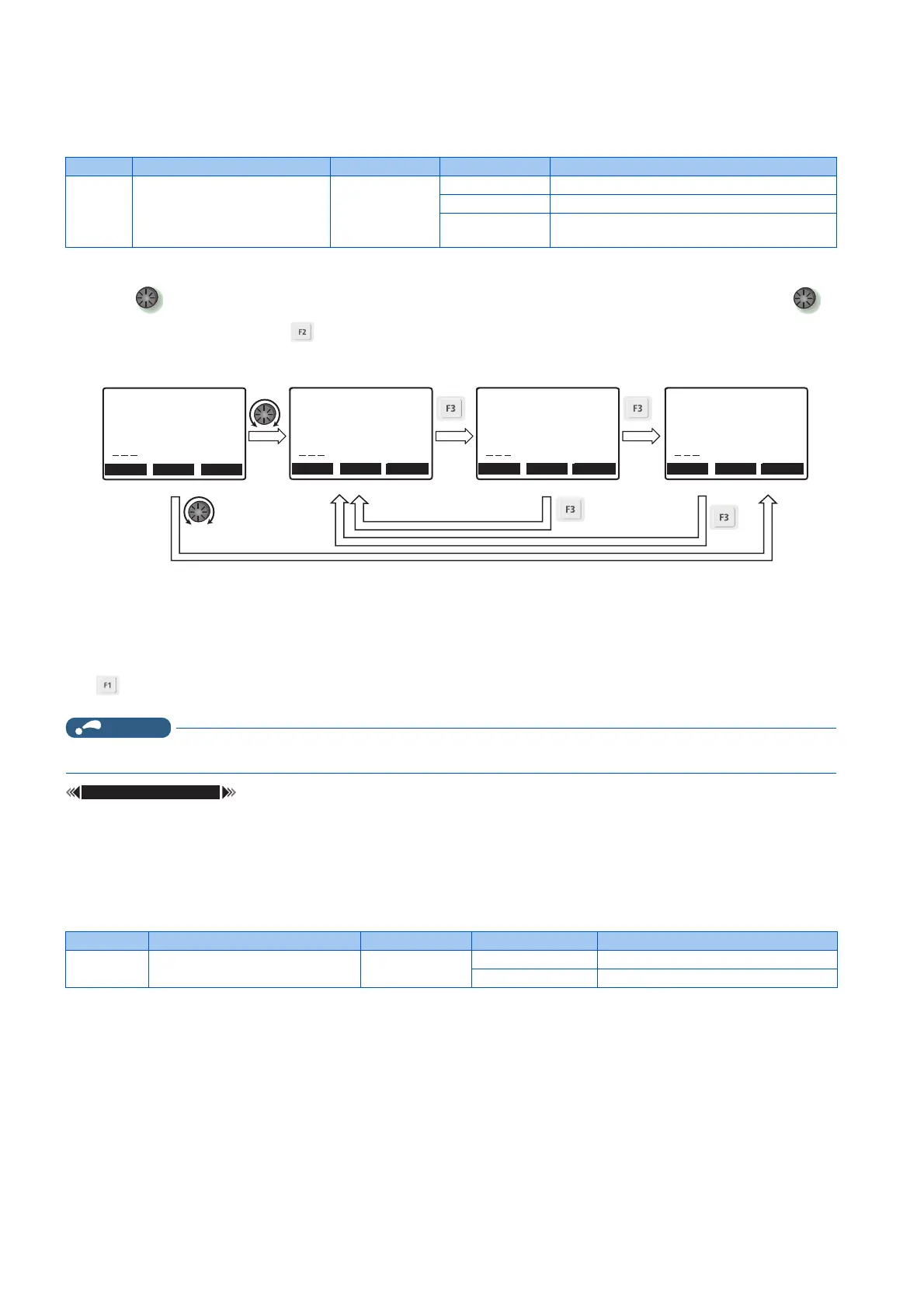

166
5. PARAMETERS
5.4 (E) Environment setting parameters
5.4.6 Direct setting
The PID action set point setting screen can be displayed quickly on the monitor.
• The monitor display can be switched from the Main monitor screen to the set point setting screen for the PID action by
simply operation, according to the setting of Pr.1000 Direct setting selection. On each setting screen, turn to
input a setting value, and press to confirm the setting.
*1 When Pr.1000="0"
*2 When Pr.1000="1"
*3 When Pr.1000="2"
*4 Not displayed when PID control is disabled (Pr.128="0").
*5 Indication of [NEXT] is not displayed when Pr.1000="0".
• To switch back the monitor display from the direct screen or the Frequency setting screen to the Main monitor screen, press
.
• For the availability of the direct setting for your operation panel, refer to your FR-LU08 Instruction Manual.
Pr.128 PID action selection page 396
5.4.7 Resetting USB host errors
When a USB device is connected to the USB connector (connector A), the USB host error can be canceled without performing
an inverter reset.
• Parameter copy and the trace function can be used when a USB device (such as a USB memory) is connected to the USB
connector (connector A). (Refer to page 67.)
• When a device such as a USB charger is connected to the USB connector and an excessive current (500 mA or higher)
flows, USB host error (UF warning) is displayed on the operation panel.
• If a UF warning occurs, disconnect the USB device and set Pr.1049="1" to cancel the USB error. (The UF warning can
also be canceled by resetting the inverter power or resetting with the RES signal.)
Pr. Name Initial value Setting range Description
1000
E108
Direct setting selection 0 0 Displays the Frequency setting screen.
1 Displays the direct (set point setting) screen.
2 Displays the direct (set point setting) screen and
the Frequency setting screen.
Pr. Name Initial value Setting range Description
1049
E110
USB host reset 0 0 Read only
1 Resets the USB host.
One of the Main monitor screen
Example of screen switching and shifting when the PID control is enabled (Pr.128 ≠ "0")
Direct #1 screen ∗4 Direct #2 screen ∗4 Frequency setting screen ∗5
(NEXT) (NEXT)
(NEXT)
∗3
(NEXT)
∗2
∗1
∗2,∗3 ∗2,∗3 ∗3
PREV SET NEXT
STOP PU
Hz
Output frequency
12: 34
0.00
NEXT
BACK SET NEXT
STOP PU
Frequency Setting
Pres value
Set value
0.00Hz
100.00Hz
10.0PSI
10.0PSI
NEXT
BACK SET NEXT
STOP PU
PID act set pnt
Pres value
Set value
10.0PSI
10.0PSI
NEXT
BACK SET NEXT
STOP PU
2ndPID set point
Pres value
Set value
To Next Page
