5.13 (G) Control parameters
5.13.8 Output stop function
The motor coasts to a stop (inverter output shutoff) when inverter output frequency falls to Pr. 522 setting or lower.
• When both of the frequency setting signal and output frequency falls to the frequency set in Pr. 522 or lower, the inverter
stops the output and the motor coasts to a stop.
• At a stop condition, the motor starts running when the frequency setting signal exceeds Pr.522 + 2 Hz. The motor is
accelerated at the Pr.13 Starting frequency (0.01 Hz under PM motor control) at the start.
*1 The output frequency before the slip compensation is compared with the Pr.522 setting.
*1 At a stop condition, the motor is accelerated at the Pr.13 Starting frequency (0.01 Hz under PM motor control).
*2 The output frequency to be compared with the Pr.522 setting is the output frequency before slip compensation (V/F control and Advanced
magnetic flux vector control), or the speed command value converted into the frequency (PM motor control).
*3 Steepness of the slope depends on the acceleration/deceleration time settings such as Pr.7.
Pr. Name Initial value Setting
range
Description
522
G105
Output stop frequency 9999 0 to 590 Hz Set the frequency to start coasting to a stop (output shutoff).
9999 No function
Output frequency∗1
Pr.522
Pr.13
STF
Time
Inverter output shutoff
RUN
Pr.522+2 Hz
Target frequency
(fixed)

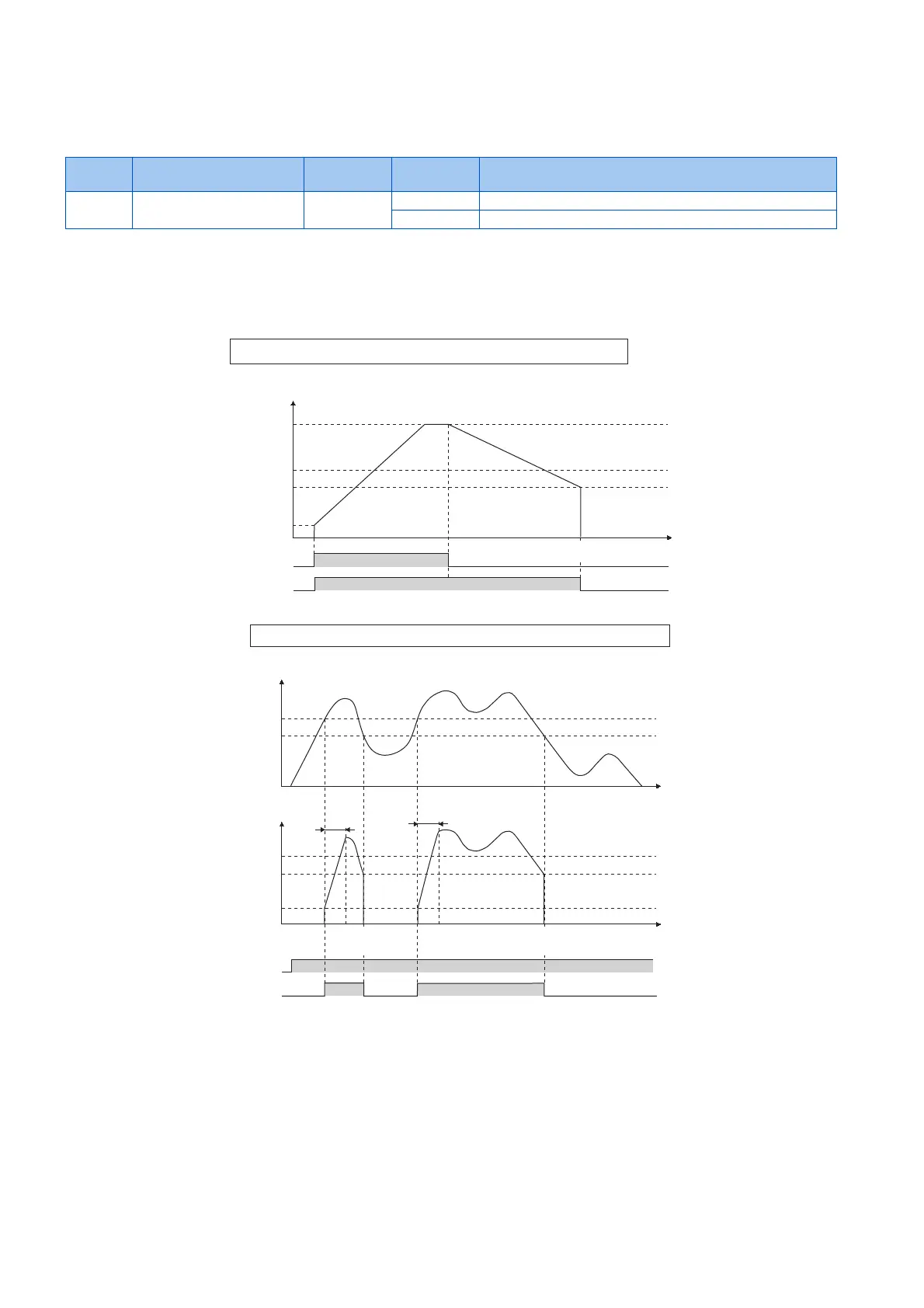

Example of when target frequency>Pr.522+2 Hz, and start signal is ON/OFF
Pr.522
Pr.13
STF
∗1
Output frequency
∗2
∗1
Time
RUN
Pr.522+2 Hz
Analog input command
Pr.522
Time
Pr.522+2 Hz
Inverter output
shutoff
Inverter output
shutoff
Example of: target frequency = analog input command, start signal always ON
∗3
∗3
