4. BASIC OPERATION
4.2 Basic operation procedure (PU operation)
4.2.4 Using an analog signal (current input) to give a frequency
command
• Use the operation panel ( or ) to give a start command.
• Use the outputs from the current signal source (4 to 20 mA) to give a frequency command (by connecting it
across terminals 4 and 5 (current input)).
• Turn ON the AU signal.
•Set Pr.79 Operation mode selection ="4" (External/PU combination operation mode 2).

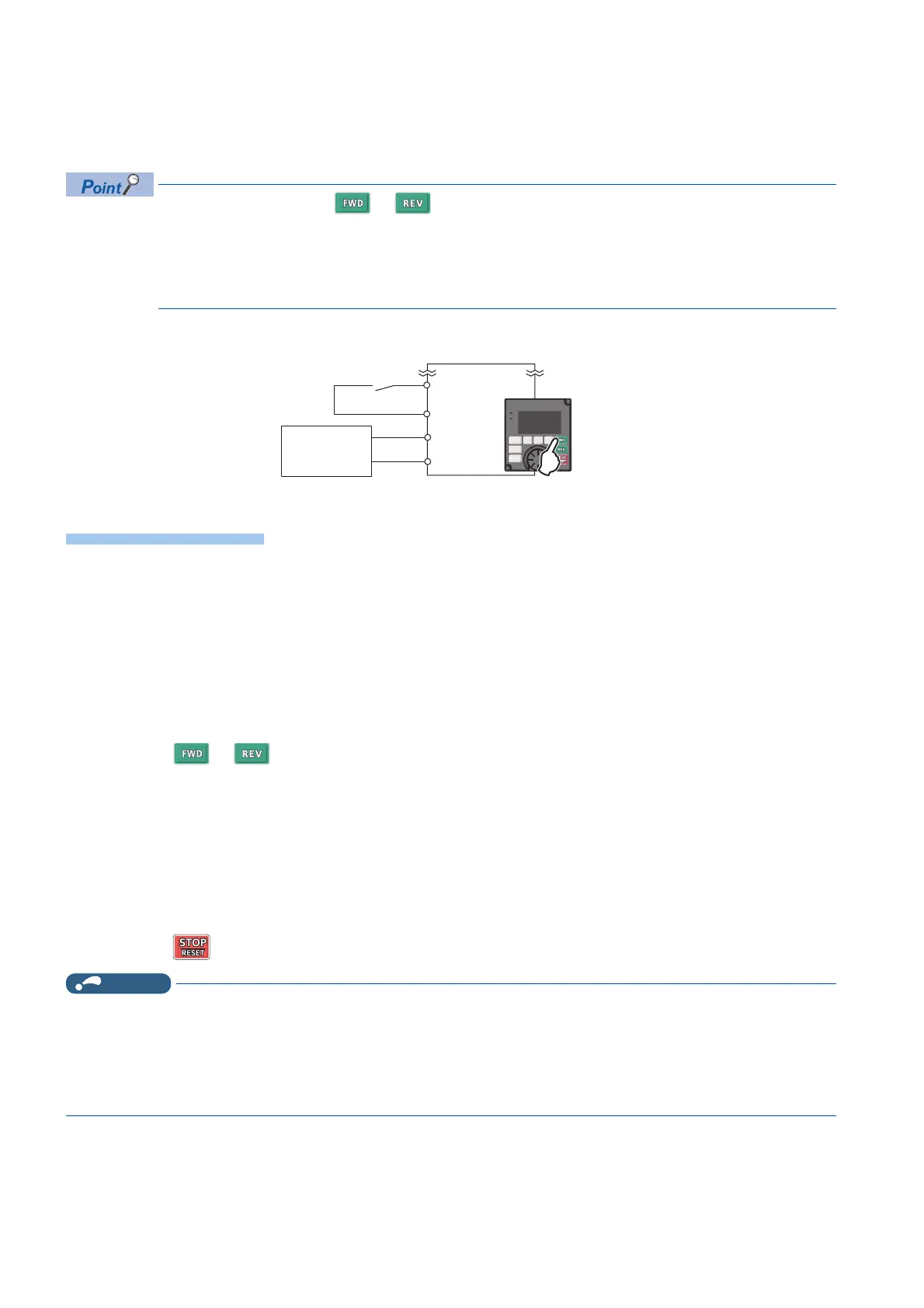

[Connection diagram]
The following shows the procedure to operate at 60 Hz.
1. Screen at power-ON
The monitor display appears.
2. Changing the operation mode
Set "4" in Pr.79. [PU+E] indicator is on.
3. Terminal 4 input selection
Turn ON the terminal 4 input selection signal (AU). Input to the terminal 4 is enabled.
4. Start
Press or . [FWD] or [REV] indicator is on.
5. Acceleration → constant speed
Input 20 mA. The frequency value on the indication increases in Pr.7 Acceleration time, and "60.00 Hz" appears.
6. Deceleration
Input 4 mA or less. The frequency value on the indication decreases in Pr.8 Deceleration time, and the motor stops
rotating with "0.00 Hz" displayed.
7. Stop
Press . [FWD] or [REV] indicator turns OFF.
• Pr.184 AU terminal function selection must be set to "4" (AU signal) (initial value).
• To change the frequency (60 Hz) at the maximum current input (initial value 20 mA), adjust Pr.126 Terminal 4 frequency
setting gain frequency.
• To change the frequency (0 Hz) at the minimum current input (initial value 4 mA), adjust the Pr.904 Terminal 4 frequency
setting bias frequency.
Inverter
Operation panel
Current signal
source
(4 to 20 mADC)
5(-)
4(+)
SD
AU
AU signal
