550
5. PARAMETERS
5.13 (G) Control parameters
5.13.9 Start signal operation selection / Stop selection
Select the stopping method (deceleration to stop or coasting) at turn-OFF of the start signal.
Use this function to stop a motor with a mechanical brake at turn-OFF of the start signal.
Selection of start signal (STF/STR) operation can also be selected.
*1 This setting value is valid only in External operation mode.
Stop selection
Make the motor perform deceleration stop
•Set Pr.250 = "9999 (initial value) or 8888".
• It will perform deceleration stop when the start signal (STF/STR) is turned OFF.
Make the motor perform coast to stop
• Set the time from the time the start signal is turned OFF to when the output is shutoff in Pr.250. When set to "1000 to 1100",
output is shutoff after (Pr.250 - 1000) s.
• The output is shutoff after the set time of Pr.250 has elapsed after the start signal is turned OFF. The motor will coast to
stop.
• The RUN signal will be turned OFF at the time of output stop.

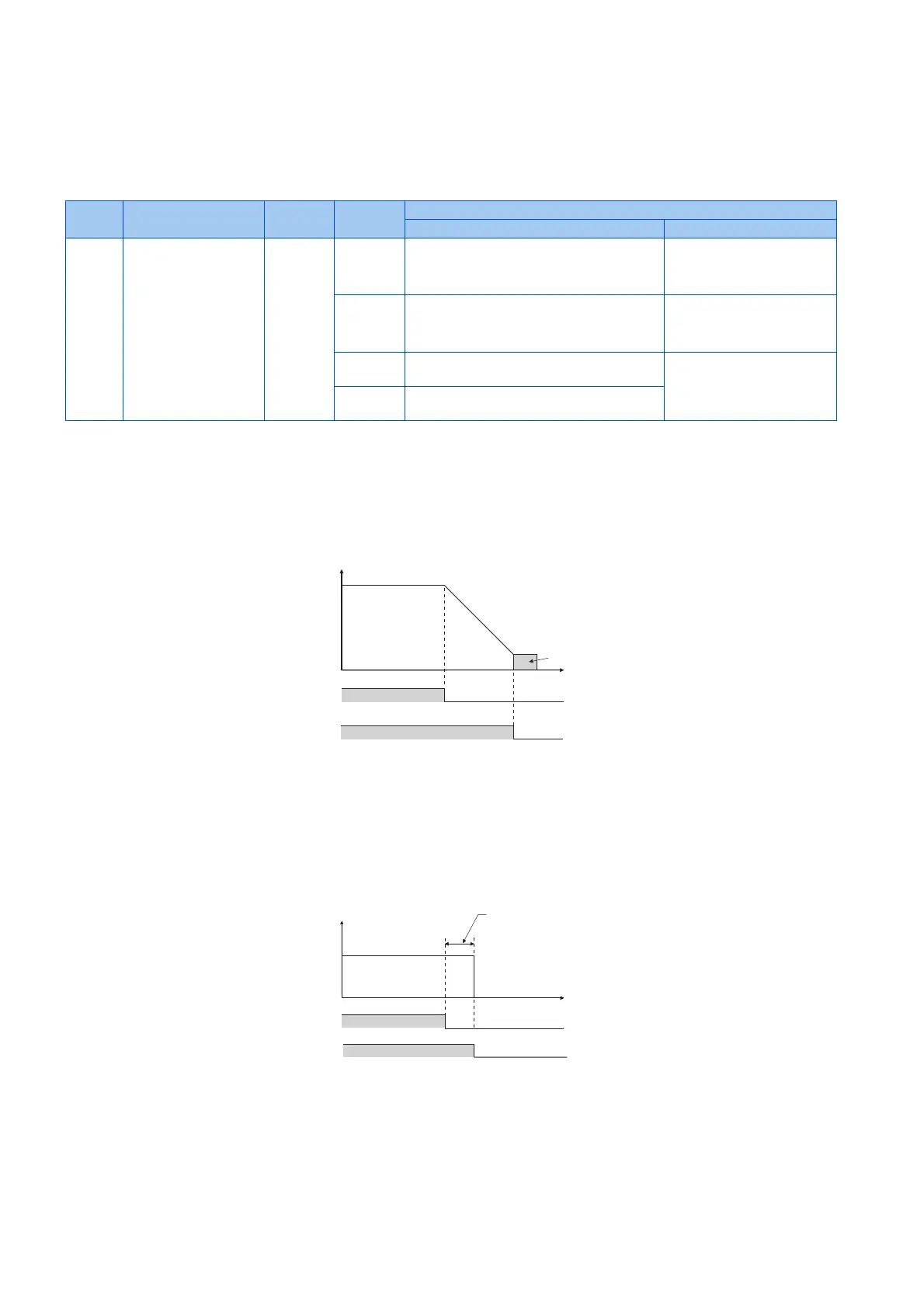

Pr. Name Initial
value
Setting
range
Description
Start signal (STF/STR) Stop operation
250
G106
Stop selection 9999 0 to 100 s STF signal: Forward rotation start
STR signal: Reverse rotation start
It will coast to stop after set
time when the start signal is
turned OFF.
1000 s to
1100 s
*1
STF signal: Start signal
STR signal: Forward/reverse rotation signal
It will coast to stop after
(Pr.250 - 1000) s when the
start signal is turned OFF.
9999 STF signal: Forward rotation start
STR signal: Reverse rotation start
It will perform deceleration
stop when the start signal is
turned OFF.
8888
*1
STF signal: Start signal
STR signal: Forward/reverse rotation signal
Time
ON
OFF
Start
signal
Deceleration starts
when start signal turns OFF
Deceleration time
(Time set in Pr.8, etc.)
DC brake
Output
frequency
(Hz)
ON
OFF
RUN
signal
OFF
ON
Start signal
Output is shut off when
set time elapses after
start signal turns OFF
Pr.250
Motor coasts to stop
Time
O
FF
RUN signal
Output
frequency
(Hz)
ON
