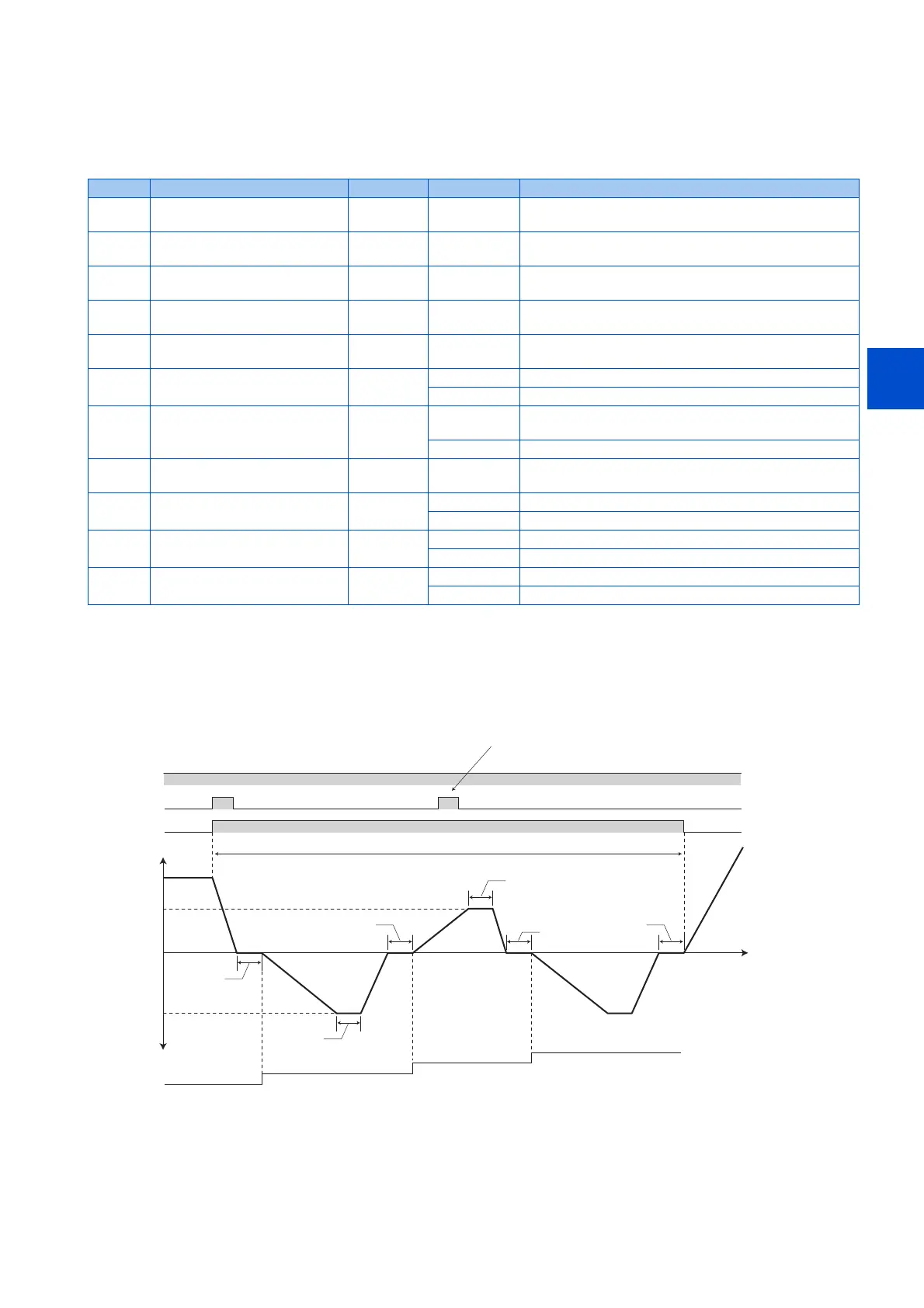

5.11.5 Cleaning function
This is a function to remove stains or foreign matter on the impellers or fans of pumps by setting a forward/reverse rotation
sequence.
Outline of the cleaning operation
• Setting a number in Pr.1470 Number of cleaning times setting enables the cleaning function.
• The cleaning operation is started when the trigger set in Pr.1471 or Pr.1479 occurs, or when X98 signal turns ON. When
the cleaning is started initially, the operation in the opposite direction to the start command is performed.
• When the number of times of cleaning operation is an odd number, the operation in the opposite direction to the start
command is performed. When the number of cleaning times is an even number, the operation in the start command
direction is performed.
Pr. Name Initial value Setting range Description
1469
A420
Number of cleaning times
monitor
0 0 to 255 Displays the number of cleaning times. (Read-only)
1470
A421
Number of cleaning times
setting
0 0 to 255 Set the number of cleaning times.
1471
A422
Cleaning trigger selection 0 0 to 15 Select the condition to start cleaning.
1472
A423
Cleaning reverse rotation
frequency
30 Hz 0 to 590 Hz Set the reverse rotation frequency for cleaning operation.
1473
A424
Cleaning reverse rotation
operation time
5 s 0 to 3600 s Set the operating time after the cleaning reverse rotation
frequency is reached.
1474
A425
Cleaning forward rotation
frequency
9999 0 to 590 Hz Set the forward rotation frequency for cleaning operation.
9999 As set in Pr.1472.
1475
A426
Cleaning forward rotation
operation time
9999 0 to 3600 s Set the operating time after the cleaning forward rotation
frequency is reached.
9999 As set in Pr.1473.
1476
A427
Cleaning stop time 5 s 0 to 3600 s Set the stop time when the rotation is switched from forward
to reverse or from reverse to forward.
1477
A428
Cleaning acceleration time 9999 0 to 3600 s Set the acceleration time during cleaning.
9999 Acceleration time for normal operation
1478
A429
Cleaning deceleration time 9999 0 to 3600 s Set the deceleration time during cleaning.
9999 Deceleration time for normal operation
1479
A430
Cleaning time trigger 0 0 Time trigger disabled
0.1 to 6000 h Cleaning is performed at a set time interval.
Trigger
Y215
STF
ON
Normal
operation
Cleaning operation
Pr.7
Pr.1478Pr.1477
ON
OFF
Time
Pr.1476
Pr.1473
Pr.1474
Pr.1472
0 Hz
Pr.1475
Pr.8
Pr.1477 Pr.1478
ON
Output
frequency
0
1
2
3
Pr.1476
The cleaning operation is
terminated when the number of
cleaning operation times reaches
the Pr.1470 setting.
Pr.1469
ON
Pr.1476
Pr.1476
A trigger generated during the
cleaning operation does not affect the
operation.
