Mitsubishi GOT2000 Series User Manual

4.6 Drawing Check
4 - 15
4
MAINTENANCE
4.6.3 Drawing check operation
The screen for drawing check can be displayed by touching [Drawing check] on the Display check menu.

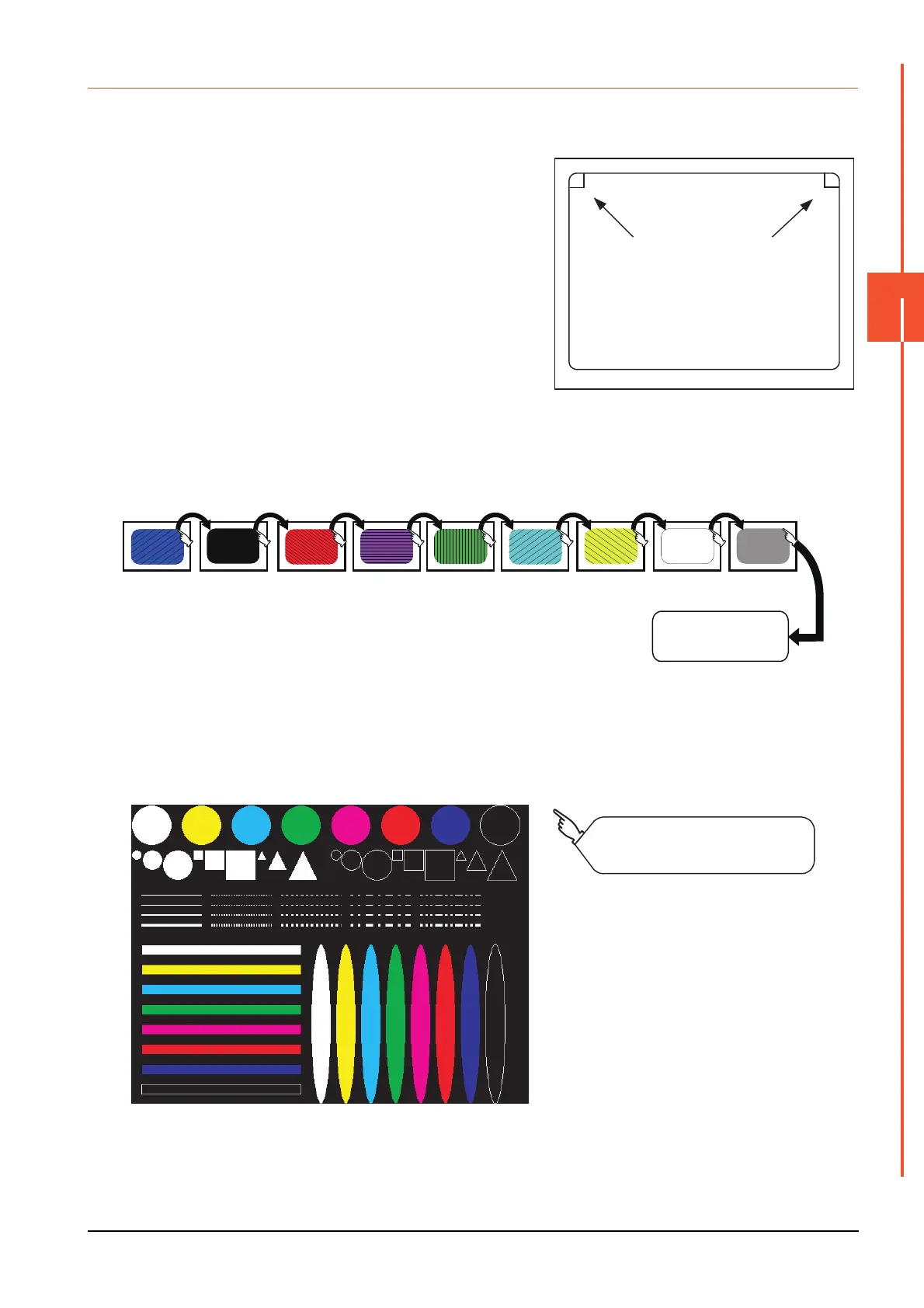

■1. Before execute drawing check
Touching the upper right part of the screen proceeds to the next
check in each step during drawing check.
Touching the upper left part of the screen returns to the [Display
check] screen.
(1) Missing bit, Color Check
Each touch of the upper-right part of the screen, the entire screen color changes in the following order: blue, black,
red, purple, green, light blue, yellow, white, and gray.
Check missing bit and color visually.
If touch the upper right part of the screen at the final color (white screen), the following 2) Basic figure check screen
is displayed.
(2) Basic figure check
Check whether there is no shape transformation of basic figure or display losses.
The basic figure drawn has 4 types: 1. Filled circle, 2. Line, 3. Rectangle, 4. Ellipse.
Upper-left touch
position
Upper-right touch
position
Black Red Purple Green Light blue Yellow White Gray Blue
To (b) Basic
figurecheck screen
To Pattern 1 of (c) Move check
among screen
