14.1 Time Setting and Display
14.1.3 Clock setting operations
(1) Time setting
Setup the method to adjust the time between GOT data and the clock data of controller connected to the GOT.
*1 GT2103 cannot be specified.
(1) When connecting to an external device which does not have clock function
If set to [Adjust] or [Broadcast] for clock setting while the GOT is connected to external
devices (PLC or microcomputers) which do not have clock function, the clock data will not be
adjusted.
Refer to the following for the list of PLC installed with clock function.
âž GOT2000 Series Connection Manual for the controller used
âž GT Designer3 (GOT2000) Help
(2) Clock setting when using the multi-channel function
The channel No. of a controller whose clock is used as a base or adjusted cannot be set by
the utility.
The controller whose clock is used as a base or adjusted can be set by GT Designer3.
For channel settings, refer to the following.
âž GOT2000 Series Connection Manual for the controller used
âž GT Designer3 (GOT2000) Help
(3) Setting of clock setting and battery
When selecting [Broadcast] or [None] in clock setting, set the clock of the GOT once with
connecting a battery to the GOT.
(4) Operation setting by GT Designer3
Set the clock management at [GOT set up] in [Environmental Setting] of GT Designer3.

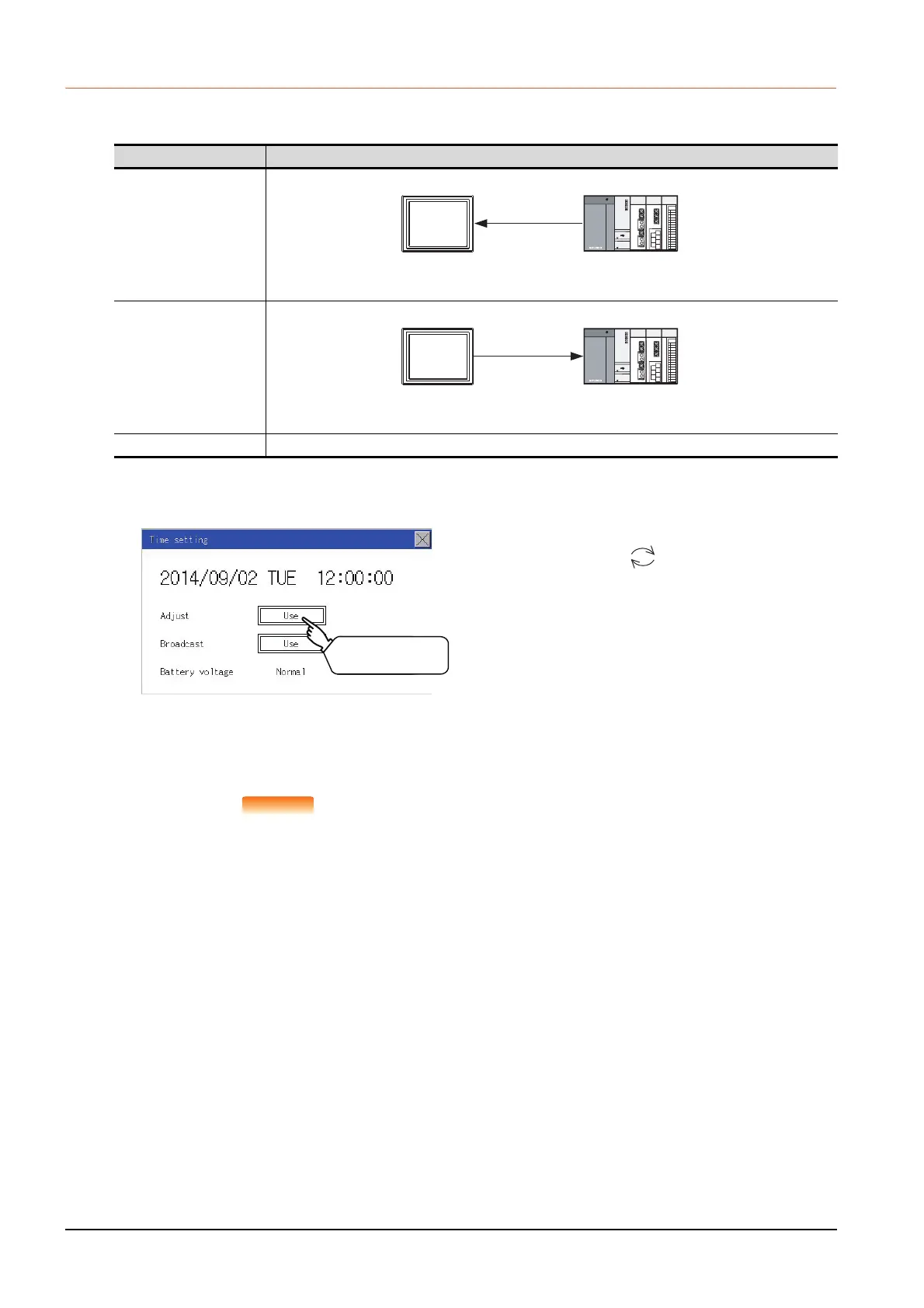

Setting Description
Adjust
Synchronizes the clock data of the GOT with the clock data of the controller.
It is same as set in the GOT setup in Environmental Setting of GT Designer3.
âž GT Designer3 (GOT2000) Help
Broadcast
*1
Synchronizes the clock data of the controller with the clock data of the GOT.
It is same as set in the GOT setup in Environmental Setting of GT Designer3.
âž GT Designer3 (GOT2000) Help3
None No adjustment of clock data.
Step 1. Touch a setting item to change the
setting.
[Use] [Disuse]
Step 2. After changing the settings, touch the
[×] button to save the changes and
close the setting window.
Touch the item
to be changed.
