16.2 FX List Editor (GT2104-R only)
16.2.9 Searching commands/devices
Displays a command or device by searching it in sequence program from Step 0.

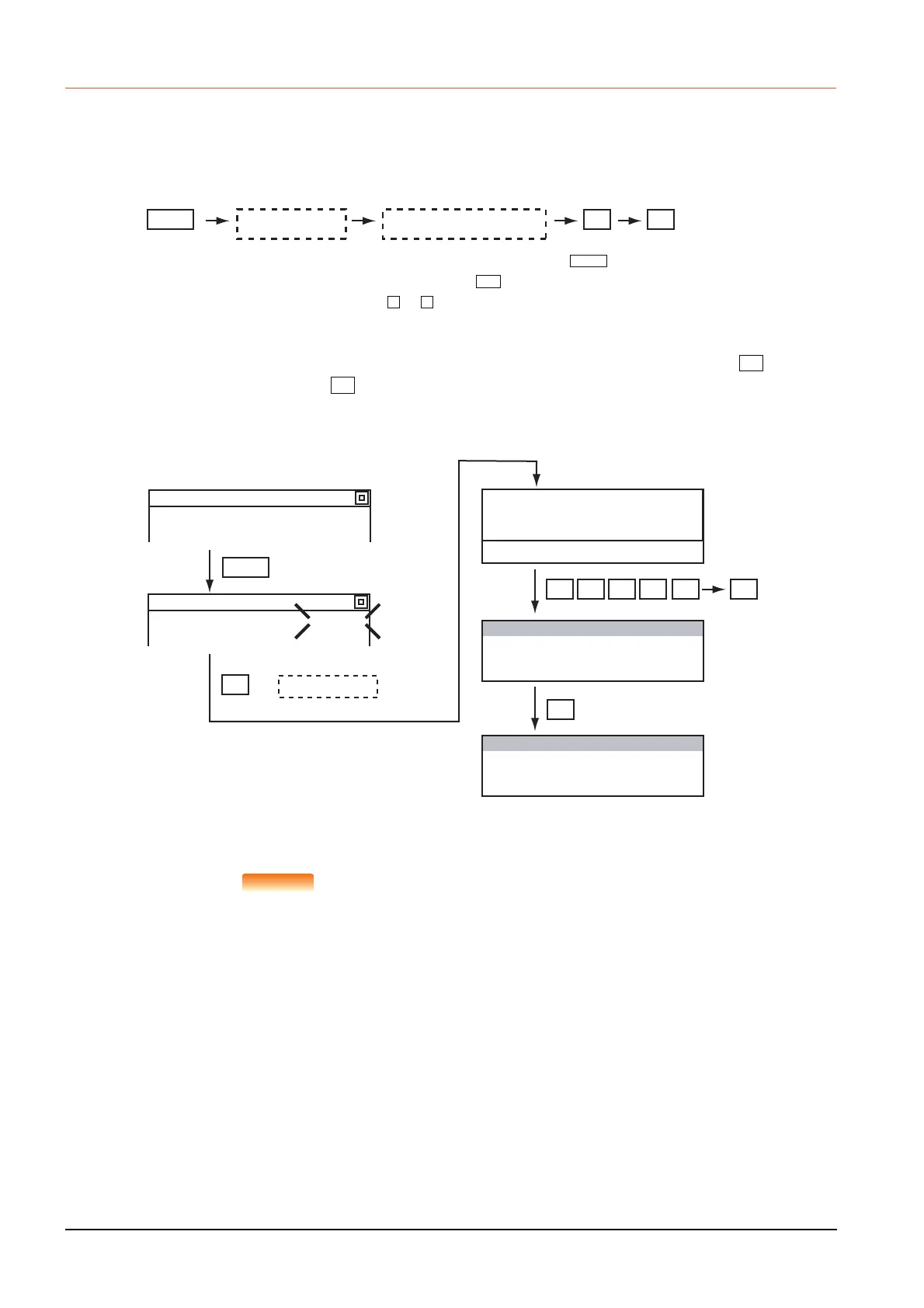

■1. Command search
(1) Operation
*1 If the command you want to search for is not on the keyboard, touch the key to switch to the other keyboard.
When searching for an applied instruction, touch the key and input the applied instruction number.
When searching for a label, touch or and input the pointer number.
➠ 16.2.10 Writing commands
*2 Input only when searching for commands requiring a device name and device number.
*3 After the search results are displayed, you can continue searching with the same conditions by touching the key. Touching
any key other than the key ends the search.
(2) Example
Searching for LD M8000
POINTPOINTPOINT
Pointer (P, I) searches
For pointer searches, only labels are searched.
Pointers specified as operands in applied instructions are not searched.
MODE
(Read mode)
*1 *2 *3
Select the command
to search for.
Input the device name and
device number.
GO GO
MORE
FNC
P
I
GO
GO
M800 0 GO
GO
(Continue to search with the
same conditions)
MODE
LD
< WRITE >
< READ >
Search command
Select the command
to search for.
( )
Set the
READ mode.
3 MOV 12
8 LD M 8000
9 OUT T 10
K 100
12 LD X 002
24 LD M 8000
25 OUT T 0
K 100
28 OUT T 1
LD
