3.2.1) Assembly of guide supplied with SPIN10KCE

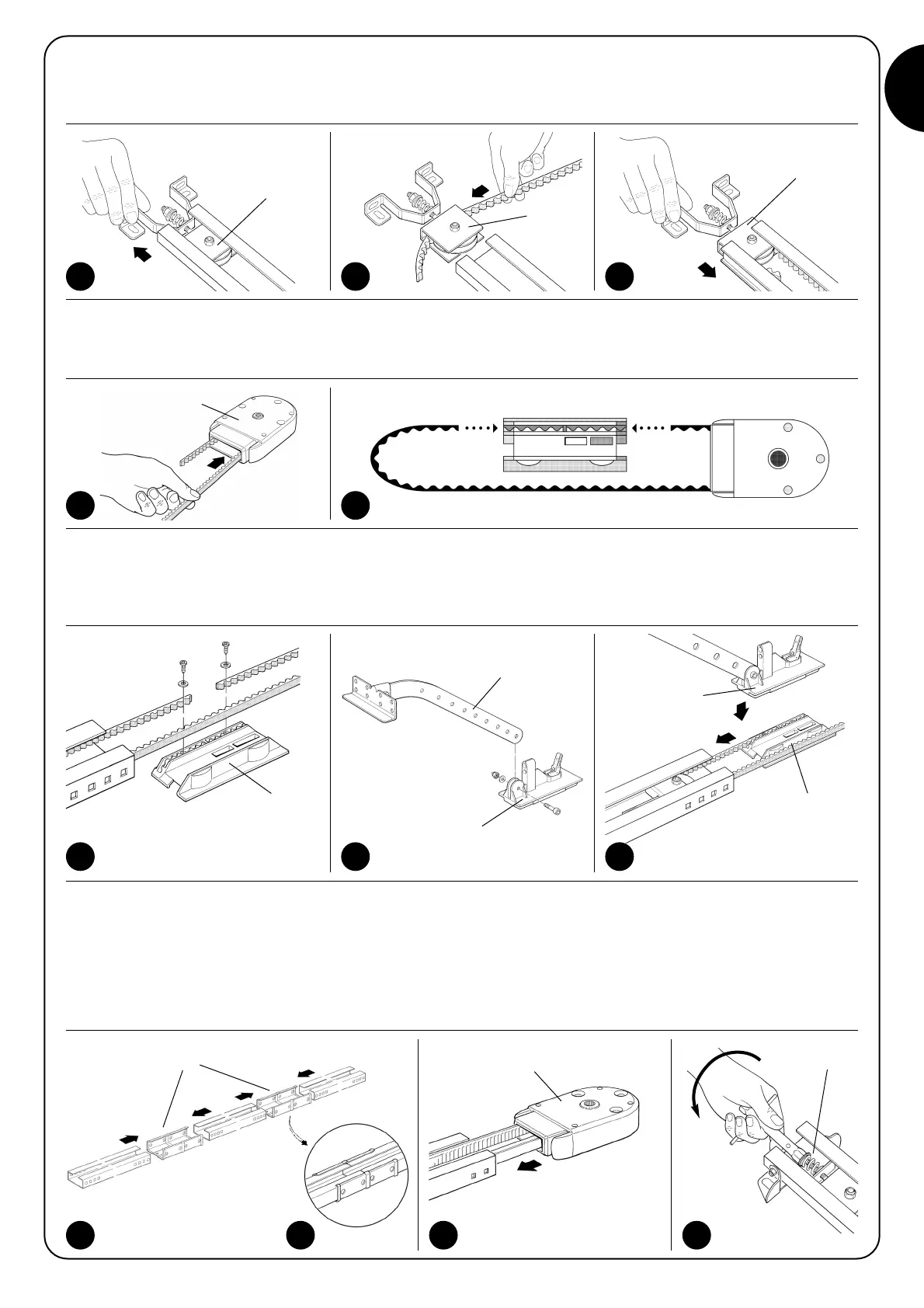

The guide that is supplied with SPIN10KCE must be assembled as follows:
1. Referring to figure 8, remove the belt tensioner device (8a); insert one end of the belt into the pulley (8b); reintroduce the belt tensioner
device into the guide (8c).
4. Position both ends of the belt into all of the shaped slots of the lower carriage (C). Secure the ends of the belt with the 2 screws (V4.2x9.5)
and 2 washers (R05), as in figure 11.
5. Fix the belt guide (D) to the upper carriage (E) with the V6x18 screw and related M6 nut, as in figure 12.
6. Insert the upper carriage (E)into the lower carriage (C) and place the entire carriage assembly inside the guide, as in figure 13.
7. With the aid of a hammer, assemble the three pieces of the guide engaging them into the connection brackets (F) with force, as in fig-
ures 14 and 15.
Important: the guides must slide into the brackets until they click into position.
8. Carefully position the belt into the guide, making sure that it is not twisted.
9. Fix the head (B) into the free end of the guide with force, as in figure 16.
10.Finally, tension the belt with the adjustment screw (H) of the belt tensioner device, as in figure 17.
Warning: the gearmotor could break if the belt is too taut and if it is too slack, it could cause unpleasant noise.
11 12 13
C
14 16 17
H
D
E
E
C
8A 8B 8C
10
A
B
9
A
A
2. Pass the same end of the belt through the head (B), as in figure 9.
Note: Make sure that the belt is correctly positioned: it must be with the teeth facing inwards, straight and without twists.
3. Turn the lower section of the carriage so that the grooves correspond with the two ends of the belt, as in figure 10.
F
15
