îš‹ Quick Programming Mode
In quick programming mode the basic parameters required for the elevator operation like speeds, acceleration/
deceleration times etc. can be monitored and set.
The parameters can be changed from the setting displays. Use the Increment, Decrement, and Shift/RESET
keys to change the frequency. The parameter is written and the display returns to the monitor display when the
DATA/ENTER key is pressed.
Refer to page 5-4, User Parameters Available in Quick Programming Mode for details.
îš„Example Operations

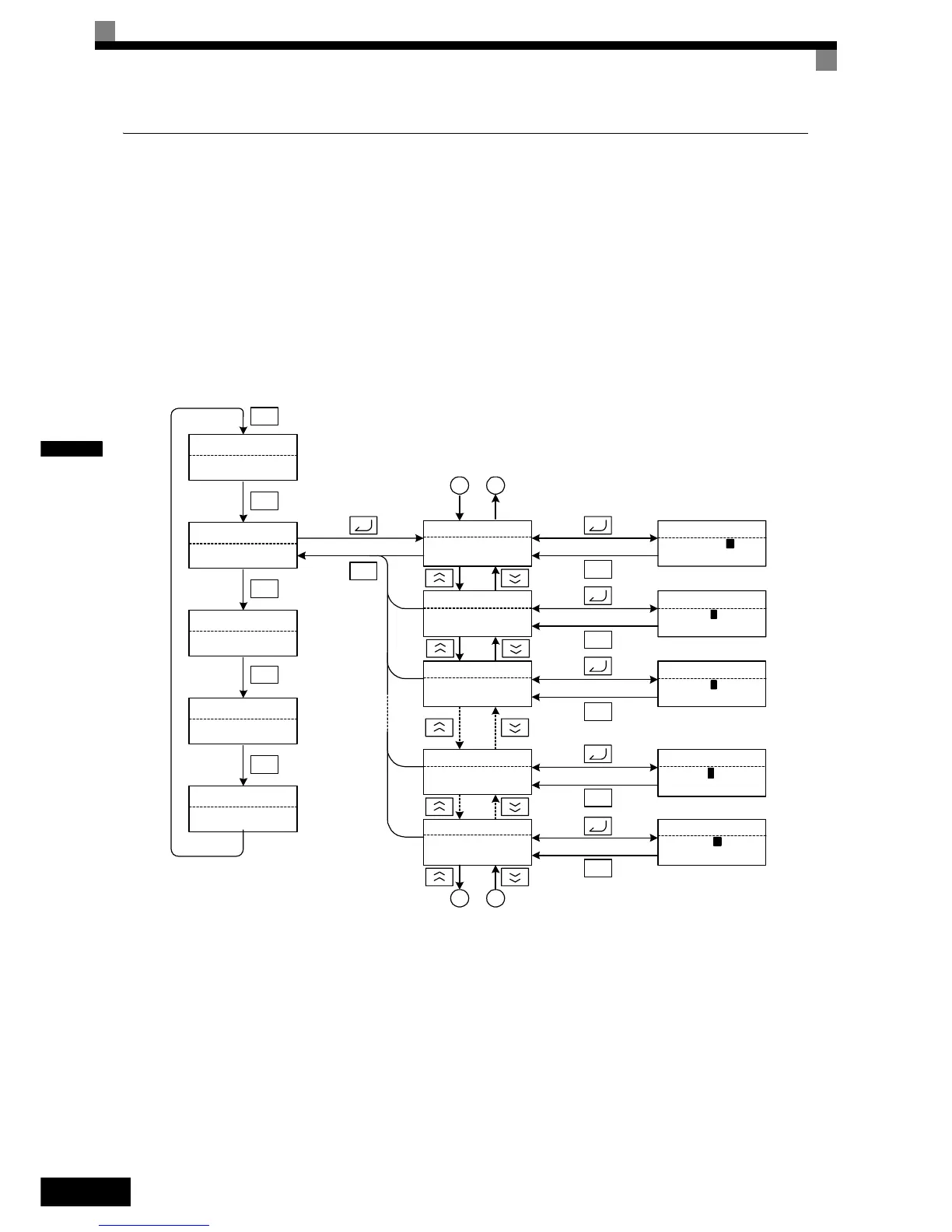

Example key operations in quick programming mode are shown in the following figure.
Fig 3.6 Operations in Quick Programming Mode
** Main Menu **
-
DRIVE-
Operation
** Main Menu **
-QUICK-
Quick Setting
** Main Menu **
-
ADV-
Programming
** Main Menu **
-VERIFY-
Modified Consts
** Main Menu **
-A.TUNE-
Auto-Tuning
Control Method
-QUICK-
A1-02 = 0
*0*
V/f Control
Accel Time 1
-QUICK-
C1-01 = 1.50sec
-QUICK-
Monitor Display
Setting Display
Mode Selection Display
MOL Fault Select
-QUICK-
L1-01=1
*1*
Std Fan Cooled
Mtr Rated Power
-QUICK-
E2-11 = 4.00kW
A B
A B
-QUICK-
E2-11 =
004.00kW
MENU
MENU
MENU
MENU
MENU
ESC
ESC
ESC
ESC
ESC
ESC
(0.00 ~ 650.00)
"4.00kW"
(0.00 ~ 650.00)
"4.00kW"
Mtr Rated Power
"1"
MOL Fault Select
-QUICK-
L1-01 = 1
*1*
Std Fan Cooled
"1"
"0"
Control Method
-QUICK-
A1-02 = 0
*0*
V/f Control
"0"
"1.50"
-QUICK-
(0.00 ~ 600.00)
Decel Time 1
C1-02 = 1.50sec
"1.50"
(0.00 ~ 600.00)
Accel Time 1
C1-01 =001.50sec
"1.50"
(0.00 ~ 600.00)
-QUICK-
Decel Time 1
C1-02 =001.50sec
"1.50"
(0.00 ~ 600.00)
To Next Page
