Omron VARISPEED L7 User Manual

3-11
3
 Verify Mode
The Verify mode is used to display the parameters that have been changed from their default settings, either by
programming or by autotuning. “None” will be displayed if no settings have been changed.
The parameter A1-02 is the only parameter from the A1- group, which will be displayed in the modified
constant list if it has been changed before. The other parameters will not be displayed, even if they are differ-
ent from the default setting.
In the verify mode, the same procedures as used in the programming mode can be used to change settings. Use
the Increment, Decrement, and Shift/RESET keys to change a setting. When the DATA/ENTER key is pressed
the parameter setting are written and the display returns to the Monitor display.
Example Operations
In the example below the following settings have been changed from their default settings:
• C1-01 (Acceleration Time 1)
• C1-02 (Acceleration Time 2)
• E1-01 (Input Voltage Setting)
• E2-01 (Motor Rated Current).

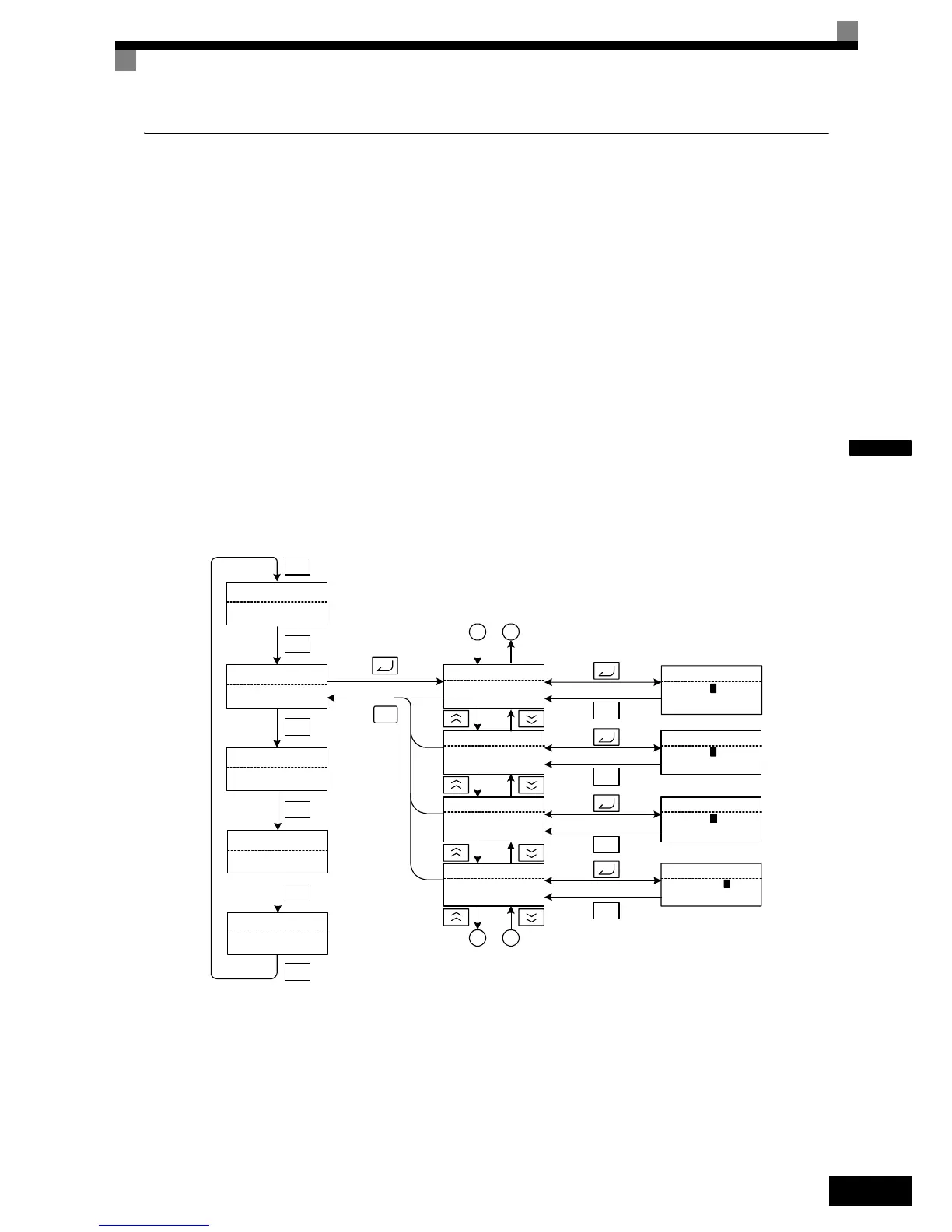

Fig 3.8 Operations in Verify Mode
** Main Menu **
-DRIVE-
Operation
** Main Menu **
-QUICK-
Quick Setting
** Main Menu **
-ADV-
Programming
** Main Menu **
-VERIFY-
Modified Consts
** Main Menu **
-A.TUNE-
Auto-Tuning
Monitor Display Setting DisplayMode Selection Display
ESC
Decel Time 2
-VERIFY-
C1-02 = 002.0sec
A B
A B
Input Voltage
-VERIFY-
E1-01=390VAC
Motor Rated FLA
-VERIFY-
E2-01= 7.20A
Motor Rated FLA
-VERIFY-
E2-01 = 007.20A
Input Voltage
-VERIFY-
E1-01= 390VAC
Decel Time 2
-VERIFY-
C1-02 = 002.0sec
MENU
ESC
MENU
MENU
MENU
MENU
MENU
ESC
ESC
ESC
(0.00 ~ 600.0)
"1.50sec"
(0.00 ~ 600.0)
"1.50sec"
(310~510)
"380VAC"
(310~510)
"380VAC"
(0.80 ~ 16.00)
"7.00A"
(0.80 ~ 16.00)
"7.00A"
Accel Time 1
-VERIFY-
C1-01 = 002.0sec
(0.00 ~ 600.0)
"1.50sec"
Accel Time 1
-VERIFY-
C1-01 = 002.0sec
(0.00 ~ 600.00)
"1.50sec"
