4.13
ELECTRONIC FUEL INJECTION
4
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

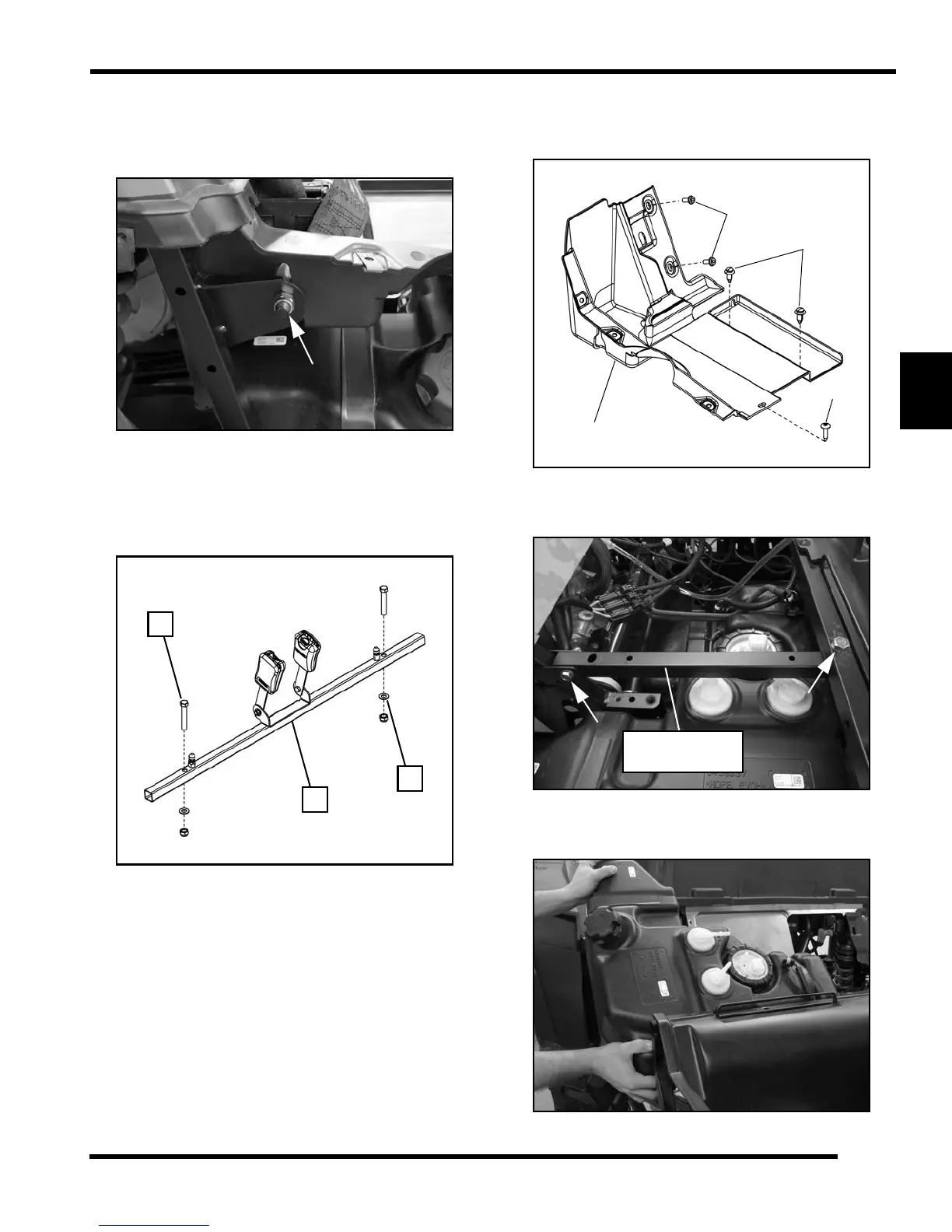

9. Remove the fastener retaining the seat belt
mechanism to the frame near the right rear portion of
the fuel tank. Once removed, place the mechanism in
the rear cargo box to keep it out of the way.
10. Remove the (2) bolts (E) retaining the rear seat base
assembly (F) to the frame. Remove the rear seat base
assembly from the vehicle. Take note of the (2)
spacers (G) located between the seat base and
frame.
11. Remove the Torx screws and push rivets retaining the
rear right-hand divider panel. Remove the divider
panel from the vehicle.
12. Remove the (2) fasteners retaining the frame support
and remove the support from the vehicle.
13. Lift up on the rear of the fuel tank first. Then carefully
pull the fuel tank out the side of the vehicle.
Screws
Push Rivets
Screw
Rear RH
Divider Panel
