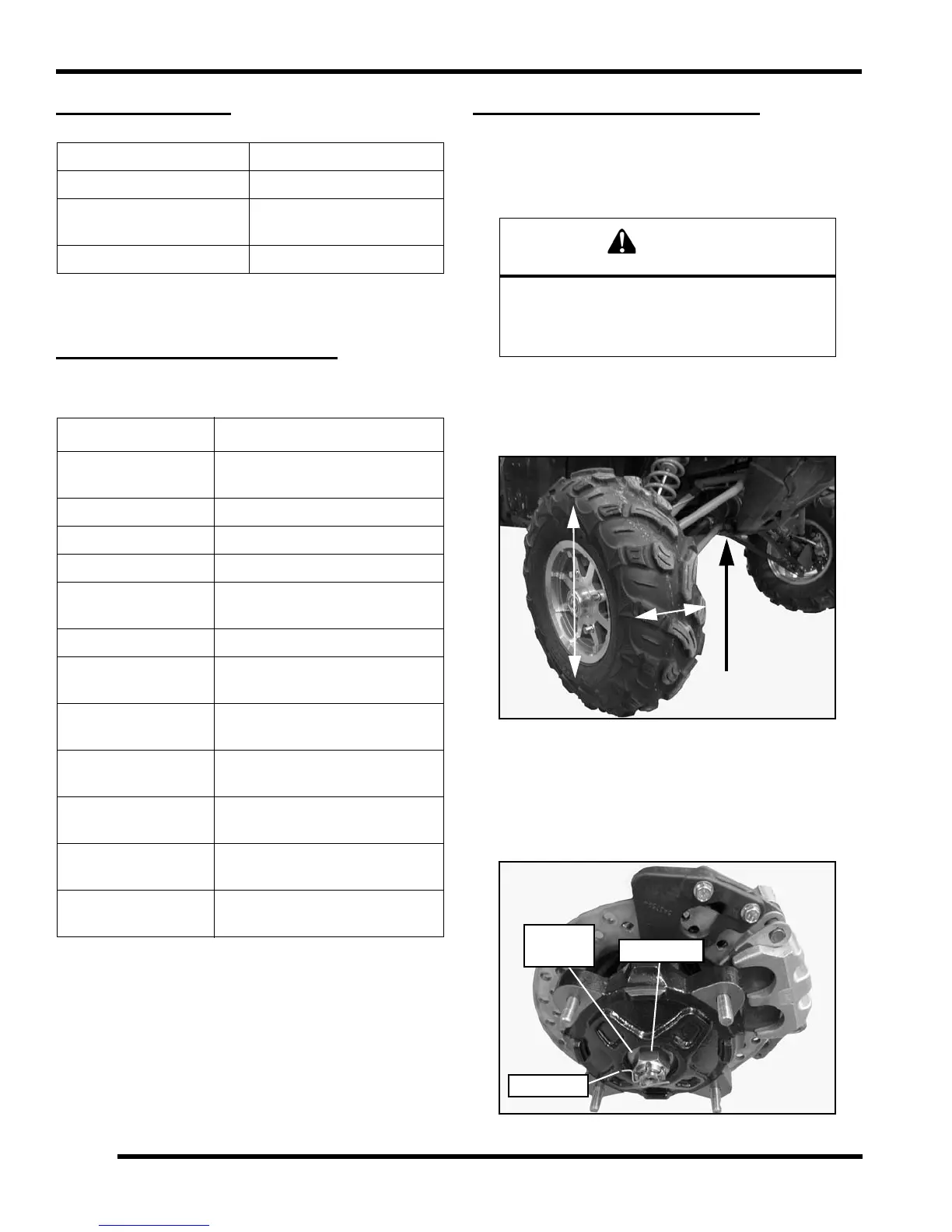

7.2
FINAL DRIVE
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.
SPECIAL TOOLS
SPX Corp: 1-800-328-6657 or http://polaris.spx.com/
TORQUE SPECIFICATIONS
Wheel and Hub Torque Table
FRONT BEARING CARRIER
Bearing Carrier Inspection / Removal
1. Elevate front of vehicle and safely support machine
under the frame area.
2. Check bearings for side play by grasping the top and
bottom of the tire firmly and checking for movement.
The tire should rotate smoothly without binding or
rough spots.
3. Remove the (4) wheel nuts and remove the front
wheel.
4. Remove the cotter pin and loosen the front wheel hub
castle nut. Remove the nut, and (2) cone washers
from the front wheel hub assembly.
PART NUMBER TOOL DESCRIPTION
2872608 Roll Pin Removal Tool
8700226
CV Boot Clamp Pliers
(earless type)
PU-48951 Axle Boot Clamp Tool
ITEM SPECIFICATION
Wheel Nuts
30 ft-lbs (41 Nm)
+ 90° (1/4 turn)
Front Hub Castle Nut 80 ft-lbs (108 Nm)
Rear Hub Castle Nut 80 ft-lbs (108 Nm)
Ball Joint Pinch Bolts 44 ft-lbs (60 Nm)
Front Brake Caliper
Mounting Bolts
40 ft-lbs (54 Nm)
Tie Rod End Fastener 42.5 ft-lbs (58 Nm)
Propshaft Support
Bearing Fasteners
30-35 ft-lbs (41-47 Nm)
Front Gearcase
Cover Plate Screws
7-11 ft-lbs (10-15 Nm)
Front Gearcase
Mounting Bolts
30 ft-lbs (41 Nm)
Bearing Carrier to
Trailing Arm Bolts
40 ft-lbs (54 Nm)
Radius Rod to
Bearing Carrier Bolts
45 ft-lbs (61 Nm)
Rear Brake Caliper
Mounting Bolts
40 ft-lbs. (54 Nm)
Serious injury may result if machine tips or falls.
Be sure machine is secure before beginning this
service procedure. Wear eye protection when
removing bearings and seals.
Castle Nut
Cotter Pin
Cone
Washers
