7.26
FINAL DRIVE
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

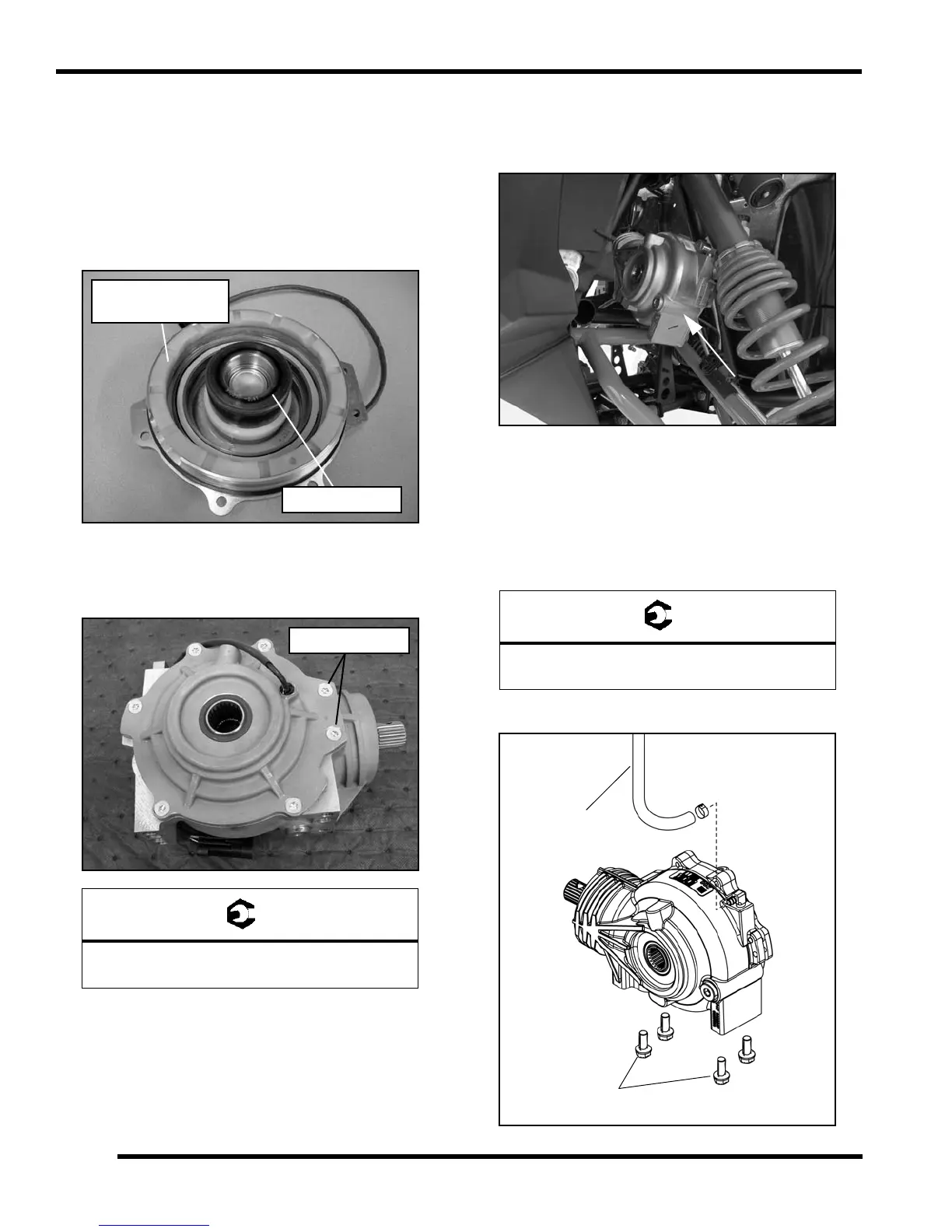

11. Install a new O-ring on the cover plate assembly.
NOTE: Be sure the square O-ring is placed flat on
the cover surface. If the O-ring is twisted fluid
leakage may occur.
12. Carefully install the LH output hub assembly into the
cover plate. Take care not to damage the new cover
plate seal while installing the output hub.
13. Install the output cover assembly onto the gearcase
housing. Install the (7) cover plate screws and torque
to specification.
Front Gearcase Installation
1. Install the gearcase back into the vehicle through the
LH wheel well area, above the upper A-arm.
2. Lubricate the front gearcase splines with Anti-Seize.
3. Install the propshaft onto the front gearcase input
shaft. Use a NEW spring pin in the front propshaft.
4. Install the (4) bolts that secure the front gearcase to
the frame and torque to specification.
5. Install the vent line.
Cover Plate Screws:
7-11 ft-lbs (10-15 Nm)
LH Output Hub
Non-serviceable
DO NOT Remove
Front Gearcase Mounting Bolts:
30 ft-lbs (41 Nm)
30 ft-lbs
Install
Vent Line
(41 Nm)
