9.5
BRAKES
9
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

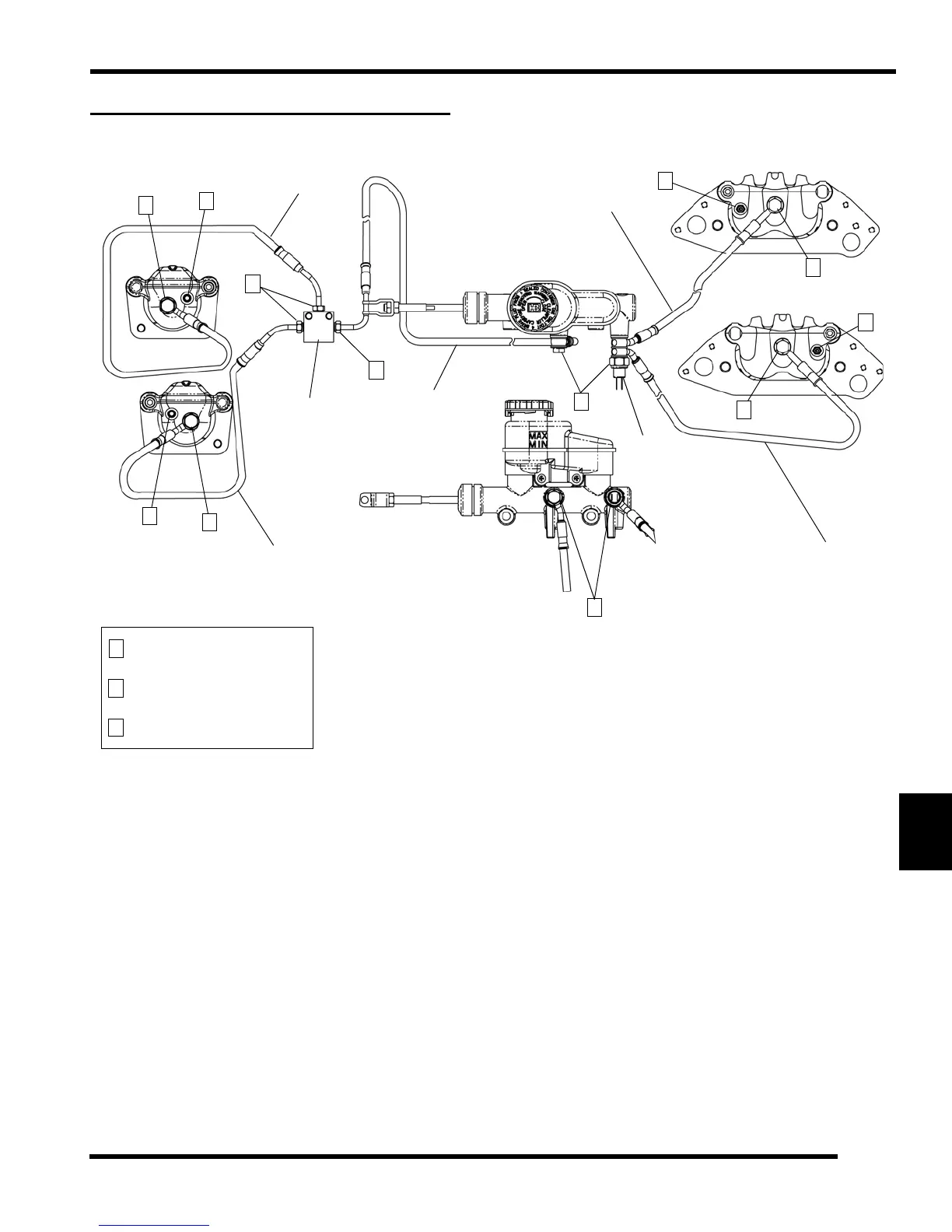

BRAKE SYSTEM EXPLODED VIEW
RZR XP
Caliper Banjo Style Fittings:
15 ft-lbs (20 Nm).
All Caliper Bleed Screws:
47 in-lbs (5.3 Nm)
Master Cylinder Side View
Cross
MC Rear
Brake Line
RH Rear Line
RH Front
Brake Line
Front Calipers
Brake
Master Cylinder
LH Front
Rear Calipers
Brake Line
LH Rear Line
1
2
1
1
2
2
1
3
All Flare Style Fittings:
12-15 ft-lbs (16-20 Nm)
3
1
1
2
2
3
Fitting
Switch
1
