9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.
16. Torque the locking screw to specification.
Transmission Assembly
IMPORTANT: The snorkel shaft and pinion shaft must
be installed prior to transmission assembly. The
snorkel shaft cannot be installed after assembling the
transmission.
1. Clean both transmission case halves thoroughly.
Inspect case half mating surfaces for damage.

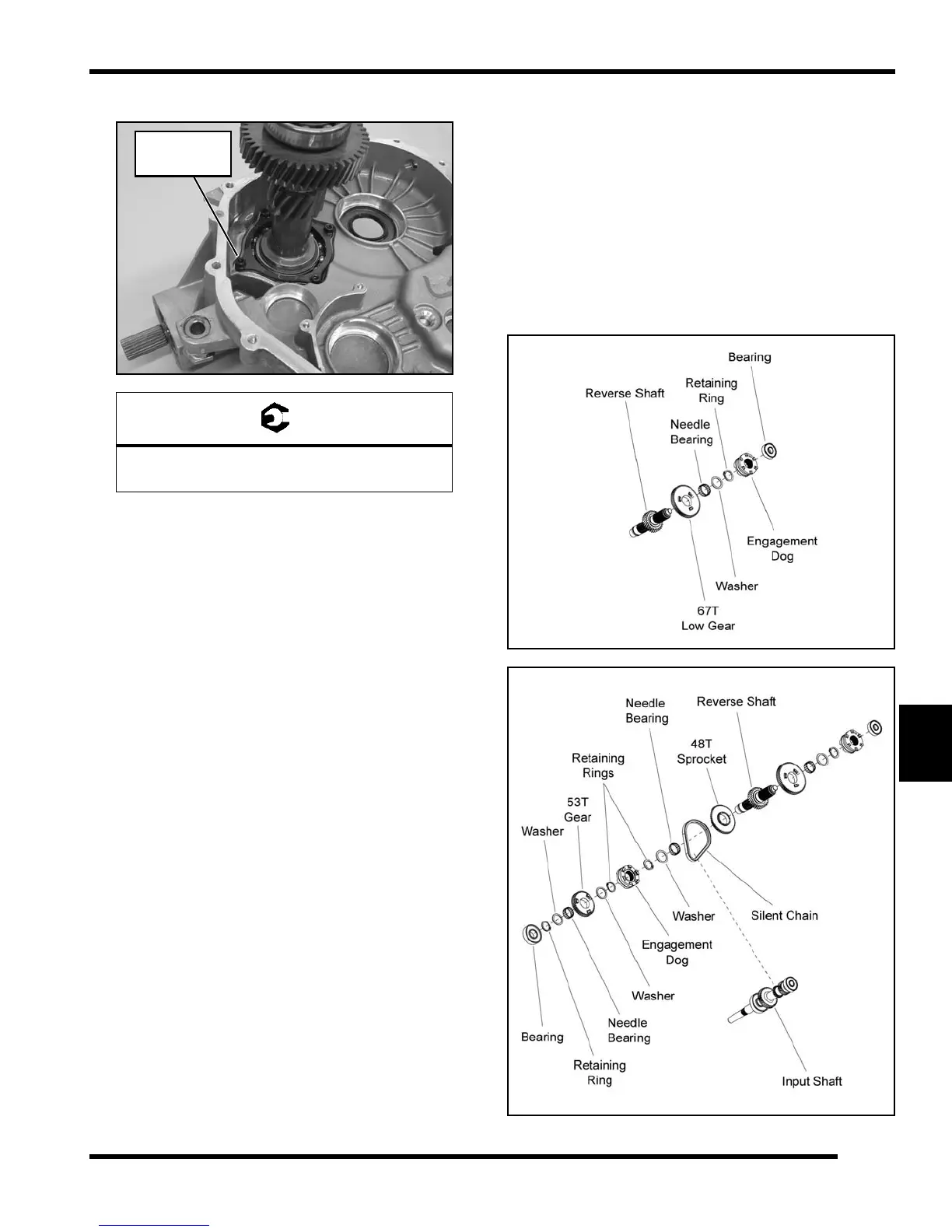

2. Assemble the reverse shaft assembly and input shaft
assembly if previously disassembled (see
illustrations).
Snorkel Locking Screw:
8-10 ft-lbs (11-14 Nm)
