5.22
BODY / STEERING / SUSPENSION
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

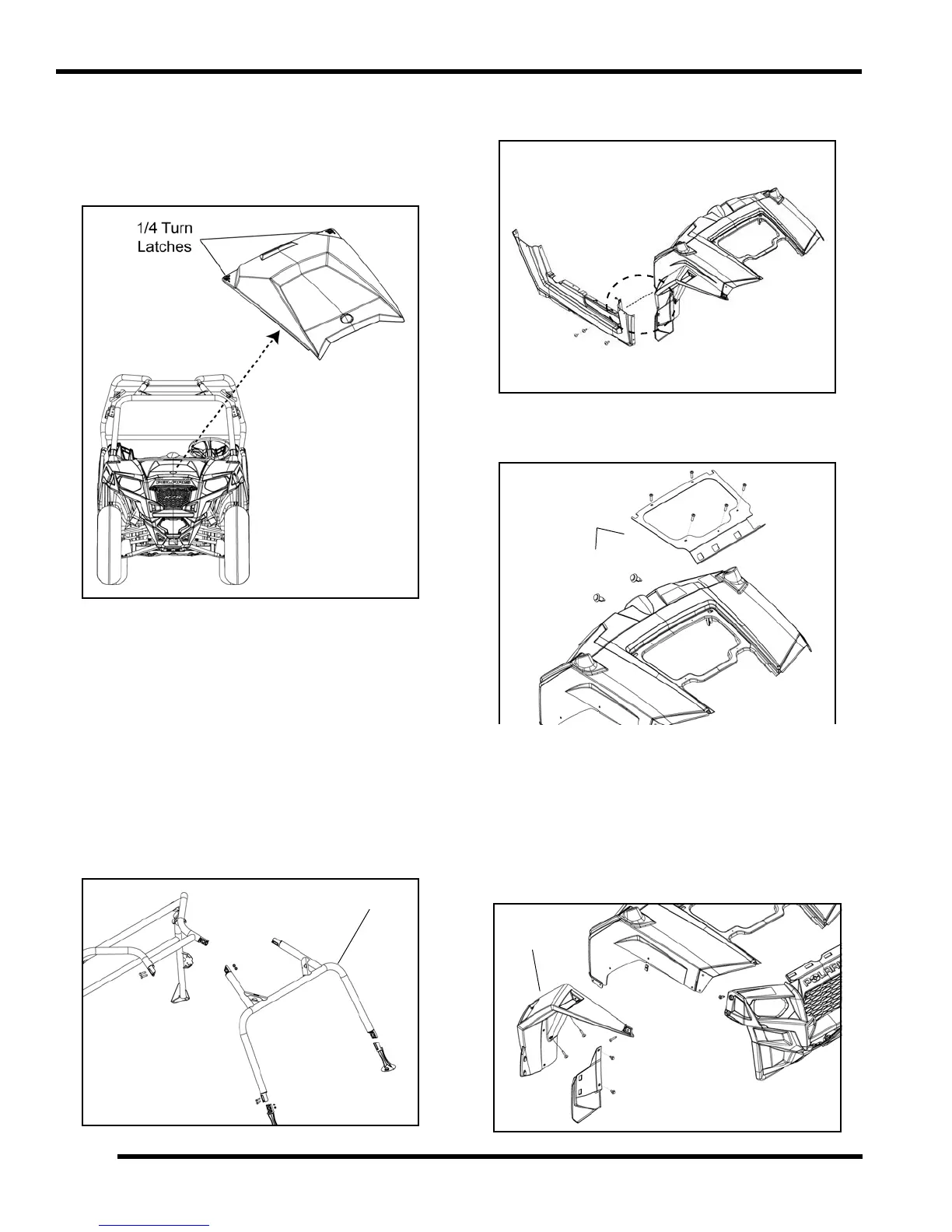

Hood and Front Body Work
Hood Removal
1. To remove the hood, turn both 1/4 turn latches to
disengage the rear portion of the hood.
2. Lift rear of hood and slide forward to disengage the
front tabs and remove the hood from the vehicle.
Front Body / Dash Removal
1. Remove the hood as previously described.
2. Remove the front bumper (see “BODY COMPONENT
REMOVAL - Front Bumper”).
3. Remove the front portion of the cab frame assembly
to allow dash removal. Refer to appropriate “CAB
FRAME - Assembly / Removal” procedure for
assembly torque specifications.
4. Remove the push rivets and screws that attach the
dash assembly to the rocker panels on each side.
5. Remove the (2) push rivets that retain the rear portion
of the dash assembly.
6. Disconnect all electrical dash components noting their
location and wire routing.
7. Remove the dash assembly from the vehicle.
Front Fender Flair Removal
1. Remove the (6) T27 Torx screws and remove fender
flairs from the dash assembly.
Vehicle shown is
for reference only.
