BODY / STEERING / SUSPENSION
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

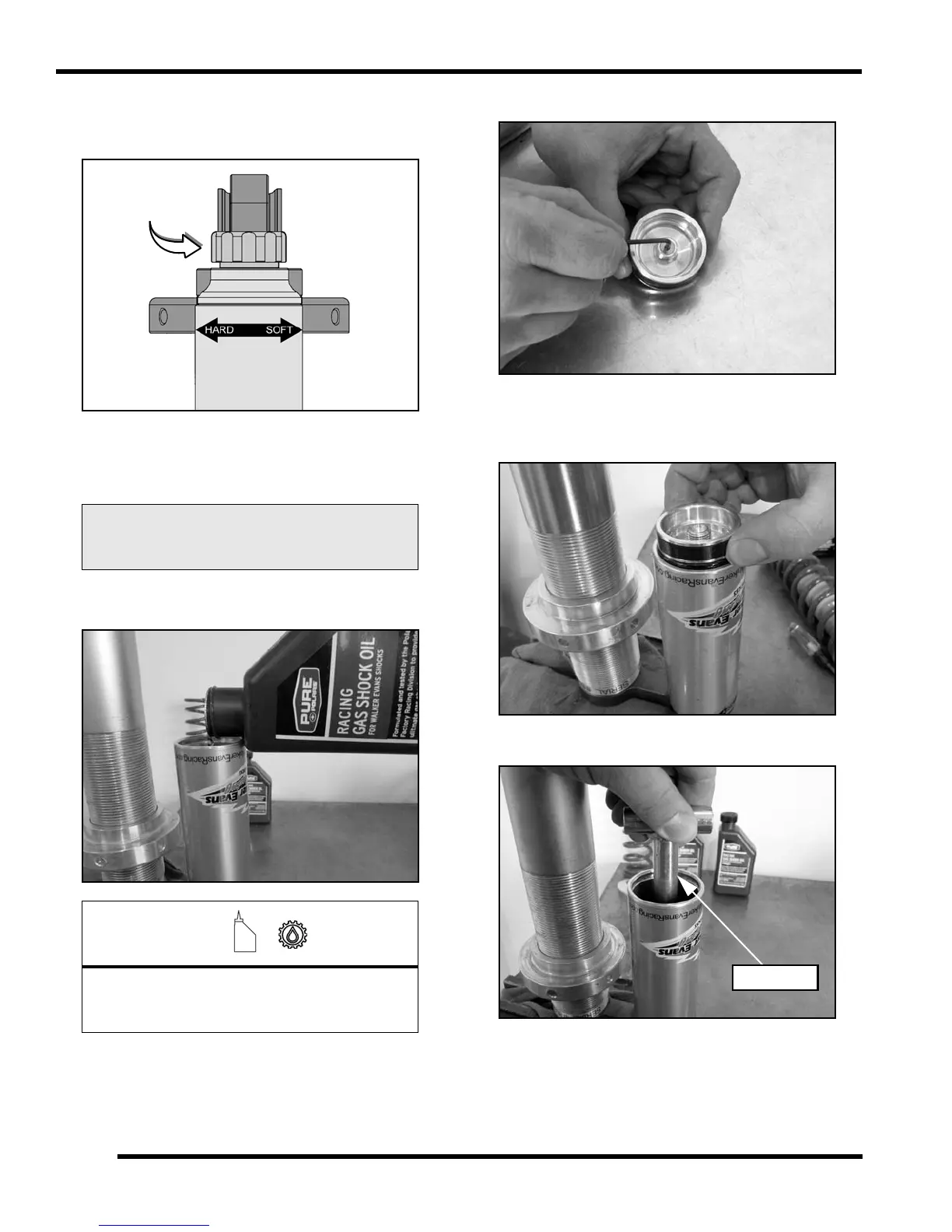

10. Turn the compression adjuster knob counter-
clockwise (soft) until it stops, so damping is in the full
open position.
11. Use the appropriate shock body holding tool to
properly secure the shock assembly into a vice for
service.
12. Fill the shock body and remote reservoir 1/2 full of the
recommended gas shock oil.
13. Using a 3/32" Allen wrench, remove IFP bleed screw.
14. Apply a thin film of oil to IFP O-ring and wear band.
Insert IFP into reservoir until completely submerged.
Allow air to escape as you install the piston.
15. Screw IFP Tool (PS-45908) onto the floating piston.
16. Slowly cycle the IFP up and down.
• Be sure to bottom out piston in the reservoir body.
• Allow time for the bubbles to dissipate.
• Repeat the process until all air has been removed.
Front Shock Body Holding Tool: PU-50979
Rear Shock Body Holding Tool: PU-50938
Recommended Shock Oil:
Racing Gas Shock Oil (PN 2874124) (Quart)
10 Weight for Walker Evans Shocks
