6.22
CLUTCHING (PVT)
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

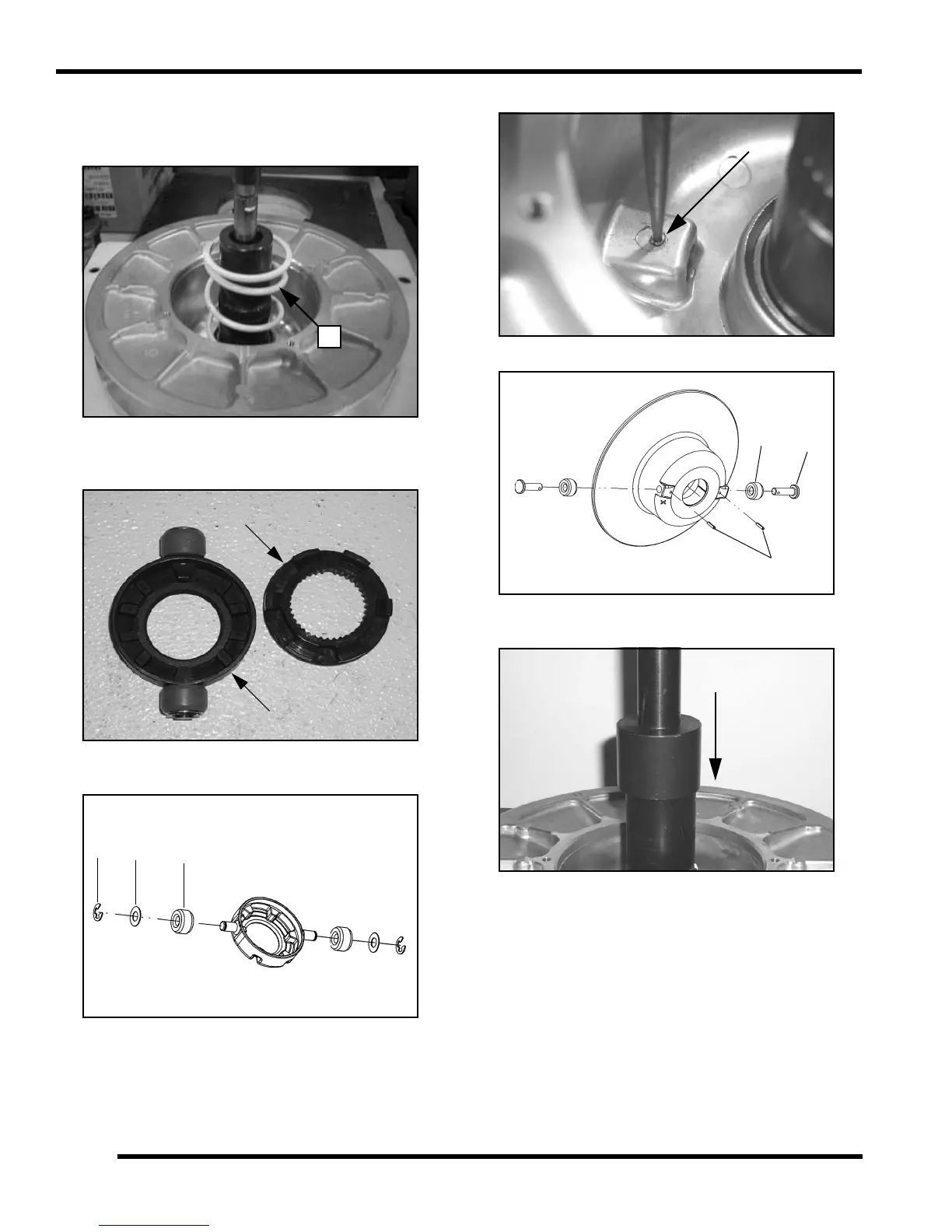

6. Remove the spider assembly and spring (B).
NOTE: Spring is compression only and has no
torsional wind.
7. Remove the inside spider plate (D) and spider
dampener (E). Inspect the spider dampener (E) for
wear and replace if needed.
8. Remove the E-clips (F), washers (G), and the clutch
rollers (H). Inspect the rollers for wear; replace if worn.
9. Remove the clutch assembly from the holding tool.
10. Press out the spring pins (I) in the inner sheave.
11. Pull out the clutch roller pins (J) and rollers (K).
12. Press the shaft and bearing out of the outer sheave
using an arbor press.
