Chapter 3: Configuring Your Library
Managing Connectivity
178
Quantum Scalar i6000 User’s Guide
5

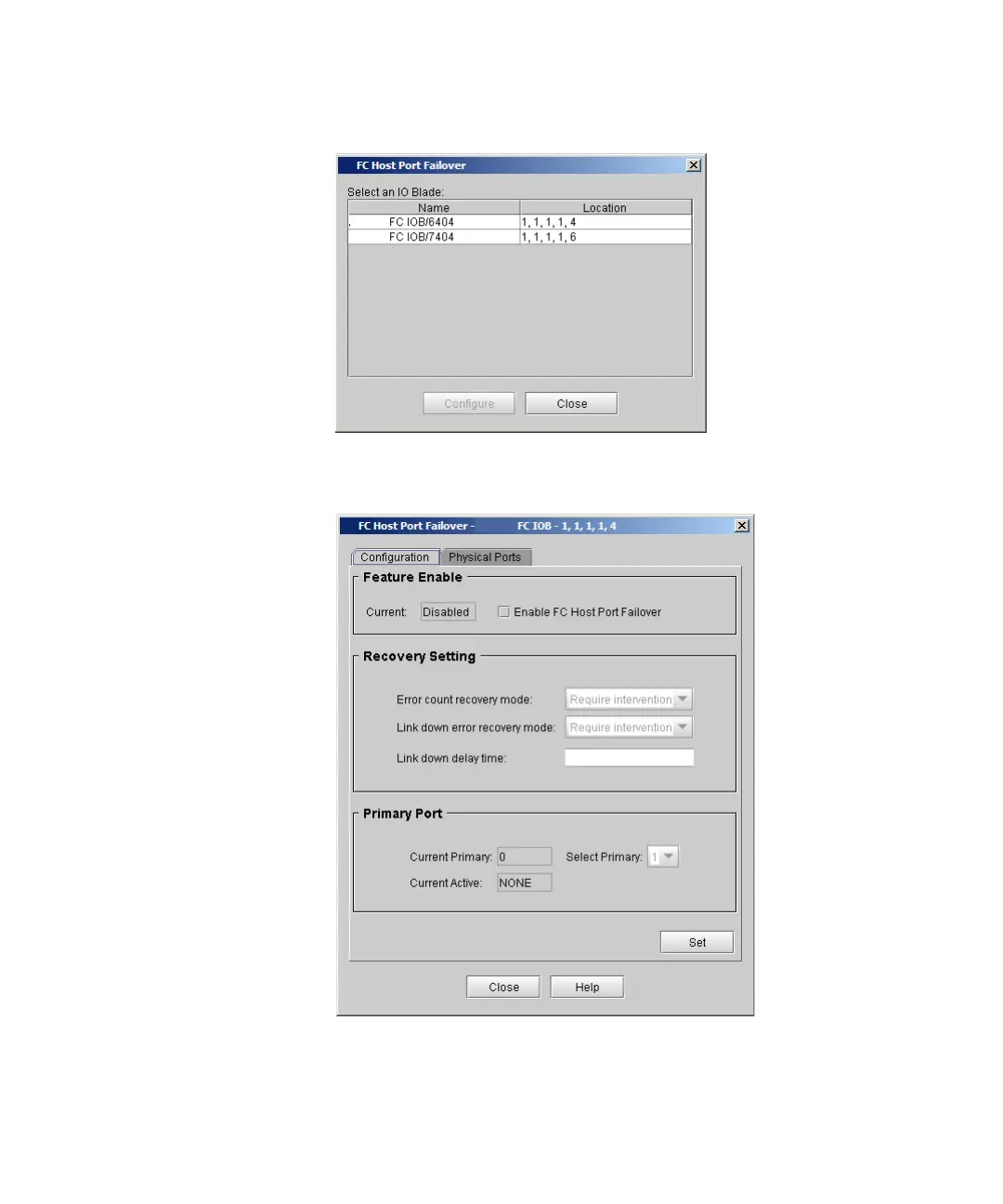

Click a blade to high
lig
ht it, and then click
Configure
. The
FC Host
Por
t
Fa
i
lo
v
e
r
dialog box appears
6
In the
Feature Ena
ble
area, select
Enable FC Host Port F
ailo
ver
,
and then click
Set
to make the
Configura
tion
tab available.
195
197
