Quantum Scalar i6000 User Manual

Chapter 13: Running Your Library
Using the Library Access Feature
Quantum Scalar i6000 User’s Guide 495

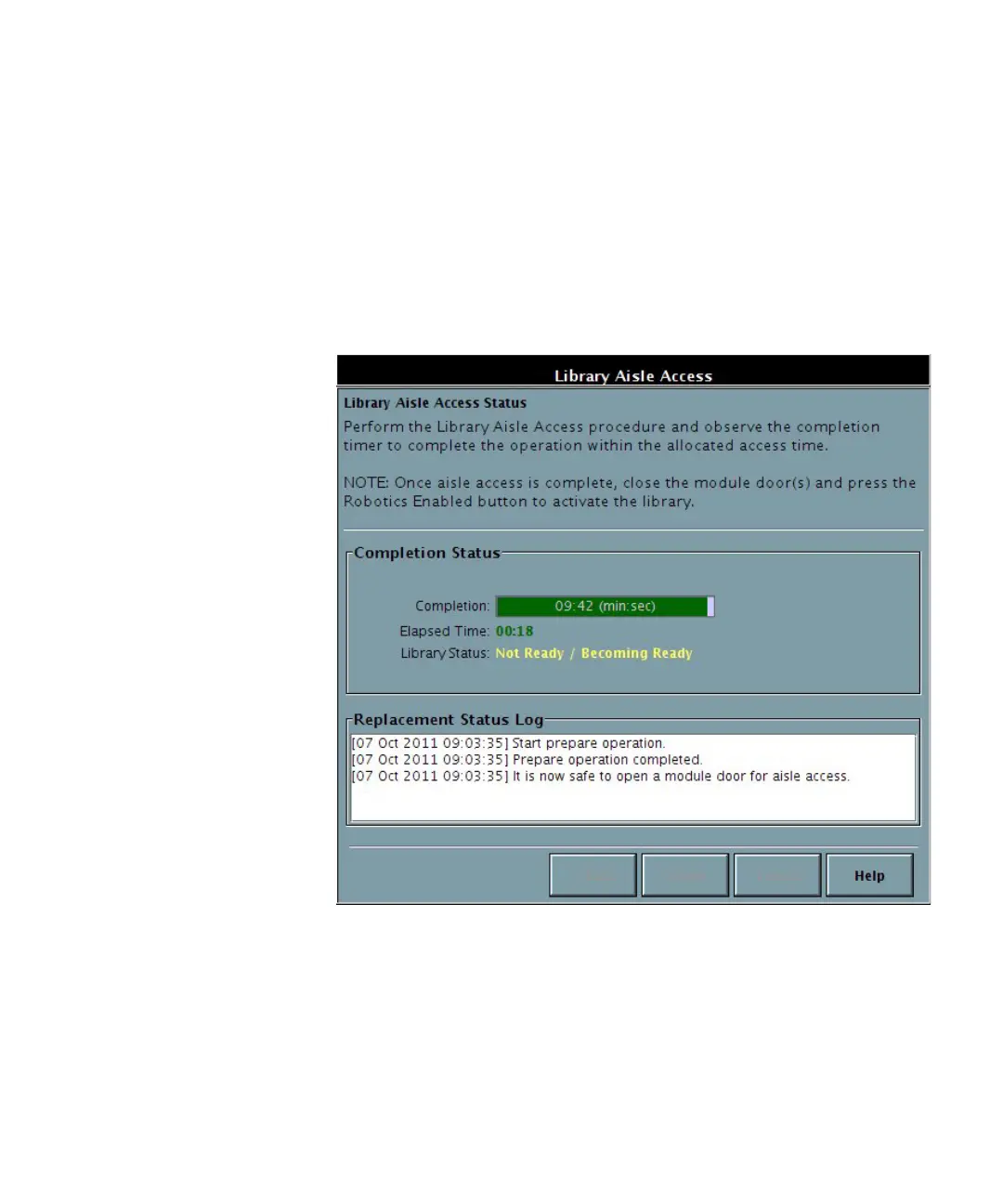

4 Click the Prepare button and wait until the screen notifies you that
it is safe to open the module door.
The library finishes the current command and begins to report
“Becoming Ready” status to hosts. Once this happens, a dialog box
appears on the screen stating that it is safe to open the door, and
the 10-minute timer starts counting down.
5 Click OK to close the dialog box. (The dialog box will close on its
own after 15 seconds.)
6 Open a module access door and perform your activity. Try to finish
within 6 to 7 minutes.
7 When finished, close the module door and press the Robotics
Enabled button.
8 Wait for the library to come ready (Library Status on the screen
says “Ready” and the Robotics Enabled button comes on solid).

Quantum Scalar i6000 Specifications

General

Form Factor	Rack-mountable
Interface	Fibre Channel, SAS
Product Type	Tape Library
Cooling	Redundant cooling fans
Dimensions	Varies by configuration
Weight	Varies by configuration
Operating Humidity	20% to 80% non-condensing
Scalability	Scalable
Drive Types	LTO
Redundancy	Redundant power supplies
Management	Web-based management
Tape Technology	LTO
Supported Media	LTO Ultrium 9, LTO Ultrium 8, LTO Ultrium 7, LTO Ultrium 6
Power Supply	Redundant power supplies
Non-operating Humidity	5% to 95% non-condensing
