Pronto! 482/486/682/863 8-21

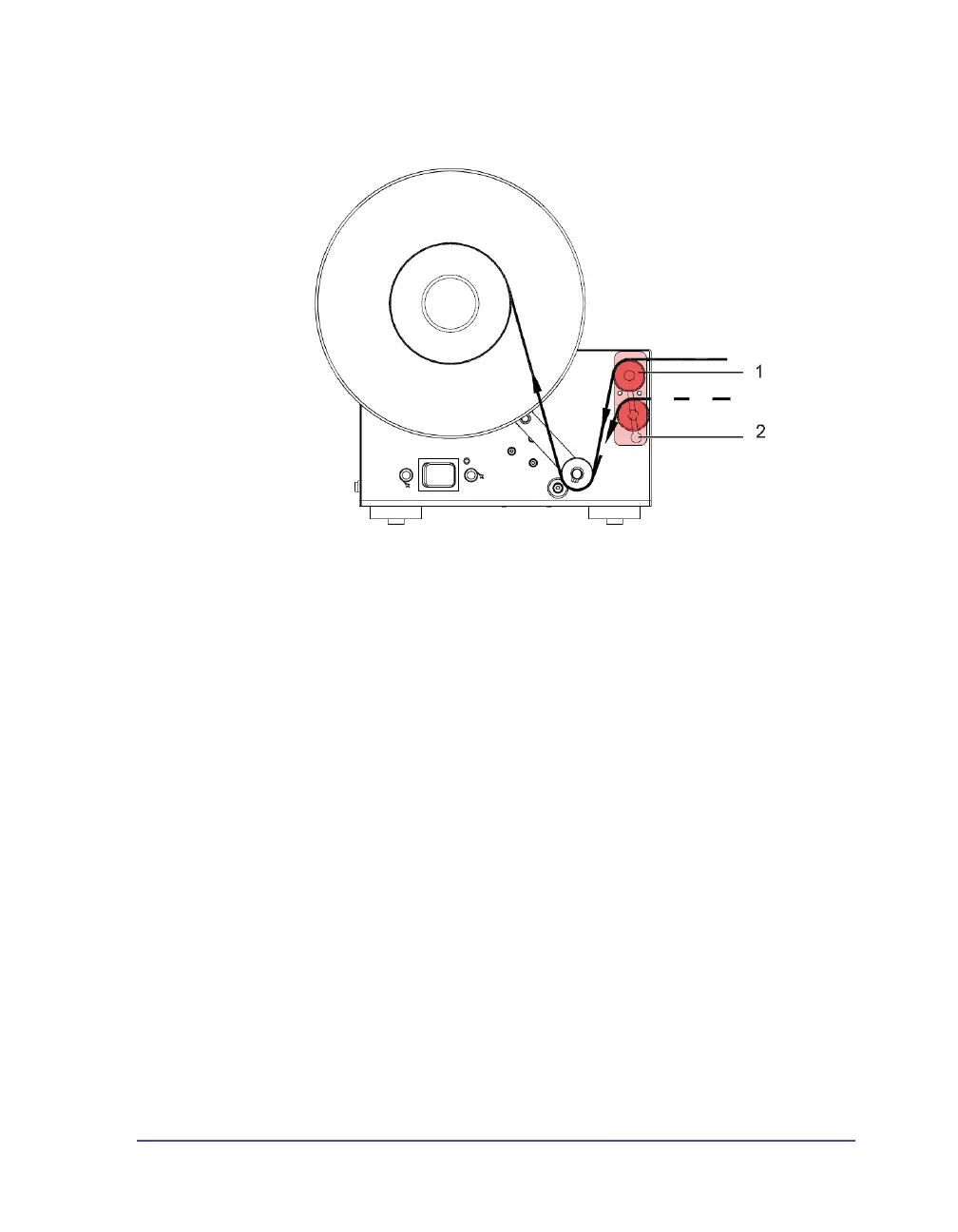

Aligning the Guide Axle

Depend of the used printer the guide axle should be aligned so, that the label

strip is led horizontally from the printer to the rewinder.

1 Loosen the guide axle (1) by turning it counterclockwise.

2 Move it in the guide plate (2) up to the desired position.

3 Fasten the guide axle (1) by turning it clockwise.
