6-6 Loading media
3 Hold rewinder (2) firmly and turn knob (3) clockwise until it stops.
4 Push label strip under a bracket (1) of the rewinder and turn knob (3)
counterclockwise until it stops.
The rewinder is fully spread, thus gripping the label strip firmly.
5 Turn rewinder (2) counterclockwise to tighten the label strip.
6 Turn lever (5) clockwise to lock the printhead.
The label roll is loaded for use in Rewind mode.
Winding up the liner in Peel-Off mode
In Peel-Off mode, the labels are removed after printing, and only the liner is
wound up internally.

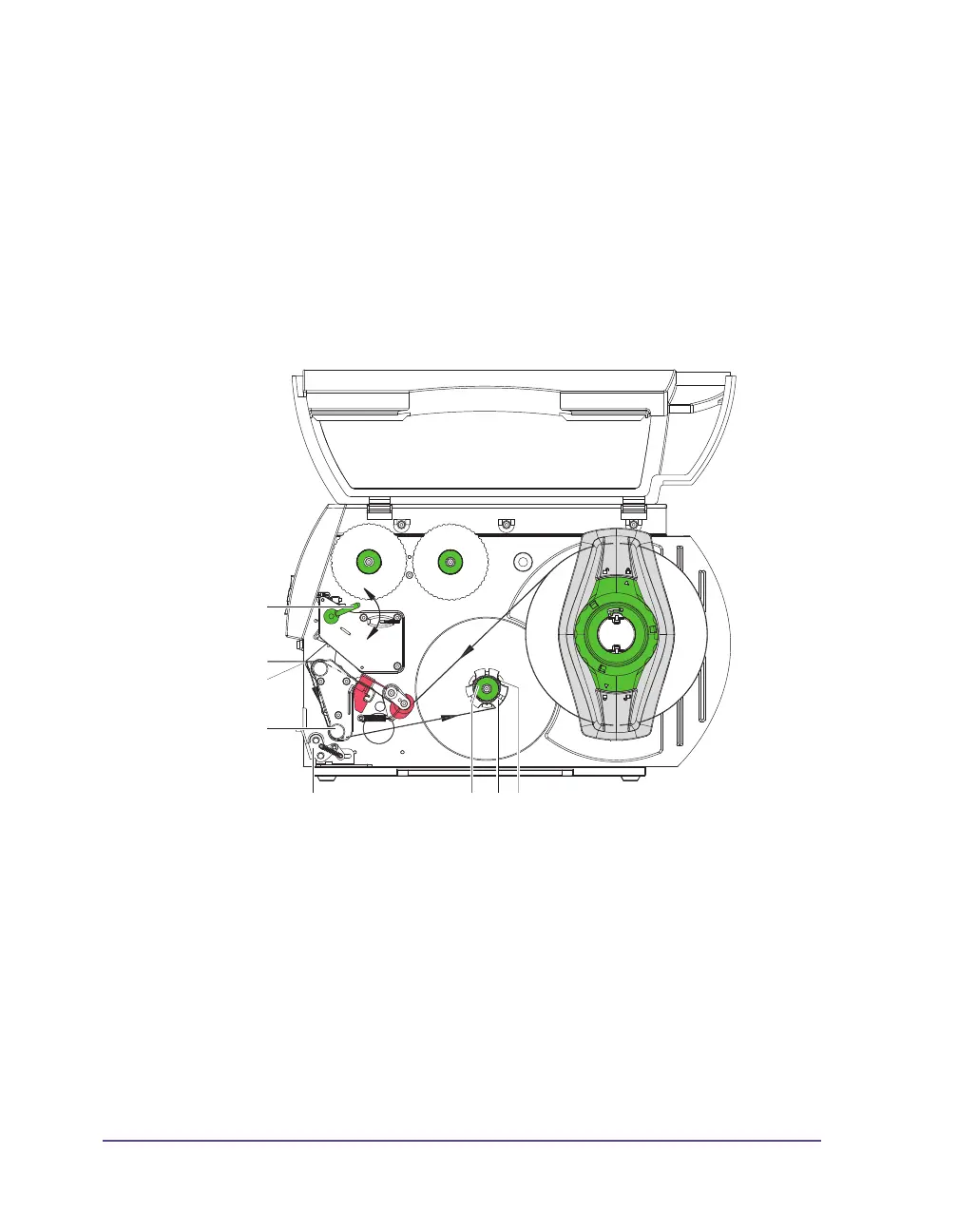

1 Lift the pinch roller (4) off the rewind assist roller (5).
2 Remove labels from the first 100 mm of the liner.
3 Guide liner to the rewinder (2) around the dispense plate (6) and the
rewind assist roller (5).
4 Hold rewinder (2) firmly and turn knob (3) clockwise until it stops.
5 Push liner under a bracket (1) of the rewinder (2) and turn knob (3)
counterclockwise until it stops.
2 13
6
5
4
7
