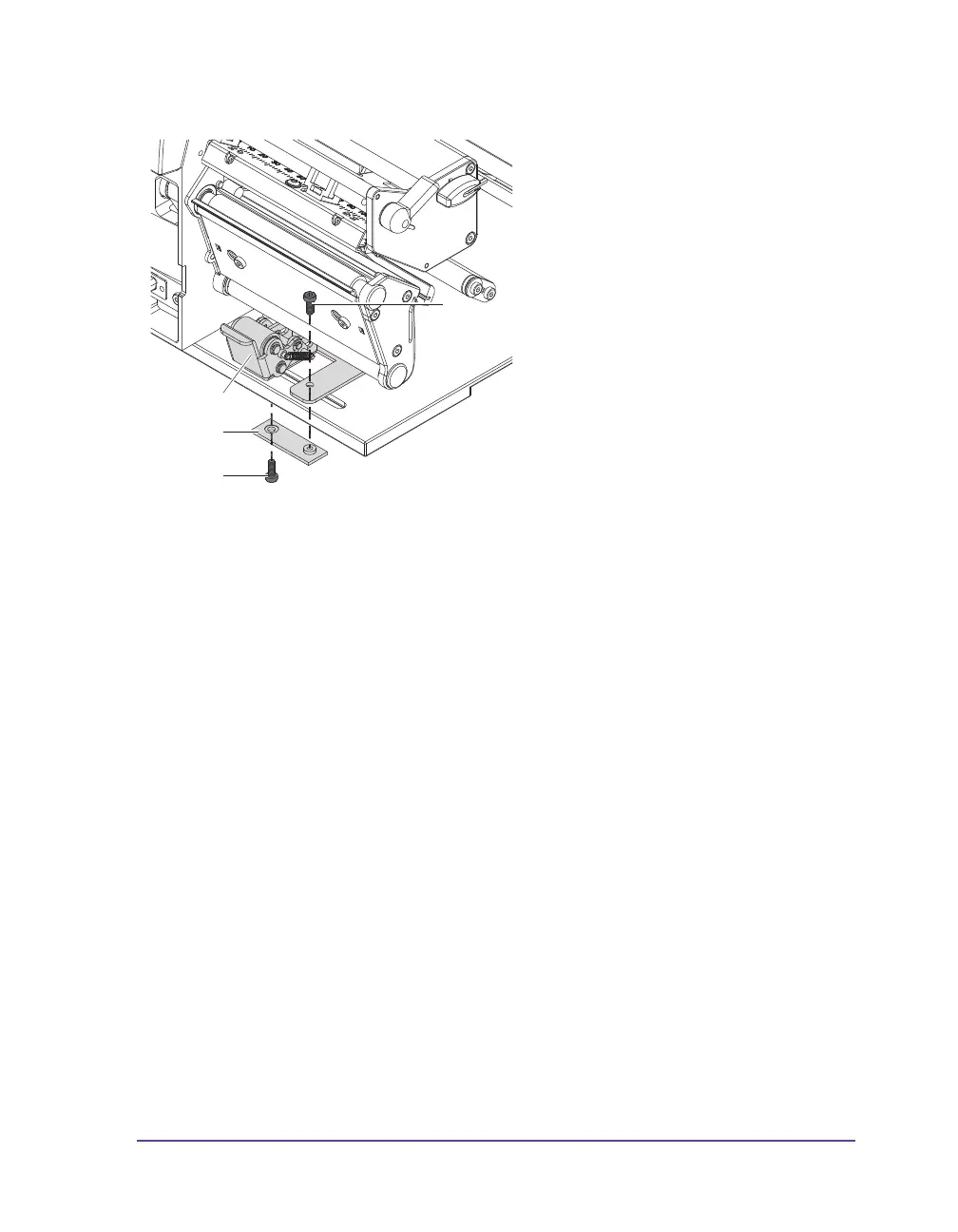

Removing and installing the locking system
Removing the locking system
1 Position printer at edge of
table so that the oblong hole is
accessible from below.
2 Screw out screws (1) (2) and
remove them.
3 Remove the pinch roller (4)
and bottom plate (3).
Installing the locking system
1 Position printer at edge of
table so that the oblong hole is
accessible from below.
2 Place the pinch roller (4) into
oblong hole and lightly
tighten screw (1) of bottom
plate (3) from above.
3 Lightly tighten screw (2) of
bottom plate (3) from below.
4 Align the pinch roller (4) with
center of label and tighten
screws.
1
2
3
4
