8-50 Accessories

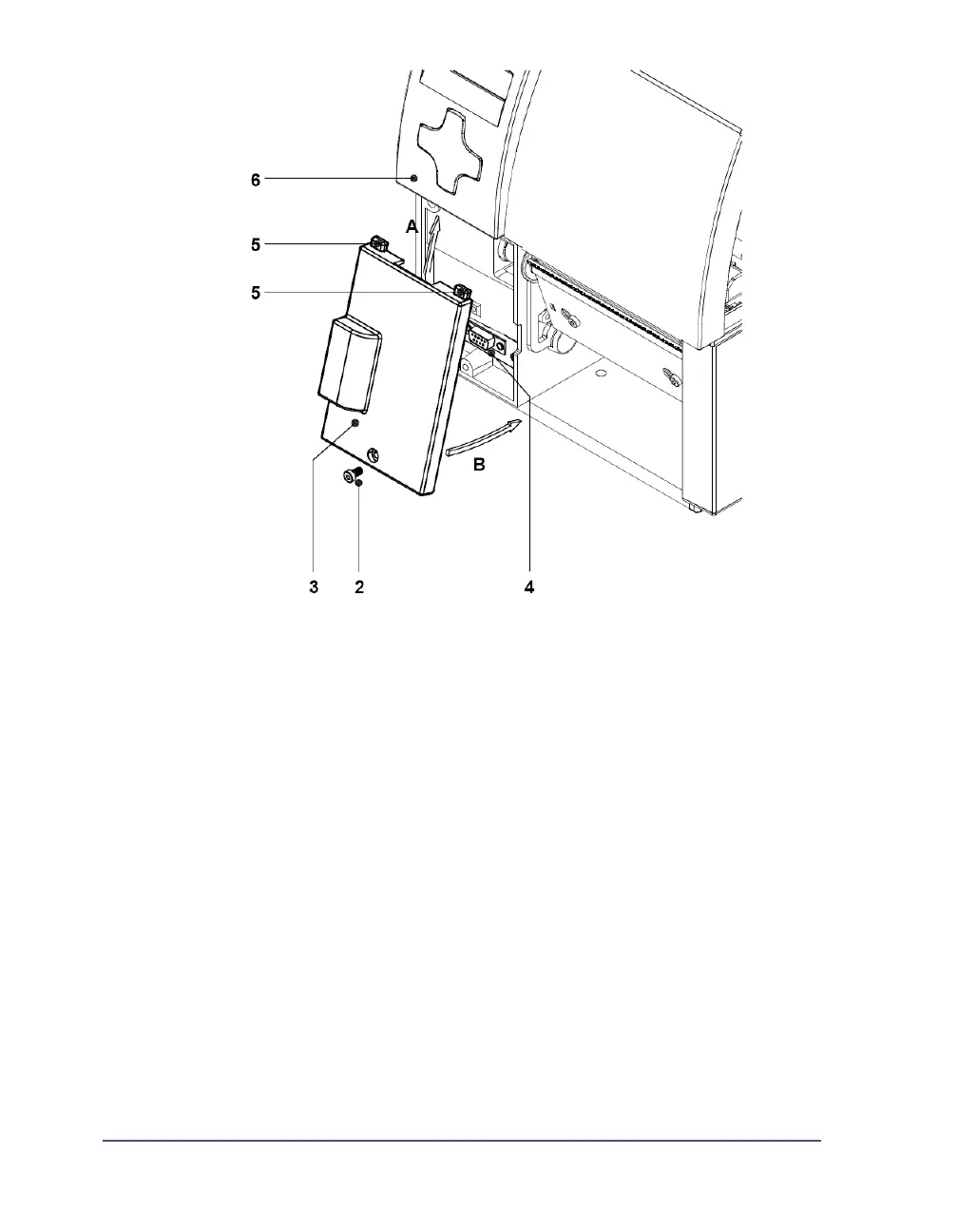

3 Angle the Pause Adapter (3) slightly and slide it according to arrow A
inserting the guiding pins (5) under the control panel cover (6).
4 Swing the lower edge of the Pause Adapter according to arrow B against
the printer. Make sure that the plug-in connector of the present sensor is
inserted into the 15 pin peripheral port (4) of the printer.
5 Secure the Pause Adapter (3) by tighten the screw (2).
Modes of Operation
The printer is ready for operation if all connections have been made and all
materials are loaded correctly. Answers about loading the materials you find
in the operator`s manual of your printer.
When Pause Adapter PS7 is connected you should deactivate all special print
mods (peal-off mode, cutter mode).
1 Print under control of an external device
The printer does its regular print job during the pause signal is inactive.
The printer receives the pause signal by the Pause Adapter from the
external control.
