Explanation of the Signals
• XPSE - Pause
If the pause signal XPSE becomes active the printer will finish the current
printed label. Then the printer will pause the print job as long as the

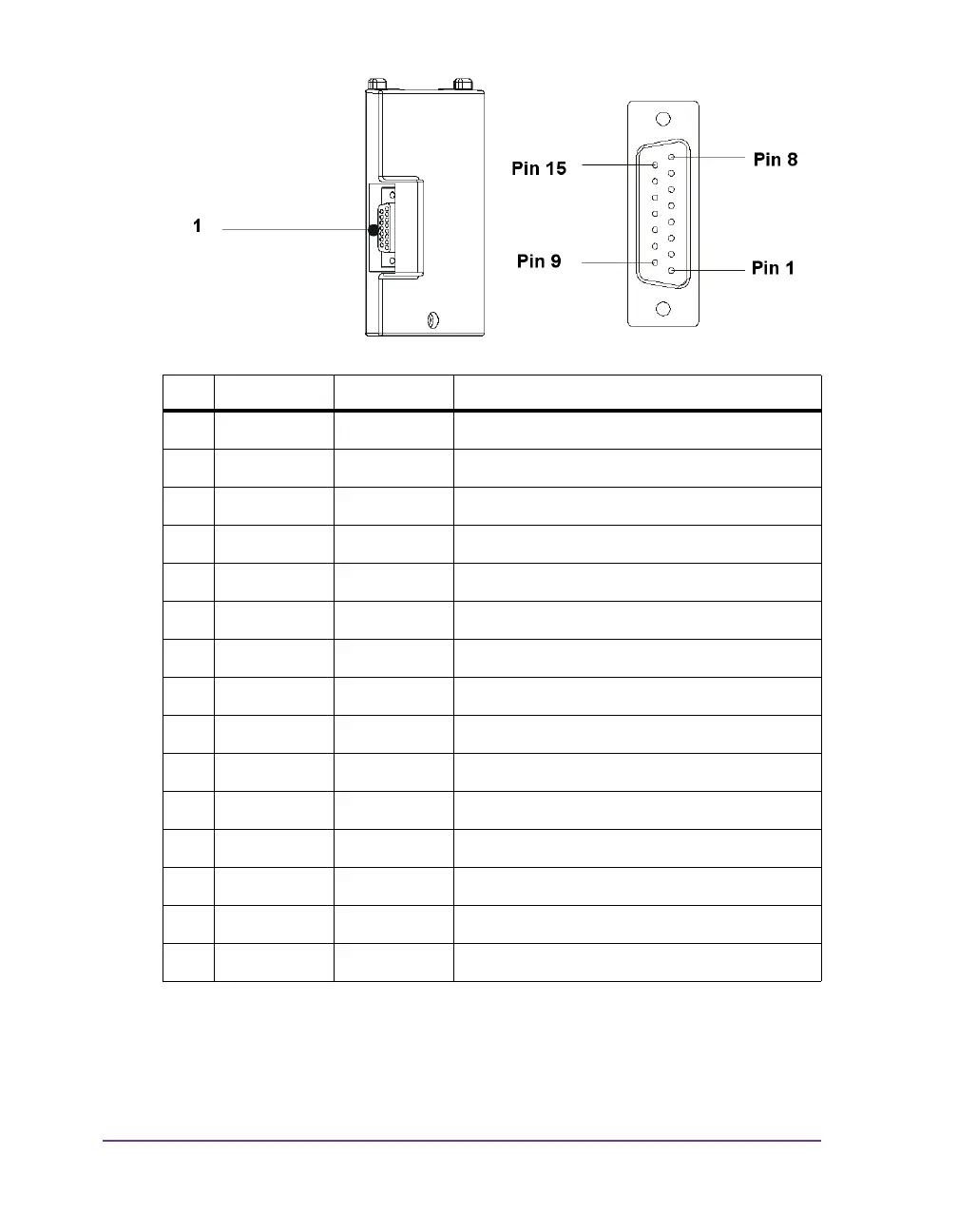

Pin Signal Direction System Function
1 XPSE Input Pause signal
2 XFEH Input External error
3 --- --- Do not use!
4 --- --- Do not use!
5 XEDG Output No existing print job
6 XDNB Output Printer is not ready
7 XEDST Output Print of a label has started
8 GND Ground (0V)
9 RXPSE (Input) Pause (reverse line)
10 RXFEH (Input) External error (reverse line)
11 --- --- Do not use!
12 GND Ground (0V)
13 --- --- Do not use!
14 RÜL Output Reverse line (for all output signals)
15 24P (Output) Operating voltage +24V, Si T 100mA
