Loading labels from a roll

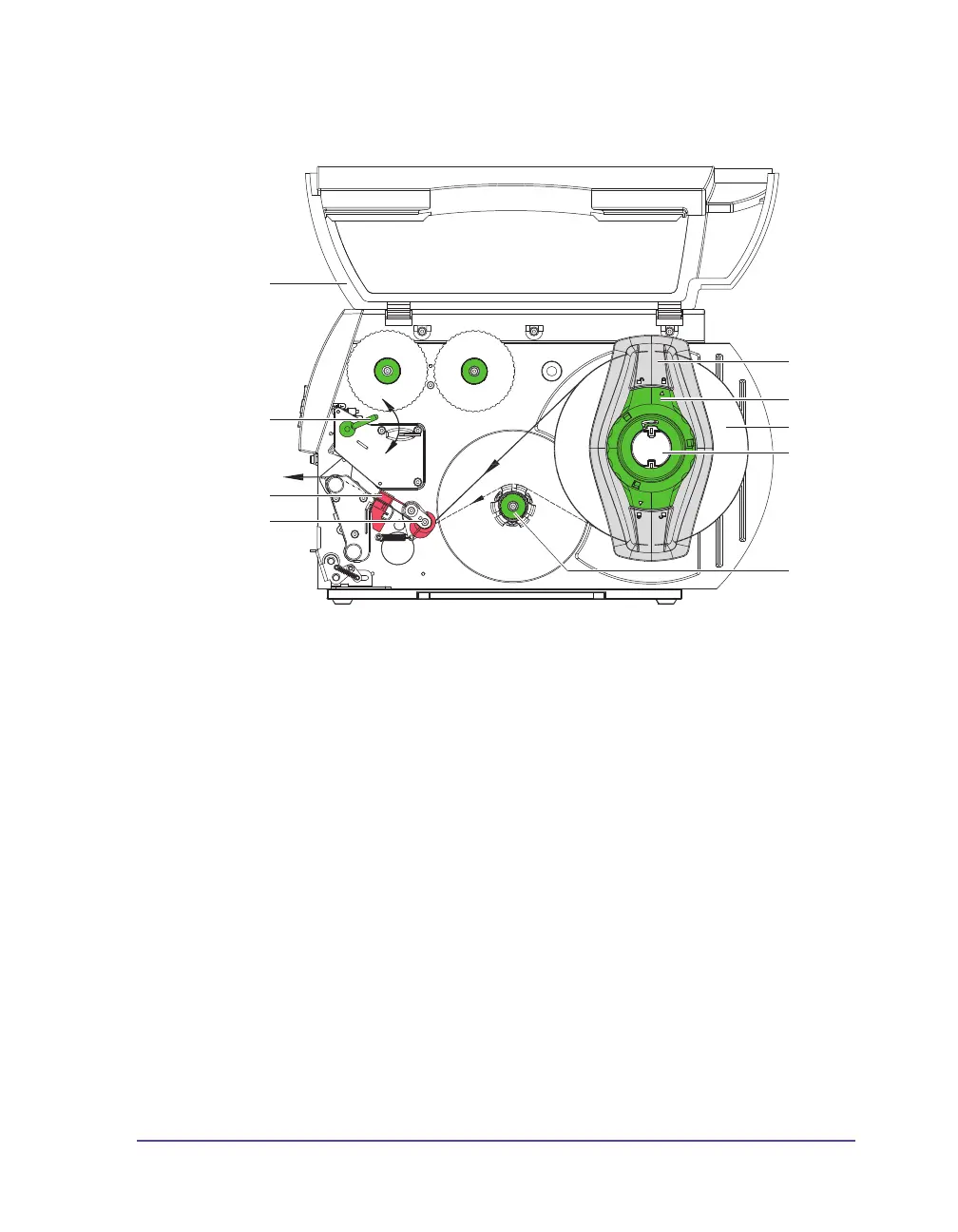

Positioning the label roll on the roll retainer
1 Open cover (9).
2 Turn ring (2) at the margin stop (1) counterclockwise, so that the arrow
points to the symbol, and thus release the margin stop.
3 Remove the margin stop (1) from the roll retainer (4).
4 Load label roll (3) on the roll retainer in such a way that the labels can be
inserted into the printhead in the right position. The printing side of the
labels must be visible from above.
5 Re-mount the margin stop (1) onto the roll retainer (4). Push the margin
stop (1) to the roll until it stops.
6 Turn ring (2) clockwise, so that the arrow (10) points to the locked
symbol, and thus fix the margin stop (1) on the roll retainer (4).
7 Supplying longer label strips:
• For Peel-Off or Rewind mode: approx. 60 cm
• For Tear-Off mode: approx. 40 cm
