Safety Instructions
Mounting
1 Switch off the printer.

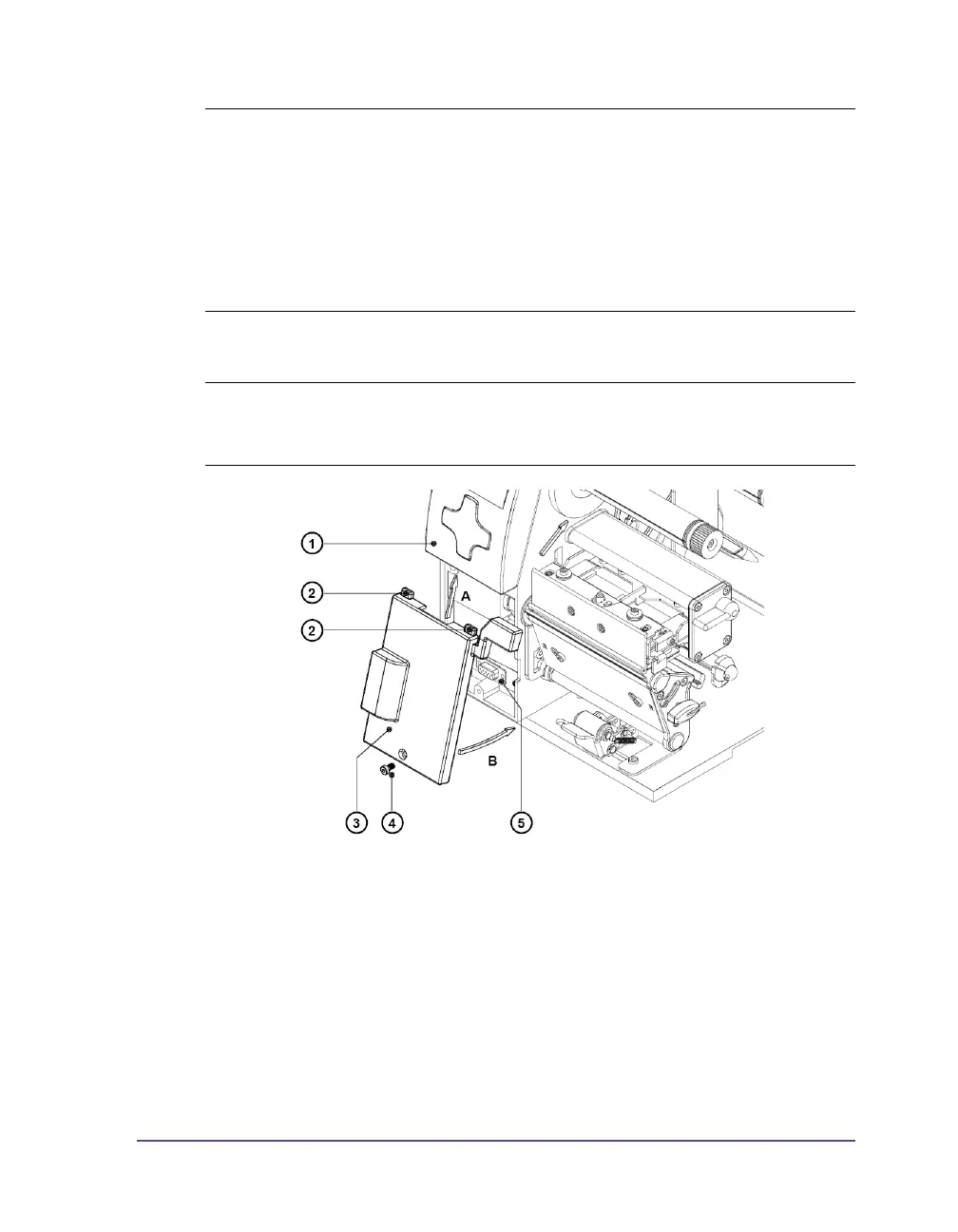

2 2. Slide the guiding pins (2) of the module (3) according to arrow A under
the control panel cover (1).
3 Swing the lower edge of the module according to arrow B against the
printer.
Make sure the plug-in connector of the module is inserted into the 15 pin
peripheral port (5) of the printer.
Caution:
• The printer must be powered off before attaching the module!
• The module may only be used for the purposes described in this manual.
Using this module for any other purpose is not allowed!
• The printer must be powered off before attaching a control device to the
module!
Note: For operation of the Present Sensor PS6 you may have to reposition the
jumper on the circuit board of the module before mounting (see Operation
Modes on page 8-37).
