Pronto! 482/486/682/863 8-55

Minimum external circuit for operation with Pause Adapter PS7

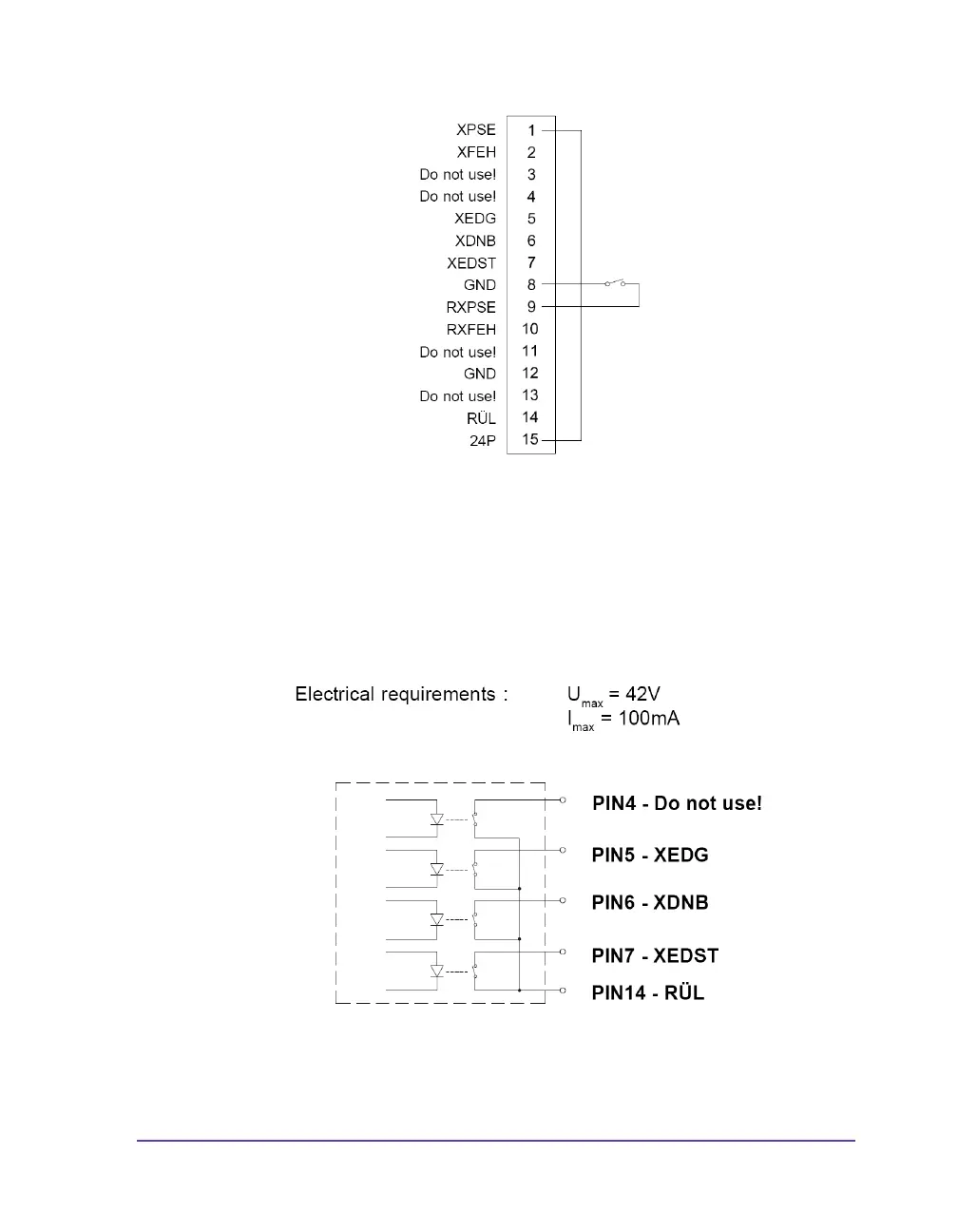

Circuit Diagram of Outputs

All outputs are recognized through solid state relays. Their outputs are

connected to one another on one-side. The joint line is lead to the plug

connector as a RÜL signal.

The switch function of the outputs is to open or close the contact between the

joint line RÜL and the respective output.
