10-14 CS4 Cutter/Stacker Accessory
Maintenance
The maintenance is limited to monthly cleaning of the device. The most
important is the cleaning of the cutter blades.

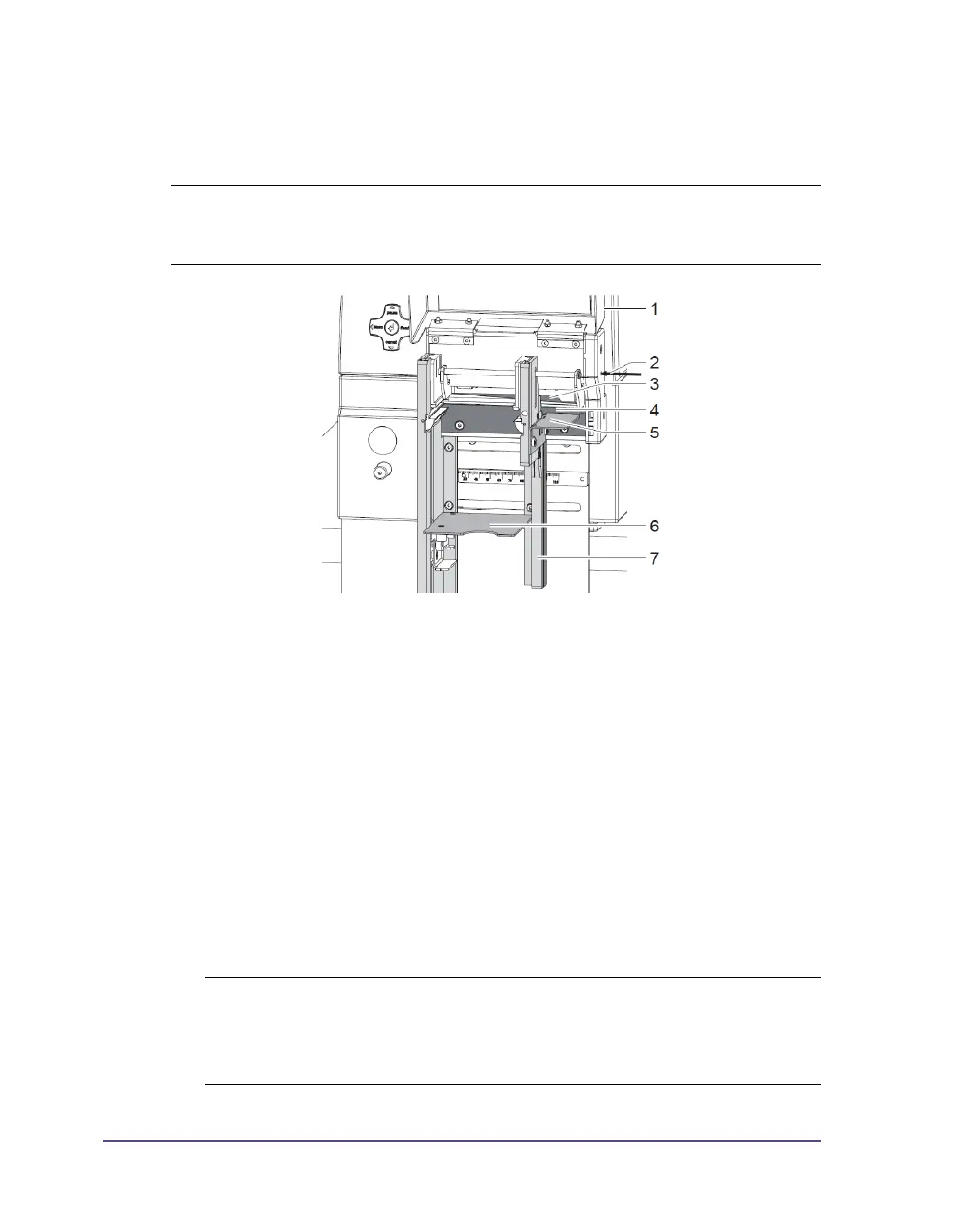

1 Open cover (1).
2 Move table (6) downwards.
3 Remove safety covers (Mounting the Safety Cover on page 10-8) and shift
the movable side plates (7) apart from each other as far as possible
(Adjusting the Side Plates on page 10-7).
4 The cutter shaft can be reached through the hole (2). If necessary turn the
cutter shaft with an Allen key (2.5 mm) and that way displace the upper
blade (3).
5 Remove dust and paper particles with a soft brush or a vacuum.
6 Remove all deposits at the cutter blades (3,4) with isopropyl alcohol and a
soft cloth.
7 Re-adjust the side plates and re-mount the safety covers.
Warning: Disconnect the printer from the electrical outlet.
Risk of injury. The cutter blades are sharp.
Note: When cutting through the label material instead of the label gap
remains of adhesive may accumulate on the blades. If operating in
backfeed mode, such remains of adhesive may be deposited on the drive
roller as well. Clean the drive roller and the cutter blades often.
