QuickLabel Systems pronto! 486 User Manual

1-8 Introduction & Installation
RS-232 serial interface
The RS-232 interface is operated via an RS-232 cable.
1 Connect computer and label printer with a suitable cable.
2 Secure cable connections with the screws found at the plugs.
3 Configure the RS-232 interface of the printer to match the settings of the
connected computer (see Interfaces on page 5-8).
If problems occur, contact the computer manufacturer for interface
assignments and note the pin assignments below.
Ethernet interface
To connect the label printer to a network jack, you will require a patch cable
with an RJ45 plug for 10 Base T or 100 Base T. For direct connection of the

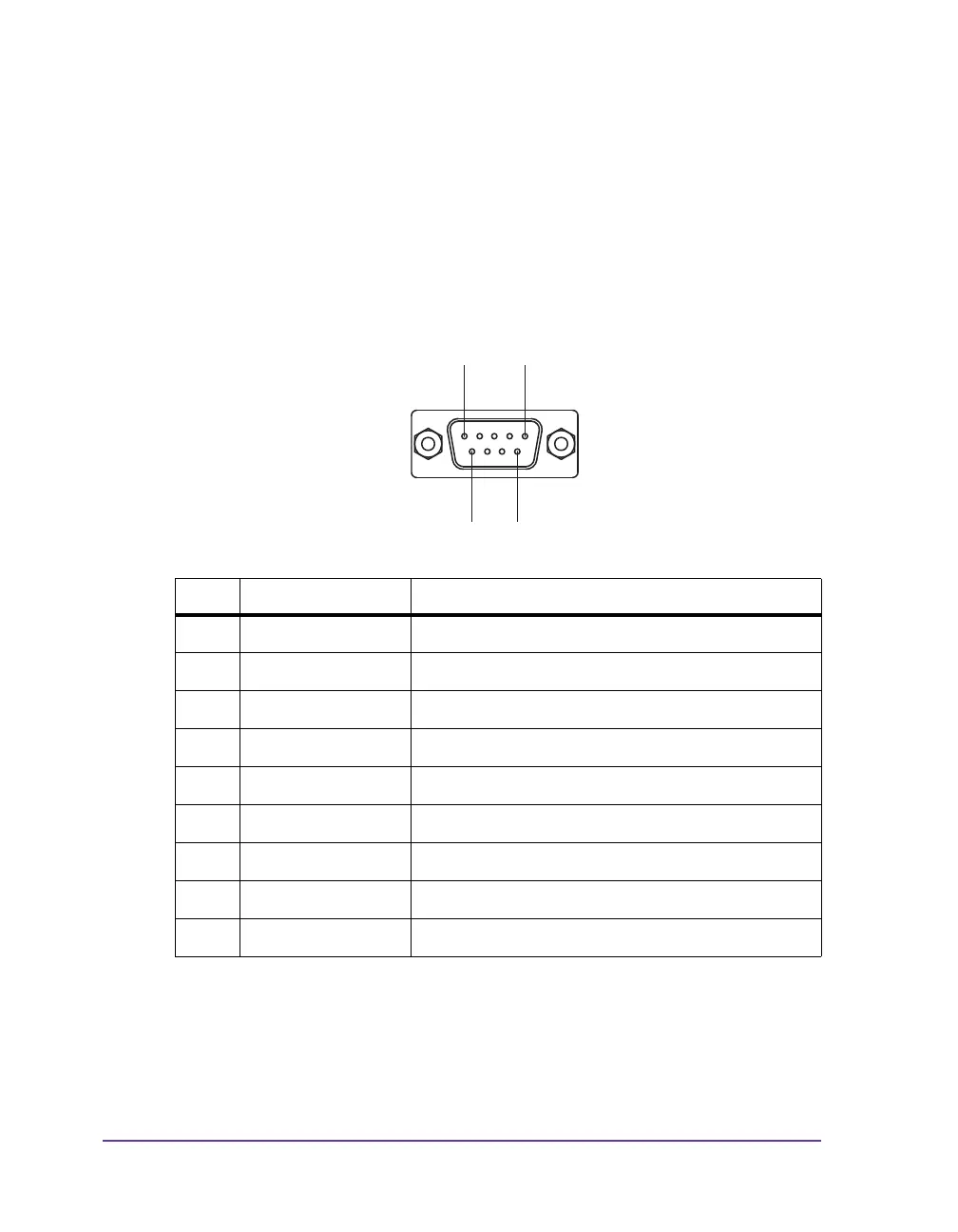

Pin Designation Function
1 CD Carrier Detect
2 TxD Transmit Data
3 RxD Receive Data
4 DTR Data Terminal Ready (not connected)
5 GND Ground
6 DSR Data Set Ready (not connected)
7 RTS Request To Send
8 CTS Clear To Send
9 RI Ring Indication (not connected)
Pin5 Pin1
Pin9 Pin6
