Laser Optics
G133 3-24
SM
18.

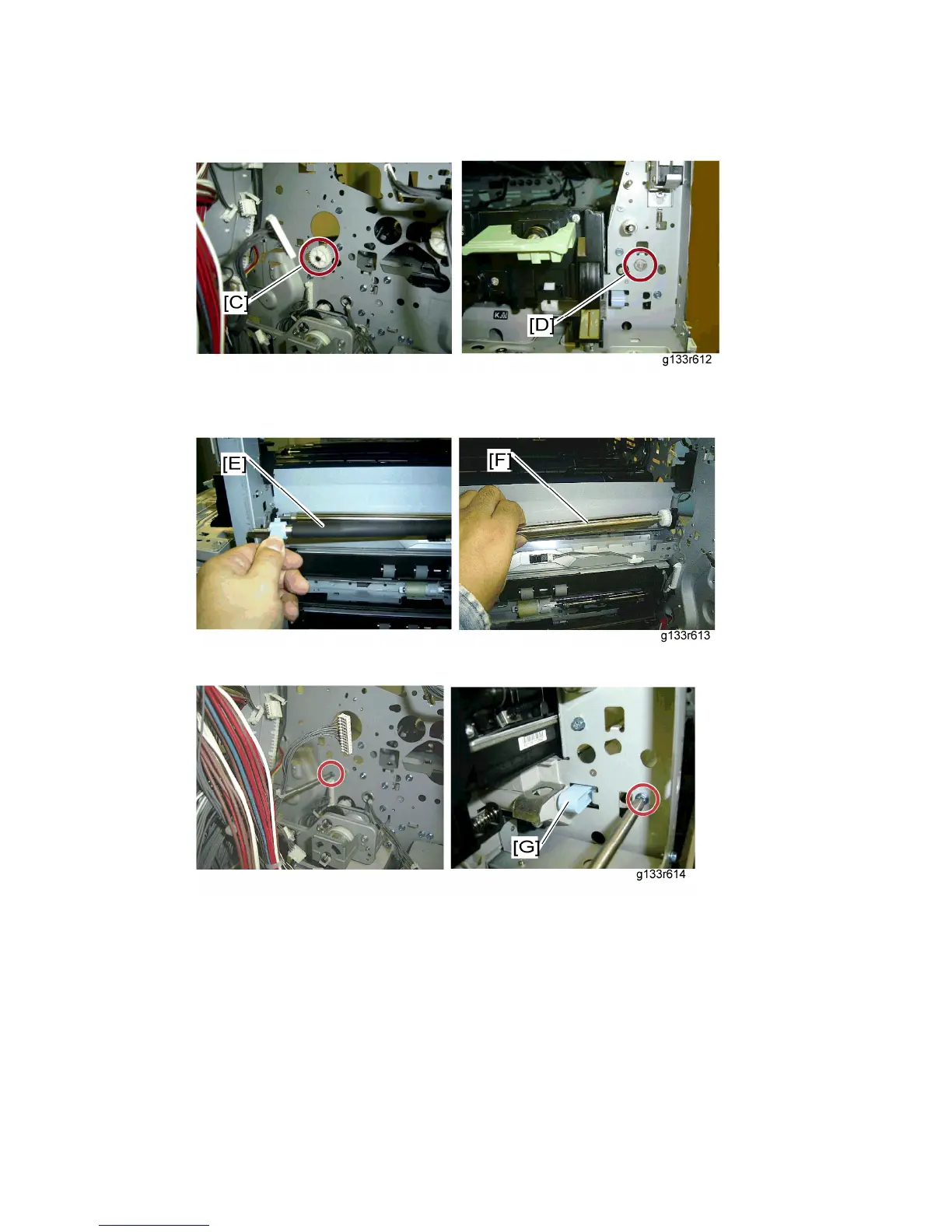

Remove the gear and bushing [C] from the rear fra
me (
x 1).
19.
Remove the bushing [D] from the front frame (
x 1).
20.
Registration rollers [E] and [F]
21.
Remove the paper dust case [G] and two
screws (at the front and rear frame each).
121
