Fusing
SM 3-85 G133
Replacement
Adjustment
When installing the paper exit fan
Make sure that the paper exit fan is installed with its decal facing the rear of the machine.

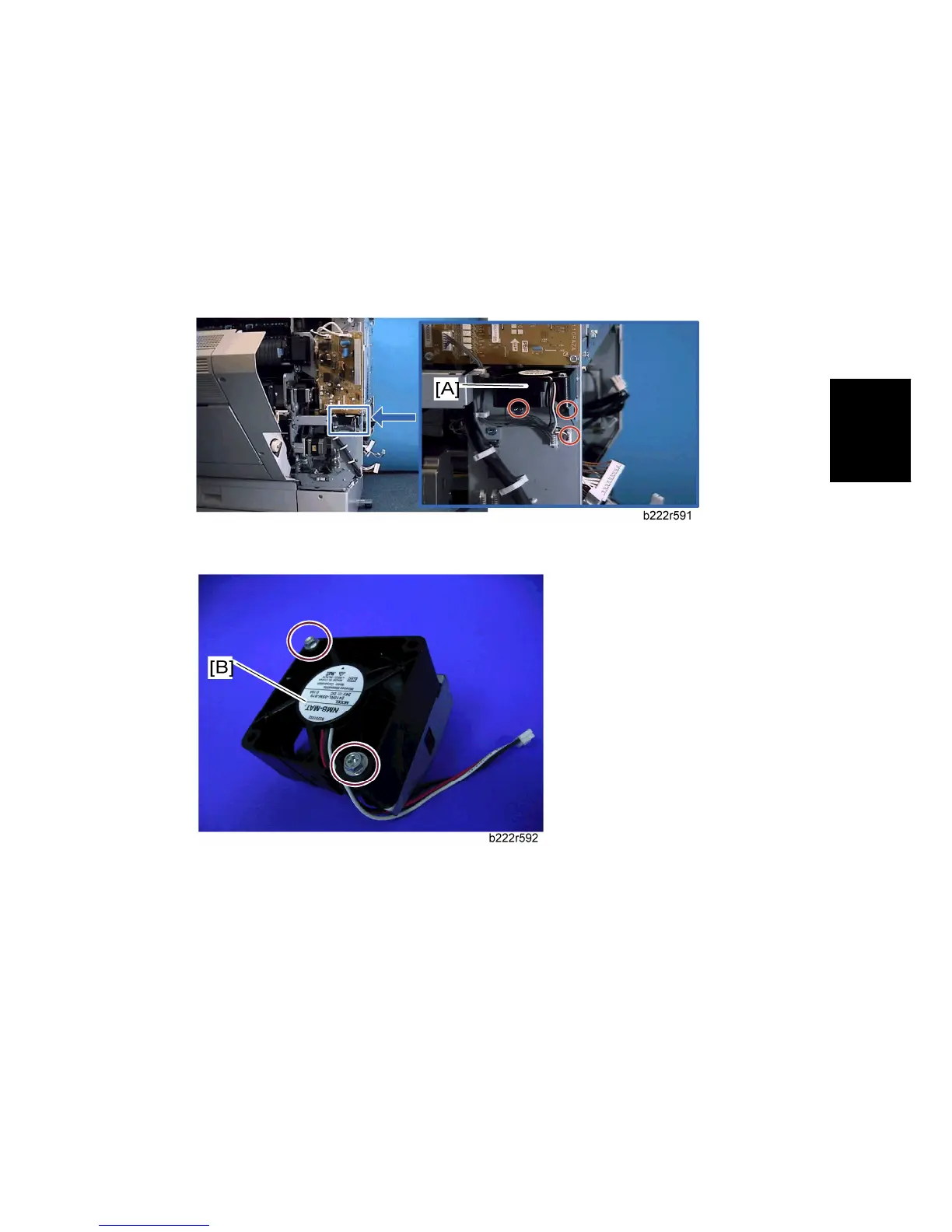

3.10.16 IH (INDUCTION HEATING) INVERTER FAN
1. Rear cover ( "p.3-3 "Rear Cover"")
2. Right rear cover ( "p.3-3 "Right Rear Cover"")
3. IH inverter fan bracket [A] ( x 2, x 1)
4. IH inverter fan [B] ( x 2)
When installing the IH inverter fan
Make sure that the IH inverter fan is installed with its decal facing the upper side of the
machine.
3.10.17 THERMOPILE
1. Open the right door.
2. Fusing unit ("p.3-3 "Fusing Unit"")
3. Top right cover ( "Top Right and Rear Cover")
To Next Page
