Punch Unit B702 (For B804/B805)
SM 67
B804/B805
Booklet
Finisher/
Finisher
B804/B80
5

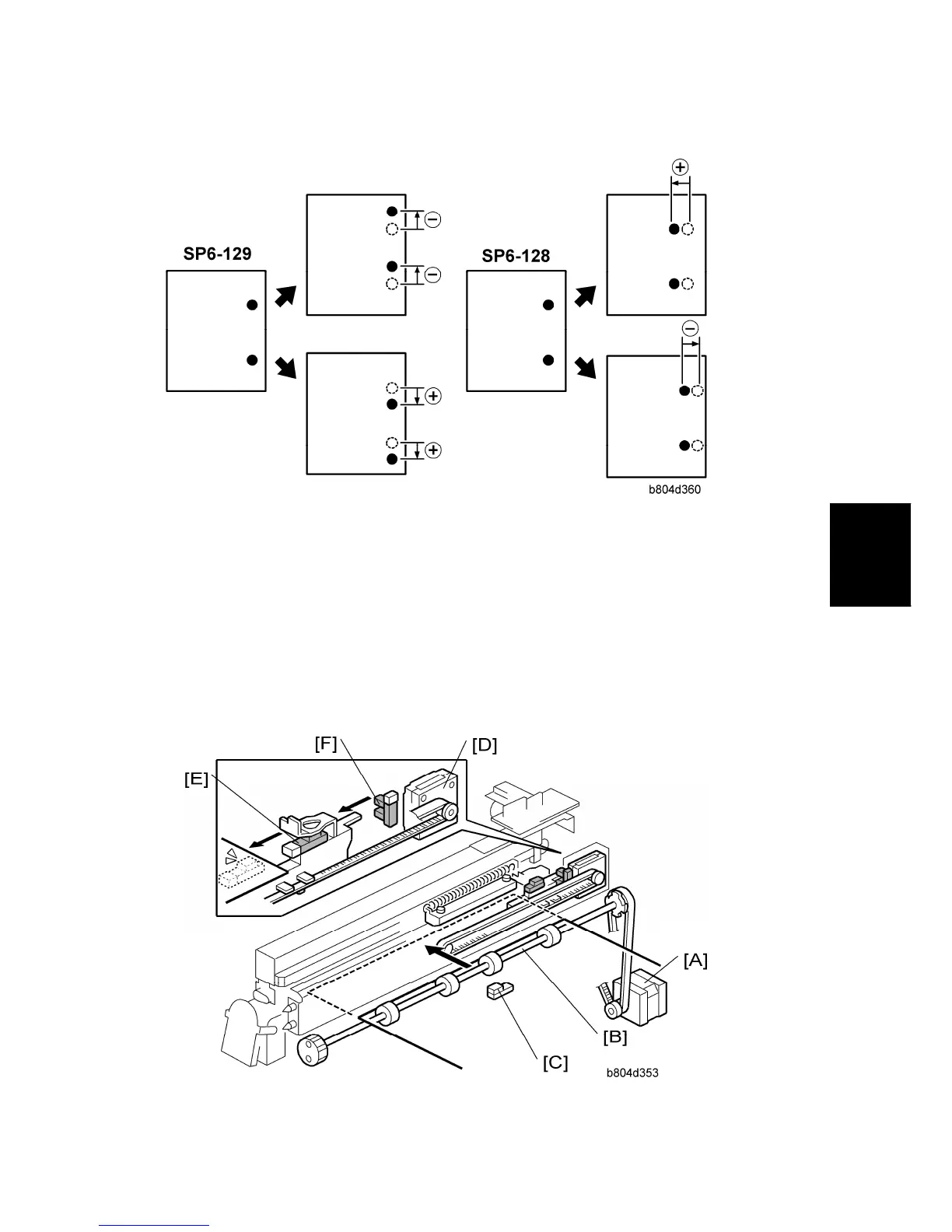

These SP codes adjust th
e punch hole alignment:
SP6-128
Adjusts the punch positions in
the direction of paper feed.
SP6-129
Adjusts the punch position perpendicu
lar to the direction of feed.
For more, see Section "Service T
ables".
2.8.2 PUNCH
MECHANISMS
