PCU (Photo Conductor Unit)
G133 6-30 SM
Drive

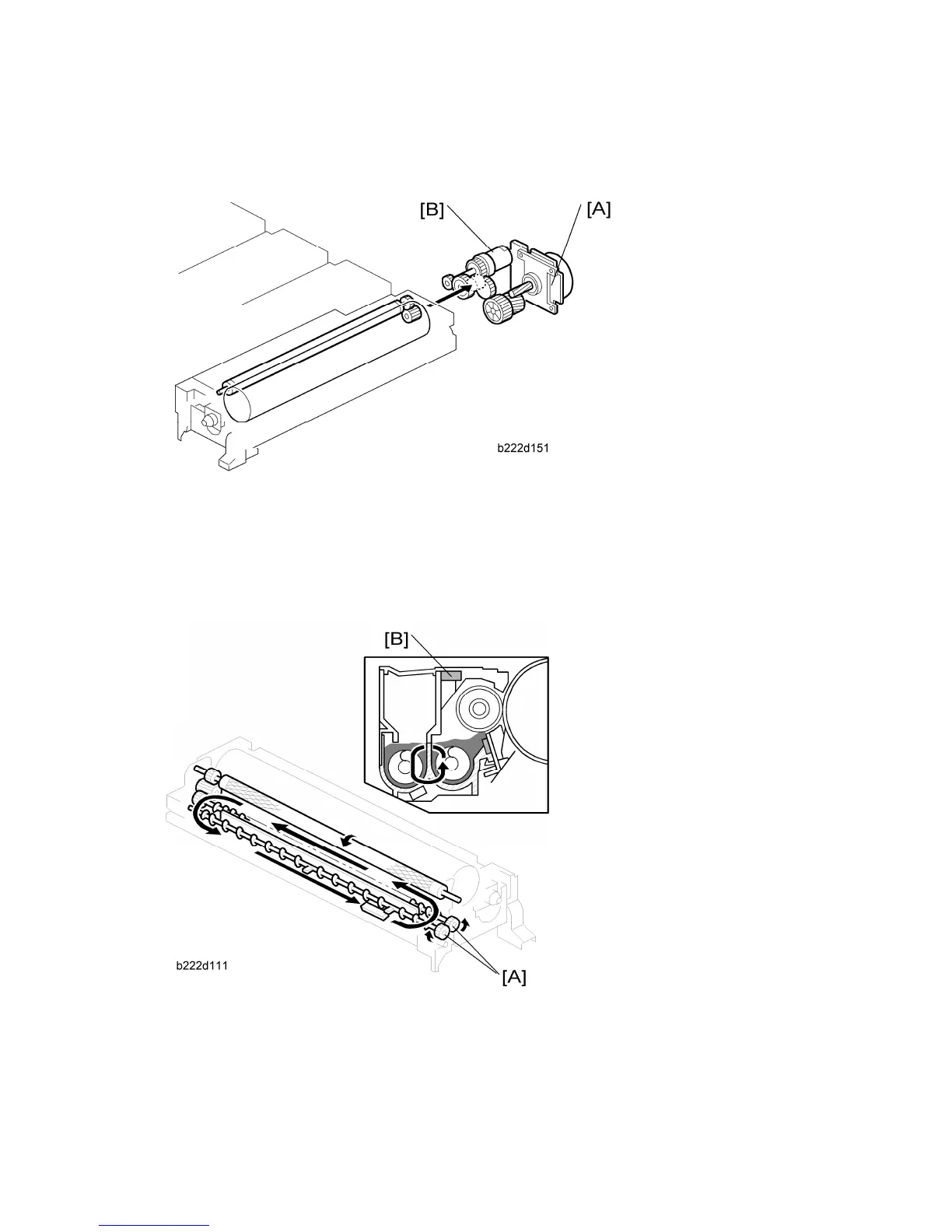

Each color (K, Y, M, C) has its own drum/development drive motor [A] and development
clutch [B]. Each drum/development motor drives the development roller through gears and
development clutch. The gear trains are shown in the diagram.
Developer Agitation
Two mixing augers [A] circulate the developer forward and backward to agitate the
developer.
This happens at the following times:
During process control self check
To Next Page
