SM 13
B793
B793
Booklet
Finisher
4.
Pull out and remove the st
aple folder unit [B] (
x 2).

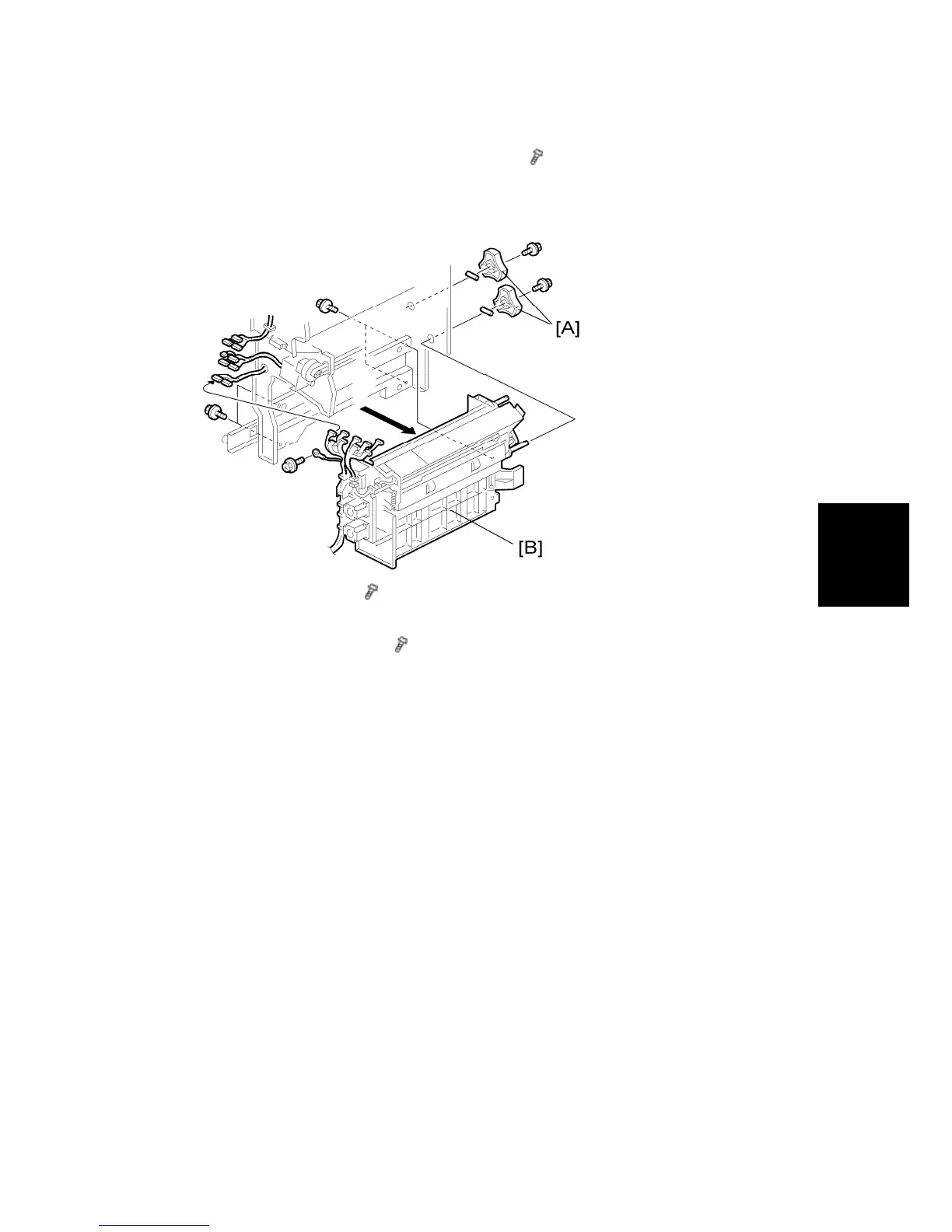

1.3.2 FOLDER
UNIT
1.
Remove the st
aple folder unit.
2.
Remove the knobs [A] (
x 1 each).
3. Disconnect
the
connectors.
4.
Remove the folder unit [B] (
x 4).
818
820
