Motors
SM 5 B801
B801
LCIT

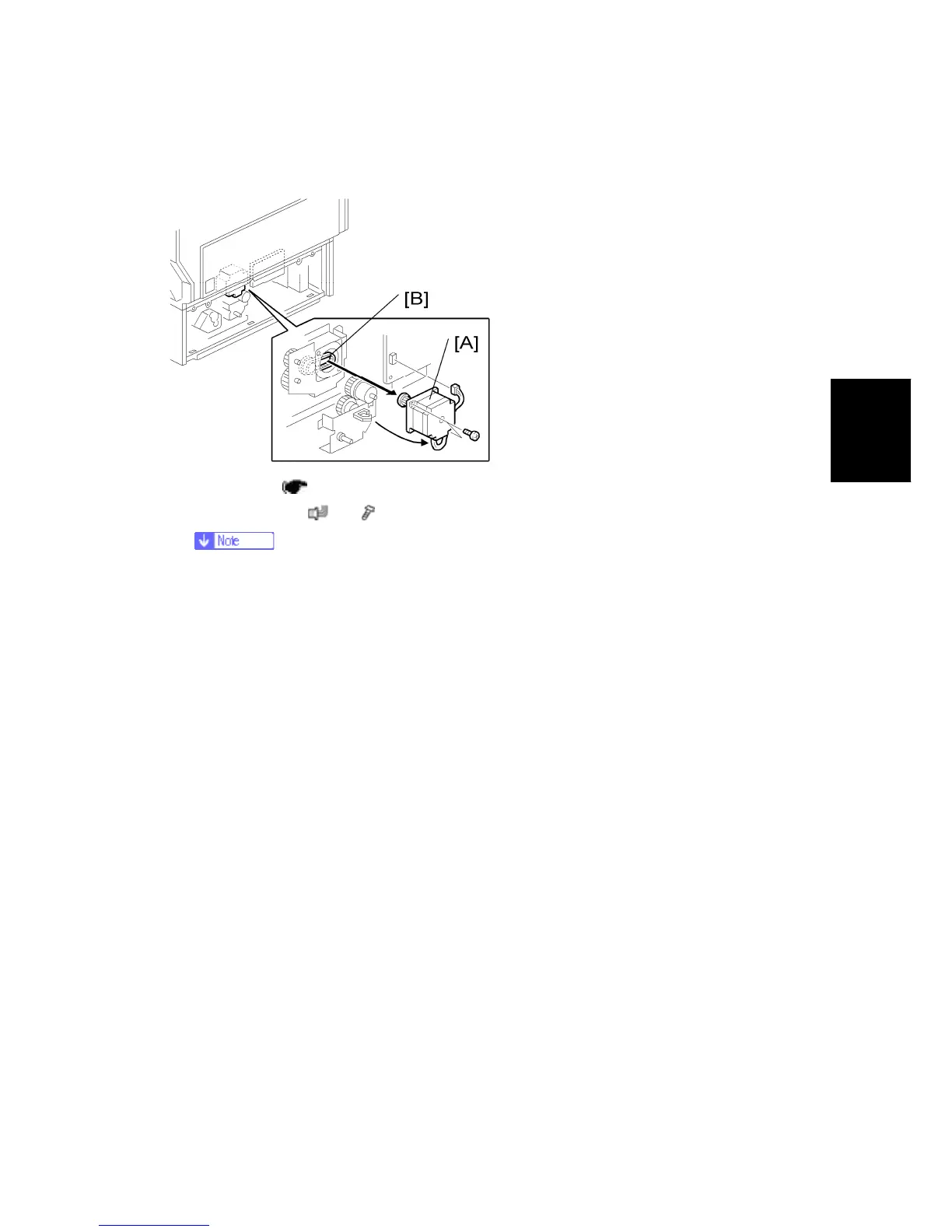

1.4.2 TRAY MOTOR
1. Rear cover (
"Tray Lift Motor")
2. Tray motor [A] (
x 1, x 2)
When installing the tray motor, make sure that the gear of the tray motor
holds the timing belt [B].
