Paper Feed
G133 3-92 SM
4. Paper overflow sensor [A]
5. Paper end feeler [B] and paper end sensor [C] (hook, x 1 each)
6. Vertical transport sensor bracket [D] ( x 1, = x 1)
7. Vertical transport sensor [E] ( x 1, hook)
8. Paper feed sensor bracket [F] ( x 1)
9. Paper feed sensor [G] ( x 1, hook)

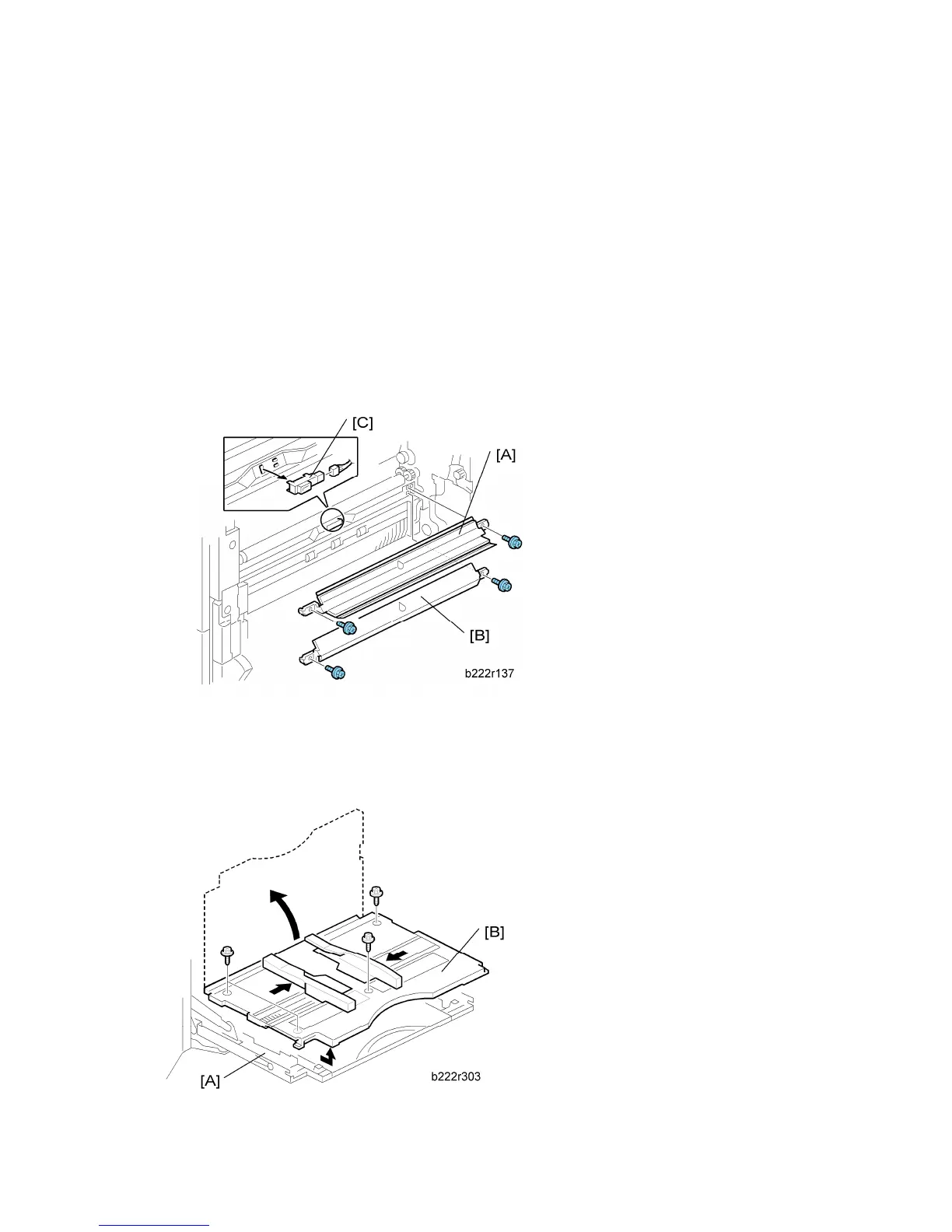

3.11.5 REGISTRATION SENSOR
1. Rear cover ( "p.3-3 "Rear Cover"")
2. Right rear cover ( "p.3-3 "Right Rear Cover"")
3. Paper guide plate 1 [A] and 2 [B] ( x 2 each)
4. Registration sensor [C] ( x 1, hook)
3.11.6 BY-PASS PAPER SIZE SENSOR SWITCH
