Tray Heater (Optional Tray)
SM 1-45 G133
Installation
For installing the tray heater in the B800 (Two-tray paper feed unit)
1. Remove the rear cover of the mainframe ( x 6).
2. Pull out the two trays from the optional paper feed unit.

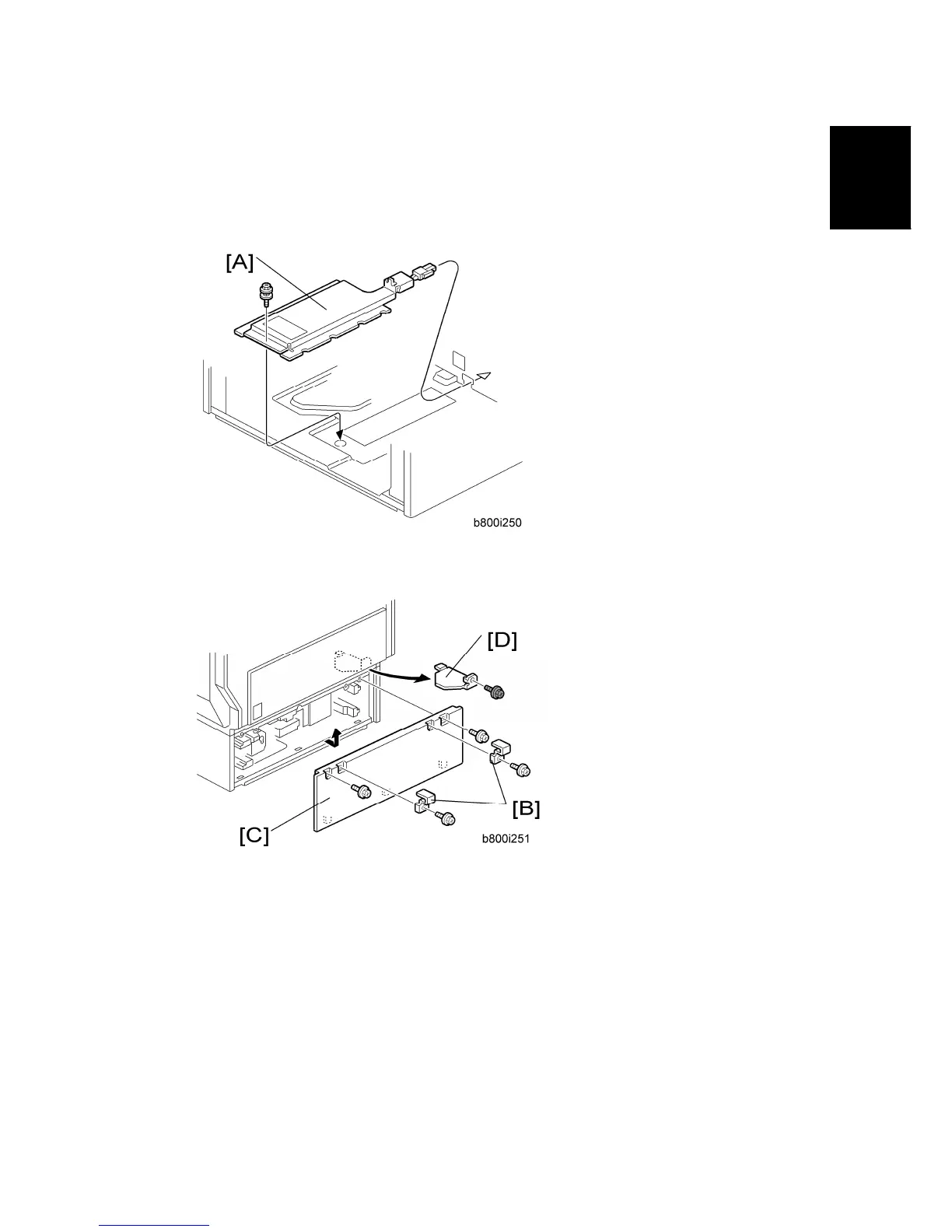

3. Install the tray heater [A] in the optional paper feed unit ( x 1).
4. Remove the two securing brackets [B] ( x 1 each), and then the rear cover [C] of the
optional paper feed unit ( x 2).
5. Remove the harness cover bracket [D] ( x 1).
