Fusing
G133 3-70
SM
8.

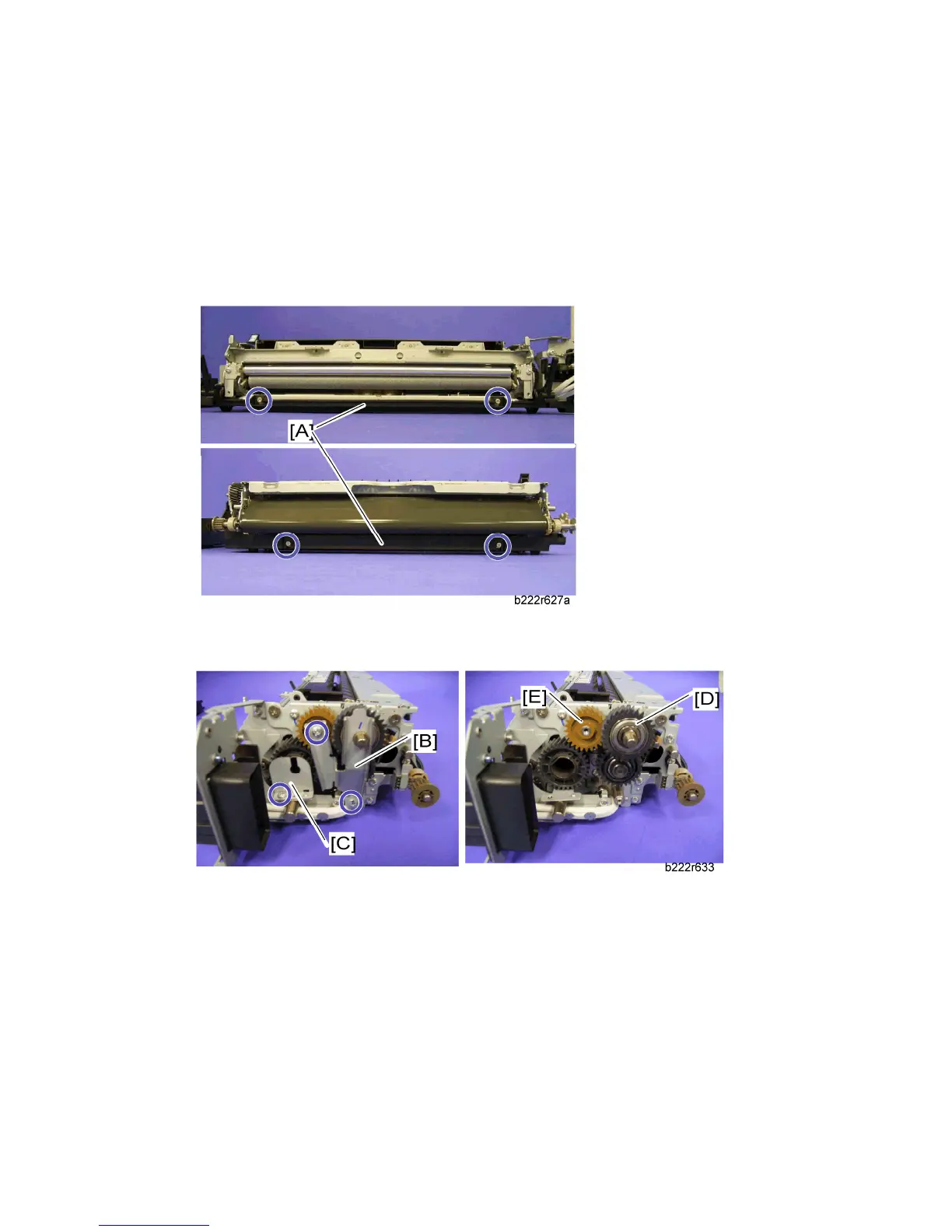

Fusing lamp [E]
3.10.3 PRESSURE
ROLLER
AND PRESSURE ROLLER
BEARING
1.
Fusing unit (
"p.3-3 "Fusing Unit"")
2.
Fusing right cover
, fusing upper cover (
"p.3-3 "Fusing Lamp"")
3.
Fusing bottom cover [A] (
x 4)
4.
Fusing lamp (
"p.3-3 "Fusing Lamp"")
5.
Gear holder bracket [B] (
x 2)
6.
Fusing lamp rear bracket [C] (
x 1)
7.
One-way clutch gear [D] (
x 1) and idle gear [E]
167
169
