Fusing
SM 3-71
G133
Repla
cement
Adjustment
8.

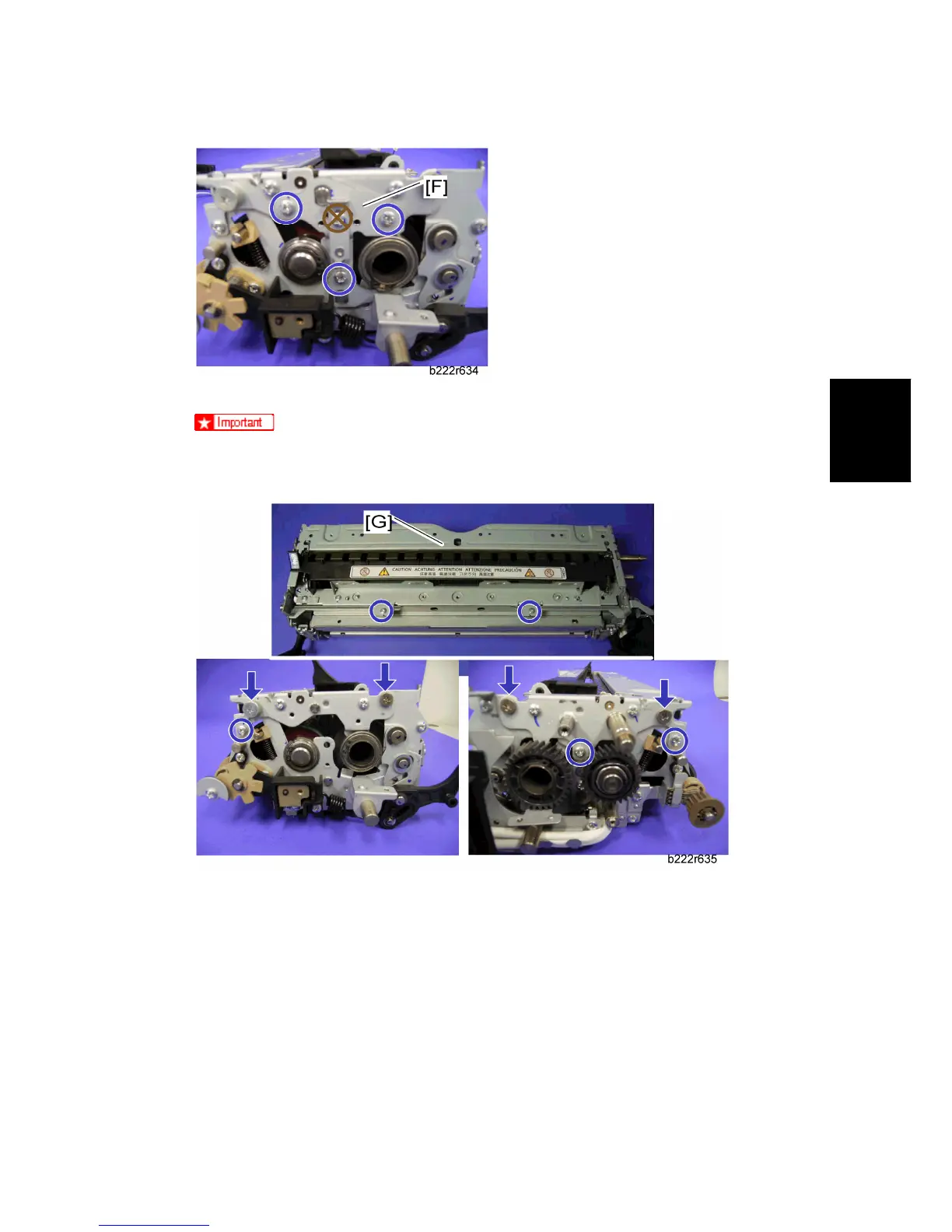

Pressure adjustment bra
cket [F] at the front side (
x 3)
Never remove the screw that is cove
red by the crossed-circle in the above
photo.
9.
Upper frame [G] (
x 5, stepped screw x 3, stud screw x 1)
168
170
