Image Creation
SM 3-33 G133
Replacement
Adjustment
1. Put a sheet of paper (A3/DLT) inside the machine.
2. Turn up the opening of the toner supply tube, and then remove the object that was
used to clip the opening of the toner supply tube.

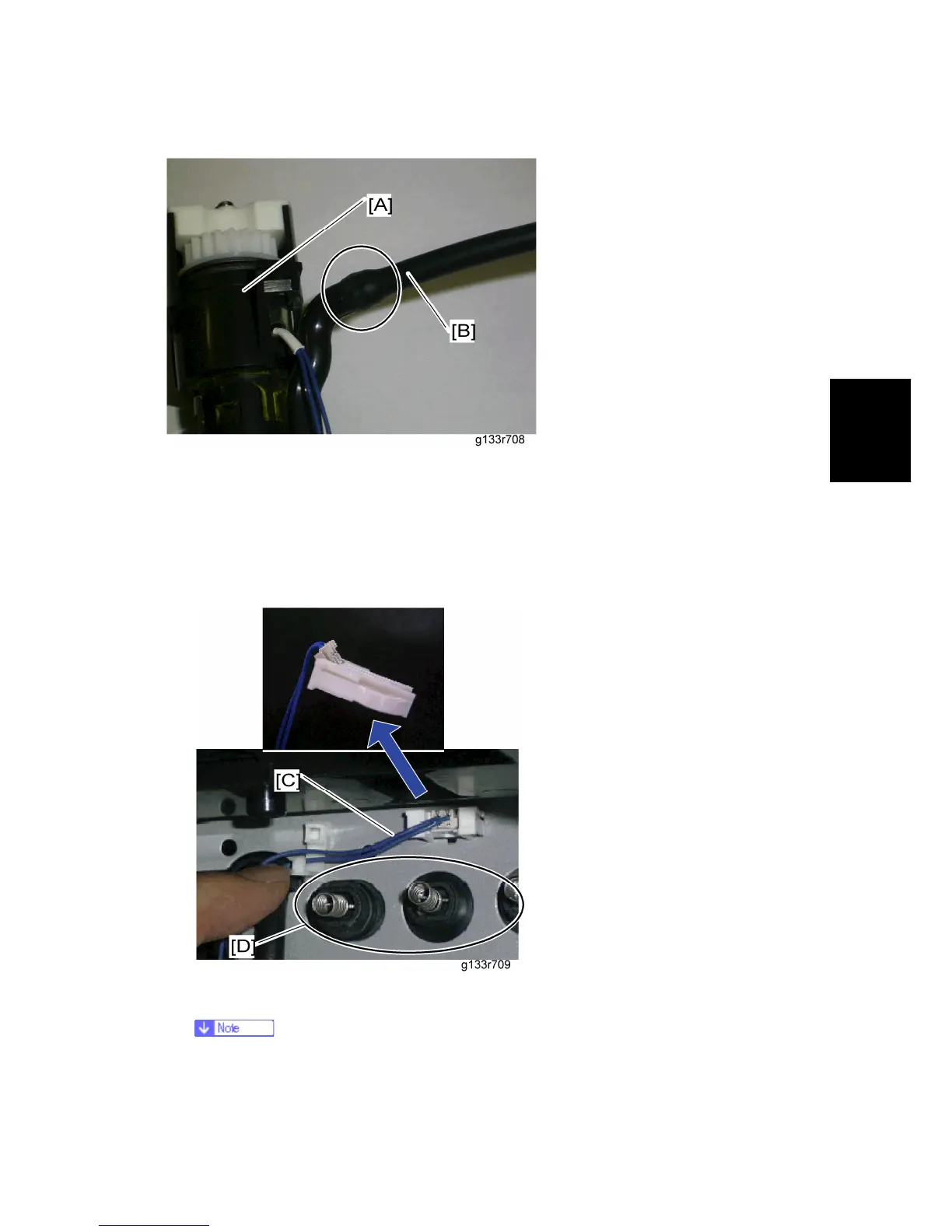

3. Insert the opening of the toner pump unit [A] into the opening of the toner supply tube
[B] as far as possible.
4. Connect the harness [C] to the connector of the machine.
On the above picture, the magnified picture of the connector shows the
easiest way to connect it.
To Next Page
