Image Transfer
SM 3-37 G133
Replacement
Adjustment
2. Open the front door
3. Open the drum positioning plate. ( "p.3-3 "PCU"")

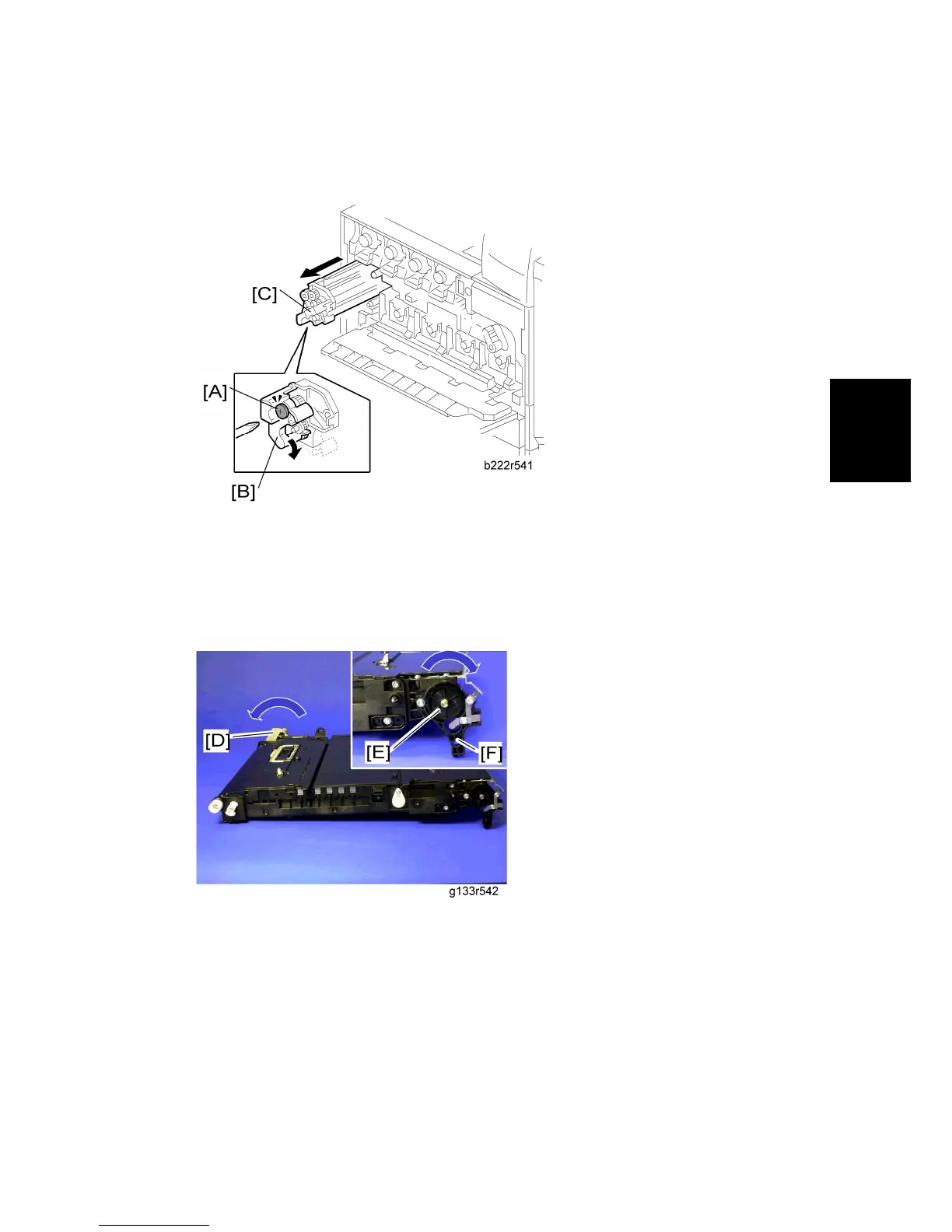

4. Loosen the screw [A].
5. Turn the lock lever [B] clockwise
6. Pull out the image transfer belt cleaning unit [C].
7. Image transfer belt unit ( "p.3-3 "Image Transfer Belt Unit"")
8. Turn the image transfer unit contact lover [D] counterclockwise (as seen from the rear).
9. Gear [E] (hook x 1)
10. Turn the gear cover [F] clockwise (as seen from the rear) ( x 1).
To Next Page
