Fusing
G133 3-78 SM

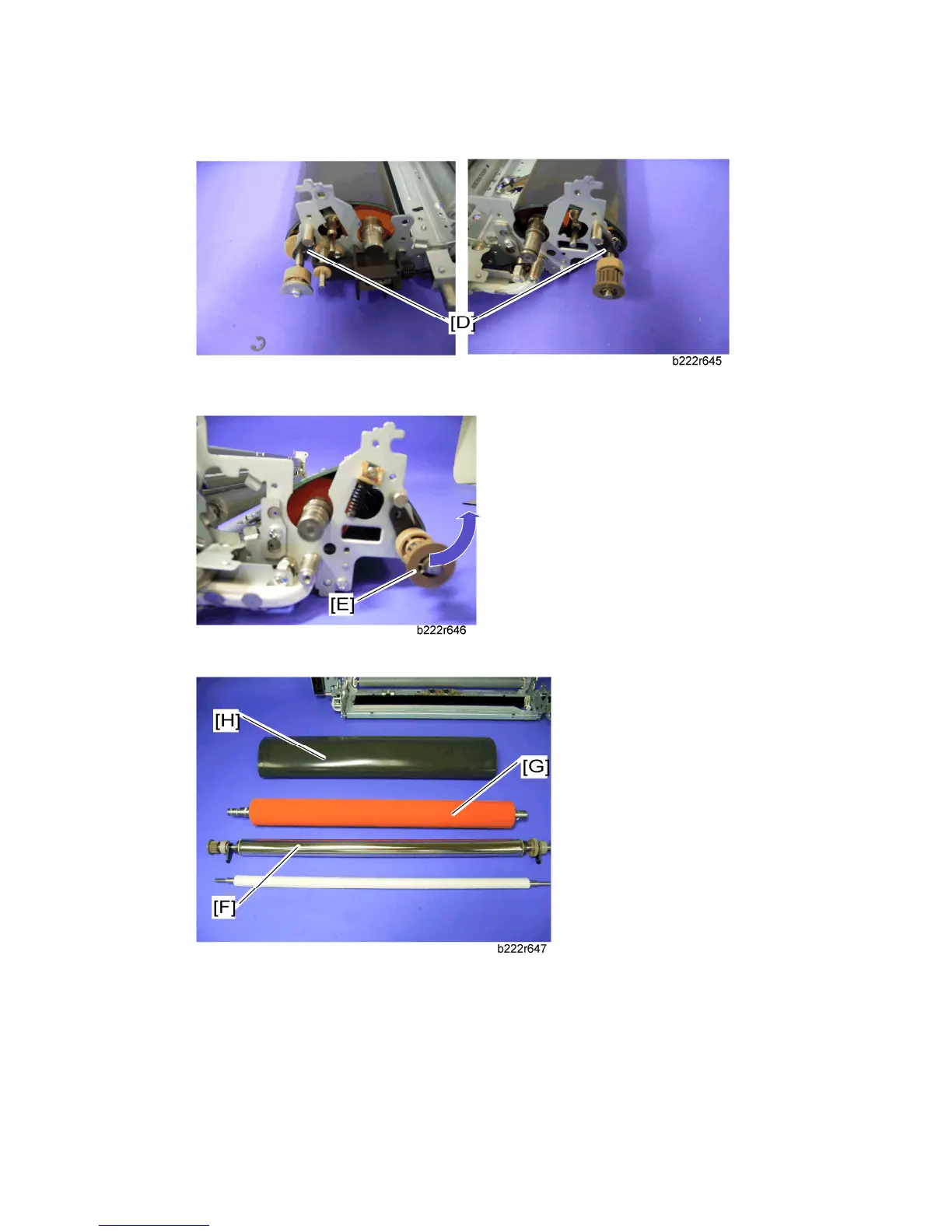

8. Slide the heating roller bushings [D] ( x 1 each).
9. Hold both edges of the heating roller [E] and lift it in the arrow direction.
10. Heating roller unit [F], fusing roller [G] and fusing belt [H]
