Bridge Unit (B227)
G133 1-20
SM
1.

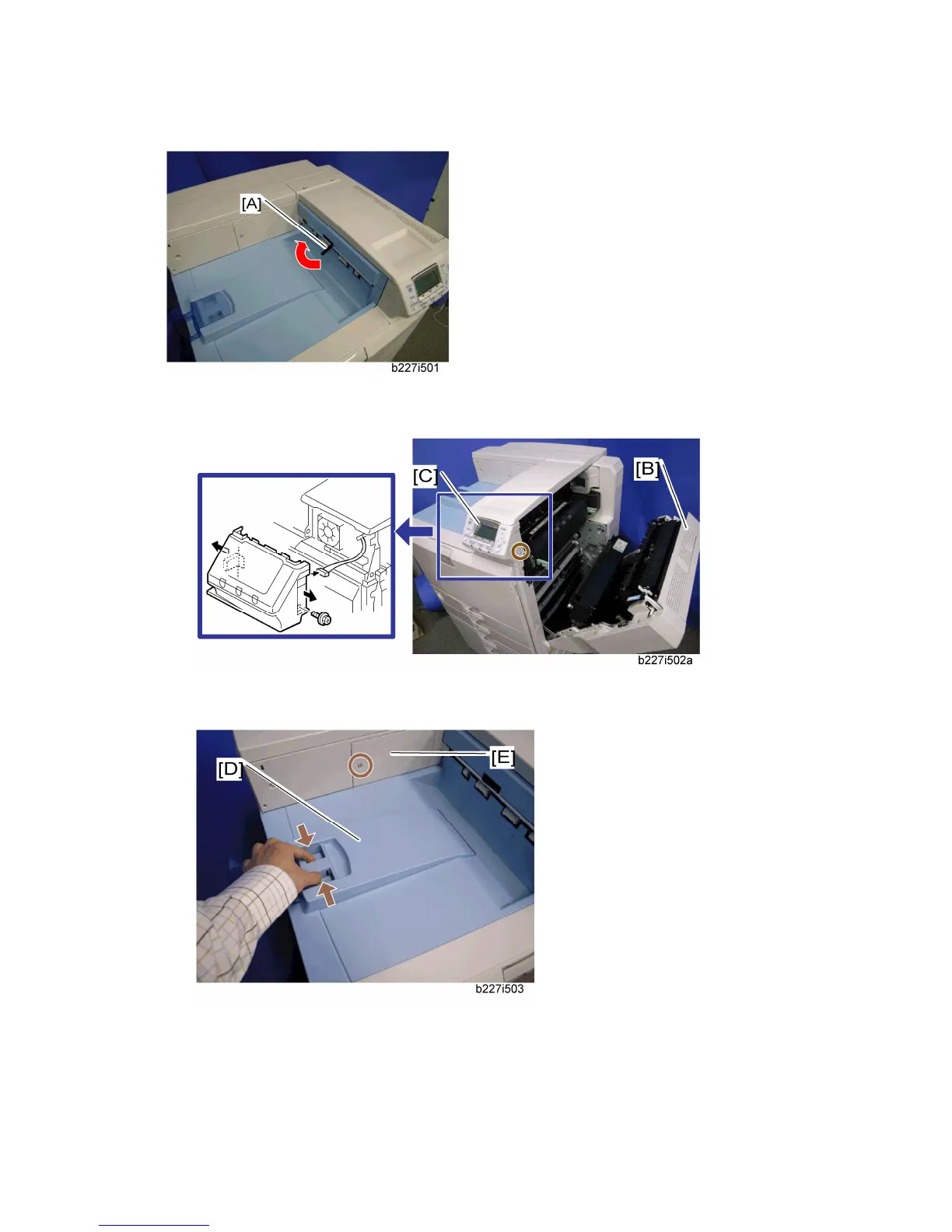

Remove all tapes.
2.
If the sensor feeler [A] is out, fold it into
the machine.
3.
Open the right door [B] of the machine.
4.
Remove the operation panel cover [C] (
x 1,
x 1, hook).
5.
Remove the inner tray [D].
6.
Remove the connector cover [E] (
x 1).
